CCTV Surveillance Systems

Protect your projects, safeguard your clients, and stay in control with high-performance CCTV Surveillance Systems designed to keep every site secure and every job running smoothly. Whether you’re managing a residential build, a commercial fit-out, or multiple active sites across Australia, the right surveillance setup gives you confidence, visibility, and peace of mind 24/7.

Secure Every Site with Confidence

Keep assets safe, monitor progress remotely, and deter threats before they escalate. Our CCTV solutions help you stay ahead of potential risks so your crews can focus on delivering quality work—without worrying about break-ins, vandalism, or equipment theft.

Why Contractors & Electricians Choose These Systems

Protect Valuable Tools & Materials – Reduce costly losses and prevent downtime caused by missing assets.
Monitor Multiple Locations – Check live footage from anywhere and stay updated on all active jobs.
Deter Theft & Vandalism – Clear, visible surveillance discourages unwanted activity and safeguards site integrity.
Back Up Evidence Easily – Capture high-resolution footage you can rely on when you need proof or insurance support.
Boost Workplace Safety & Compliance – Keep an eye on safety protocols and protect team members on-site.
Upgrade Client Trust – Offer smarter security solutions as part of your service and position your business as a safety-focused expert.

Smart Features That Work Hard for You

Our CCTV surveillance products deliver more than just monitoring — they give you real-time control and long-term peace of mind.

Live remote viewing
High-resolution night vision
Motion-activated recording
Weather-resistant outdoor options
Easy installation and setup
Scalable systems for future expansion

Whether you’re working on homes, apartments, offices, or industrial spaces, these systems scale with your needs and support fast deployment to keep projects secure from day one.

Build Trust & Security Into Every Project

Your clients choose you because you deliver quality. Strengthen that trust by offering reliable CCTV solutions that protect their investment, reinforce your professionalism, and enhance property security long after the job is complete.

Take Control of Site Safety Today

Lock in protection. Reduce risk. Win more confidence on every site. Shop our CCTV Surveillance Systems and secure your projects with smart, reliable technology built for today’s fast-moving electrical and construction environments.

Browse our CCTV range now and upgrade your site security with dependable solutions that work around the clock.

FAQs

What types of CCTV surveillance systems do you offer?

We supply wired, wireless, commercial-grade, and remote-view systems suitable for homes, commercial sites, and industrial facilities.

Are your CCTV systems easy to install?

Yes. Most systems support quick installation with minimal tools so you can get your site secure without delays.

Can I monitor my CCTV cameras remotely?

Absolutely. Many systems include smartphone and desktop viewing so you can check footage anytime, anywhere.

Do your systems work in low-light conditions?

Yes. Our cameras offer advanced night vision to ensure clear footage day or night.

Can these systems be expanded later?

Yes. Choose scalable kits so you can easily add additional cameras as your site or property needs grow.

Do you offer weather-resistant outdoor cameras?

Yes. We stock durable, weather-rated cameras designed to withstand harsh Australian conditions.

Ready to protect every project? Explore CCTV Surveillance Systems now and keep your security strong from start to finish.

Showing 129–144 of 477 results

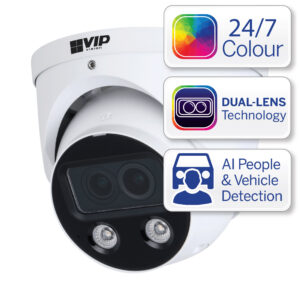

VIP Vision Ultimate AI Series 4.0MP Fixed Dual Lens VSIPU-4DIRG-IM
$635.20 inc GST
Specifications

Camera
Image Sensor
1/1.8″ + 1/1.8″ CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) ? 1520 (V)
RAM / ROM
1 GB/128 MB
Min Illumination
0.0002 lux / F1.0 (Colour)
S/N Ratio
>56 dB
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.0 Fixed Focal Dual Lens
Field of View
97?
Focus
4m Min. Focus Distance
DORI
Detect (25px/m)
58.2 m
Observe (63px/m)
23.3 m
Recognise (125px/m)
11.6 m
Identify (250px/m)
5.8 m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps) / 2.0MP (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 50fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265, H.264, H.264H, H.264B, MJPEG
Bit Rate
H.264: 32 kbps?8192 kbps H.265: 19 kbps?8192 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; G.723
Alarm Interface
1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Environmental
Power Supply
12 VDC (?30%); PoE (802.3af); ePoE
Power Consumption
<10.5W Operating Conditions -40?C ~ +60?C (Heater on), ?95% RH Ingress Protection IP67 Vandal Resistance IK10 Series Ultimate AI Series Camera Type Turret Housing Metal, Plastic Pan/Tilt/Rotation Pan: 0? ~ 360? Tilt: 0? ~ 78? Rotation: 0? ~ 360? ePoE Yes Dimensions ?122 mm ? 110.9 mm Net Weight 0.75 kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 156 mm Height 156 mm Depth 138 mm Weight 0.90 kg

VIP Vision Ultimate AI Series 4.0MP Fixed Dual Lens VSIPU-4DIRG-IM quantity

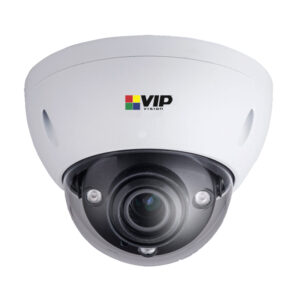

VIP Vision Ultimate AI Series 4.0MP Motorised Vandal Dome VSIPU-4DIRM-I2
$550.00 inc GST
Specifications

Camera
Image Sensor
1/1.8?? 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1GB / 4GB
Min Illumination
0.003 Lux / F1.8 (Color)
S/N Ratio
> 56dB
Infrared System
3 x Infrared LED, 40m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 115?~47?, Vertical: 62?~26?, Diagonal: 136?~56?
Focus
Auto Focus / 1.5m Min. Focus Distance
DORI
Detect (25px/m)
58m (wide) / 131m (tele)
Observe (63px/m)
23m (wide) / 52m (tele)
Recognise (125px/m)
12m (wide) / 26m (tele)
Identify (250px/m)
6m (wide) / 13m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 50fps)
Frame Rate (Third)
1080p (1 ~ 50fps)
Video Compression
H.265, H.264, H.264B, H.264H, MJPEG
Bit Rate
H.264: 32Kbps ~ 8192Kbps / H.265: 32Kbps ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; G.723
Alarm Interface
2 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12 VDC (?30%) / 24 VAC (?30%); PoE+ (802.3at) / ePoE
Power Consumption
<18W (Heater on) Operating Conditions -40?C ~ +60?C (Heater on), ?95% RH Ingress Protection IP67 Vandal Resistance IK10 Series Ultimate AI Series Camera Type Dome Housing Metal, Plastic Pan/Tilt/Rotation Pan: 0? ~ 355?, Tilt: 0? ~ 65?, Rotation: 0? ~ 355? ePoE Yes Dimensions ?159mm x 118mm Net Weight 0.95kg Other Category Network Surveillance Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 160 mm Height 160 mm Depth 119 mm Weight 1.22 kg

VIP Vision Ultimate AI Series 4.0MP Motorised Vandal Dome VSIPU-4DIRM-I2 quantity
VIP Vision Ultimate AI Series 64CH NVR with 8 x HDD Bays NVR64ULT-I
$4,531.60 inc GST
Specifications

General
Video Input
64 Channels
PoE
No
HDD Capacity
8
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF (Profile T; Profile S; Profile G); CGI; SDK. Supports RTSP, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from 32.0MP (6528 x 4896) to D1 (704 x 576)
Network Bandwidth (AI Disabled)
1024Mbps (incoming/recording), 800Mbps (outgoing)
Network Bandwidth (AI Enabled)
512Mbps (incoming/recording), 400Mbps outgoing
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG / MPEG4, Audio: G.711a / G.711u / PCM / G726
Playback Channels
Up to 16 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers
Decoding Capacity (AI Disabled)
8CH@8.0MP/25fps, 64CH@720P/25fps
Decoding Capacity (AI Enabled)
8CH@8.0MP/25fps, 64CH@720P/25fps
Backup Method
Portable hard drive / Burner / USB device / Network / eSATA
Interface
HDD
8 x SATA bays up to 16TB per bay, RAID 0/1/5/6/10, Hot swapping
Audio
1 channel input (RCA), 2 channel output (RCA)
Alarm Interface
16 channels input, 8 channels output
Alarm Types
General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
Alarm Actions
Begin record, take snapshot, camera external alarm output, audio, buzzer, NVR log, camera preset, email
Display Output
4 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
Display Split
1st Screen: 1/4/8/9/16/25/36/64, 2nd Screen: 1/4/8/9/16/25/36
Display Mode
Single Source (Mirrored): HDMI1@4K, HDMI2@4K, HDMI3@8K, HDMI4@1080p, VGA1@1080p, VGA2@1080p Multiple Sources (Up to 4 sources): HDMI1@4K + VGA1@1080p (mirror), HDMI2@4K + VGA2@1080p (mirror), HDMI3@4K, HDMI4@1080p
Network Input
2 x 2500Mbps Ethernet
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
2 x Front USB 2.0, 2 x Rear USB 3.0 / 1 x RS-485 A/B, 1 x RS-232, 1 x eSATA
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata
Supported Camera AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
4 channels (up to 12 face images per second, per channel)
Face Detection (By Camera)
64 channels
Face Recognition Capacity
NVR Supports up to 40 face databases and 300,000 face images
Face Recognition (By NVR)
4 channels (Face detection via NVR video stream analysis; Face recognition performed by NVR) 20 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
64 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 24 channels (10 rules per channel), SMD: 32 channels
Human/Vehicle Detection (By Camera)
IVS: 64 channels, SMD: 64 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
32 channels
Video Metadata Functions
People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
Video Metadata (By NVR)
8 channels
Video Metadata (By Camera)
32 channels
Environment
Power Supply
100?240 VAC / 50-60 Hz
Power Consumption
? 18W (without HDD)
Operating Environment
-10?C ~ +55?C / 10 ~ 93%RH
Rackmountable
Yes
Rackmount Units
2U
Dimensions
440mm ? 460mm ? 95mm
Weight
6.4kg (without HDD)
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
570 mm
Height
226 mm
Depth
570 mm
Weight
10.35 kg

VIP Vision Ultimate AI Series 64CH NVR with 8 x HDD Bays NVR64ULT-I quantity

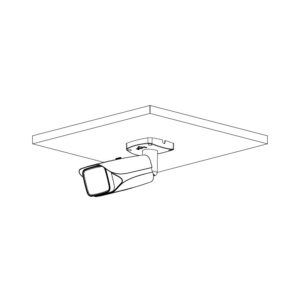

VIP Vision Ultimate AI Series 8.0MP Motorised Bullet VSIPU-8BIRM-I3
$708.40 inc GST
Specifications

Camera
Image Sensor
1/1.8?? 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1GB / 120MB
Min Illumination
0.004 Lux / F1.4 (Color)
S/N Ratio
> 56dB
Infrared System
4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12.0mm F1.2 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 114?~47?, Vertical: 59?~27?
Focus
Auto Focus / 1.2m Min. Focus Distance
DORI
Detect (25px/m)
86m (wide) / 196m (tele)
Observe (63px/m)
34.4m (wide) / 78.4m (tele)
Recognise (125px/m)
17.2m (wide) / 39.2m (tele)
Identify (250px/m)
8.6m (wide) / 19.6m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265, H.264, H.264B, H.264H, MJPEG
Bit Rate
H.264: 32Kbps ~ 8192Kbps / H.265: 32Kbps ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?) (Support 90?/270? with 4M resolution and lower)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression: G.711a; G.711Mu; G726; G.723
Alarm Interface
2 channel in: 5mA 5VDC / 21 channel out: 300mA 30VDC 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC (?30%) / PoE (802.3af) / ePoE
Power Consumption
<7.9W Operating Conditions -30?C ~ +60?C, ?95% RH Ingress Protection IP67 Vandal Resistance IK10 Series Ultimate AI Series Camera Type Bullet Housing Metal, Plastic Pan/Tilt/Rotation Pan: 0? ~ 360?, Tilt: 0? ~ 90?, Rotation: 0? ~ 360? ePoE Yes Dimensions 273.2mm x 95mm x 95mm Net Weight 1.51kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 31 mm Height 117 mm Depth 15 mm Weight 1.51 kg

VIP Vision Ultimate AI Series 8.0MP Motorised Bullet VSIPU-8BIRM-I3 quantity

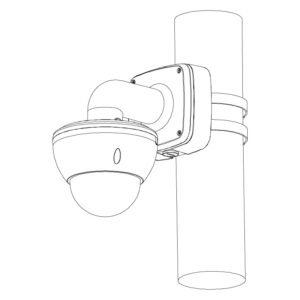

VIP Vision Ultimate AI Series 8.0MP Motorised Vandal Dome VSIPU-8DIRM-I2
$863.60 inc GST
Specifications

Camera
Image Sensor
1/1.8?? 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1GB / 128MB
Min Illumination
0.003 Lux / F1.2 (Color)
S/N Ratio
> 56dB
Infrared System
3 x Infrared LED, 40m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12.0mm F1.2 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 112?~47.5?, Vertical: 58?~26.6?, Diagonal: 137.5?~54.6?
Focus
Auto Focus / 1.75m Min. Focus Distance
DORI
Detect (25px/m)
88m (wide) / 187m (tele)
Observe (63px/m)
35m (wide) / 79m (tele)
Recognise (125px/m)
18m (wide) / 37m (tele)
Identify (250px/m)
9m (wide) / 19m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265, H.264, H.264B, H.264H, MJPEG
Bit Rate
H.264: 3kbps-20480 kbps / H.265: 3kbps-20480 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (terminal)/ 1 output (terminal) / Audio Compression – PCM; G.711a; G.711Mu; G.726; G.723
Alarm Interface
3 channel in: 5mA 3-5VDC/ 2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC
RS485
1 (Bit rate: 1200bps ~ 115200bps)
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12 VDC (?25%) / 24 VAC (?30%) / PoE (802.3af)/ePoE
Power Consumption
<15.9W (intelligent function) Operating Conditions -40?C ~ +60?C (Heater on), ?95% RH Ingress Protection IP67 Vandal Resistance IK10 Series Ultimate AI Series Camera Type Dome Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 355?, Tilt: 0? ~ 65?, Rotation: 0? ~ 355? ePoE Yes Dimensions ?158mm x 129.1mm Net Weight 1.10kg Other Category Network Surveillance Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 193 mm Height 204 mm Depth 191 mm Weight 1.20 kg

VIP Vision Ultimate AI Series 8.0MP Motorised Vandal Dome VSIPU-8DIRM-I2 quantity

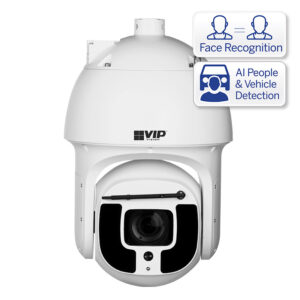

VIP Vision Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome VSIPPTZ-8IRU-I2
$4,919.20 inc GST
Specifications

Camera
Image Sensor
1/1.8″ 8.0MP STARVIS? CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
2GB / 8GB
Min Illumination
0.002 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio
> 55dB
Infrared System
10 x Infrared LED, 450m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
5.6 ~ 223mm F1.4 ~ F4.5 Motorised Lens with Auto Iris
Field of View
Horizontal: 64.0? ~ 2.0? (40x Optical Zoom)
Focus
Auto / Manual / 1m Min. Focus Distance
DORI
Detect (25px/m)
4400m
Observe (63px/m)
1740m
Recognise (125px/m)
880m
Identify (250px/m)
440m
PTZ
Pan / Tilt Range
Pan: 0 ~ 360? (endless) / Tilt: -30 ~ 90? / Auto-flip 180?
PTZ Speed
Preset: Pan: 240?/s; Tilt: 200?/s Manual: Pan: 200?/s; Tilt: 120?/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate
H.265: 256kbps ~10240Kbps – H.264: 512K ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra 2D/3D DNR
Picture Control
Flip 180?
Artificial Intelligence
Face Recognition
Supports database up to 10,000 face images
Face Capture
Support
Perimeter Protection
Tripwire rule / Intrusion area rule (Person & vehicle detection by AI)
Auto Tracking
Support
Metadata
Support
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned object / Missing object
Event Triggers
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
Up to 24 areas
Image Stabilisation
Electronic
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
1 Output (Vpp 75?)
Audio Interface
1 Input, 1 Output / Compression: G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2
Alarm Interface
7 Inputs / 2 Outputs
RS485
Yes
Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
24VAC / 3A (?25%) / Hi-PoE (IEEE802.3at)
Power Consumption
<48W Operating Conditions -40? ~ +70? C / Less than 90% RH Ingress Protection IP67 Vandal Resistance N/A Series Ultimate AI Series Camera Type PTZ Dome Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 360 ? ; Tilt: -30? ~ 90? ; Rotation: 0? ~ 360? ePoE No Dimensions ?262mm x 415.6mm Net Weight 10kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 262 mm Height 415 mm Depth 262 mm Weight 12.00 kg

VIP Vision Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome VSIPPTZ-8IRU-I2 quantity
VIP Vision Ultimate Series 2.0MP WDR Motorised Dome (Ultra Low Light) VSIP2MPVDIRLV3
$801.20 inc GST
Specifications

Camera
Image Sensor
1/1.9?? 2.0MP Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
1024MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
0.002 Lux/F1.53 (Color), 0 Lux/F1.53 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
3 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.1 ~ 16.4mm F1.53 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 104?~33?, Vertical: 57?~18? (4x Optical Zoom)
Focus
Auto Focus / 1m Min. Focus Distance
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
57m (wide) / 137m (tele)
Observe (63px/m)
23m (wide) / 55m (tele)
Recognise (125px/m)
11m (wide) / 27m (tele)
Identify (250px/m)
6m (wide) / 14m (tele)
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 50fps)
Frame Rate (Third)
1080p (1 ~ 50fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
H.265: 14 ~ 6144Kbps / H.264: 24 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / SSA
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?)
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Electronic Image Stabilisation, Defog, People Counting, Heat Map
Network
Ethernet
RJ-45 (10/1000 Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMPHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; SNMP; TLS
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
Video Tester Composite Output
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726
Alarm Interface
1 Input / 1 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE+ (802.3at) (Class 4)
Power Consumption
<18W Operating Conditions -40? ~ +60? C / Less than 95% RH Ingress Protection IP67 Weather Resistance Yes Vandal Resistance IK10 Series Ultimate Series Camera Type Dome Housing Metal, Polycarbonate Pan/Tilt/Rotation Pan: 0? ~ 355?; Tilt: 0? ~ 65? ; Rotation: 0? ~ 355? Tri-Axis Mounting Yes ePoE No Dimensions ?159mm x 118mm Net Weight 0.96kg Other Category Network Surveillance Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 193 mm Height 204 mm Depth 191 mm Weight 1.11 kg

VIP Vision Ultimate Series 2.0MP WDR Motorised Dome (Ultra Low Light) VSIP2MPVDIRLV3 quantity
VIP Vision Ultimate Series 8.0MP WDR Infrared Motorised Dome (+Heater) VSIPE8MPVDIRMH
$496.80 inc GST
Specifications

Camera
Image Sensor
1/2.5″ 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
No
Min Illumination
0.05 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
3 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12mm F1.6 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 110?~40?, Vertical: 58?~23? (4x Optical Zoom)
Focus
Auto Focus / 0.3m Min. Focus Distance
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
85m (wide) / 228m (tele)
Observe (63px/m)
34m (wide) / 91m (tele)
Recognise (125px/m)
17m (wide) / 46m (tele)
Identify (250px/m)
8.5m (wide) / 23m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 15fps) / 3.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265 / H.264
Bit Rate
H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / True WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?) (Resolution must be at 4.0MP or lower for corridor mode)
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Yes
Interface
Video Interface
Video Tester Composite Output
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726
Alarm Interface
1 Input / 1 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3at) (Class 4)
Power Consumption
<15W Operating Conditions -30? ~ +60? C / Less than 95% RH Ingress Protection IP67 Weather Resistance Yes Vandal Resistance IK10 Series Ultimate Series Camera Type Dome Housing Metal, Polycarbonate Pan/Tilt/Rotation Pan: 0? ~ 355?; Tilt: 0? ~ 65? ; Rotation: 0? ~ 355? Tri-Axis Mounting Yes ePoE Yes Dimensions ?159mm x 118mm Net Weight 0.96kg Other Category Network Surveillance Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 193 mm Height 204 mm Depth 191 mm Weight 1.11 kg

VIP Vision Ultimate Series 8.0MP WDR Infrared Motorised Dome (+Heater) VSIPE8MPVDIRMH quantity
VIP Vision Ultra HD Network Video Decoder (6 x HDMI Out) NVD-A6
$3,719.40 inc GST
Specifications

System
Processor
Internal Processor
Operating System
Embedded Linux
Performance
Video Format
H.264 / H.265 / SVAC / MJPEG / MPEG2 / MPEG4
Audio Format
PCM / G.711 / AAC
Video Decoding Capacity (Separate)
Port 1, 2 & 3: 1CH@32MP (25fps) / 3CH@12MP (15fps) / 4CH@8MP / 16CH@1080P / 36CH@720P / 64CH@D1 Port 4, 5 & 6: 1CH@32MP(25fps) / 3CH@12MP (15fps) / 4CH@8MP / 16CH@1080P / 36CH@720P / 64CH@D1
Video Decoding Capacity (Total)
2CH@32MP (25fps) / 6CH@12MP (15fps) / 8CH@8MP / 32CH@1080P / 72CH@720P / 128CH@D1
Decoding Resolution
32MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / 960H / D1 / HD1 / 2CIF / CIF / QCIF
Video Frame Rate
PAL: 1~25fps / NTSC: 1~30fps
Video Input
2 x HDMI, 2 x DVI-I
Video Output
6 x HDMI
Collection Resolution
3840 x 2160 / 1920 x 1080 / 1600 x 1200 / 1680 x 1050 and lower
Display Resolution
3840 ? 2160 / 2048 ? 1152 / 1920 ? 1200 / 1920 ? 1080 / 1280 ? 1024 / 1280 ? 720 / 1024 ? 768 (4 ports support 3840?2160, the remaining 2 ports support 2560 ? 1600
Display Split
1 / 4 / 6 / 8 / 9 / 16 / 25 / 36
Bi-directional Talk
1 Pair 3.5mm jack (2.0V Line in / 50mV Mic in / 10K?,2.0V / 16? out)
Alarm Input
4ch
Alarm Output
4ch relay out (30VDC 1A, 125VAC, 0.5A)
Communication Interface
2 RJ45 network port (10M/100M/1000M); 3 RS232(1 DB9, 2 RJ45); 1 RS485
Environment
Power Supply
100 ~ 240VAC, 50Hz-60Hz
Power Consumption
?70W
Operating Temperature
-10?C~+55?C, 10%~95%RH (86Kpa ~ 106Kpa)
Dimensions
440 x 408 x 70mm (1.5U)
Weight
4.83kg
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
510 mm
Height
220 mm
Depth
530 mm
Weight
7.00 kg

VIP Vision Ultra HD Network Video Decoder (6 x HDMI Out) NVD-A6 quantity

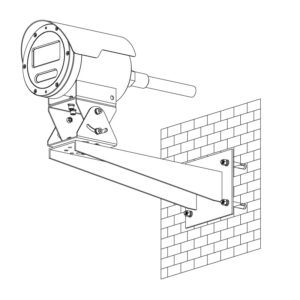

VIP Vision VIP Vision 4.0MP Explosion Rated Bullet VSIPEX-4B
$5,402.00 inc GST
Specifications

Camera
Image Sensor
1/2.8?? 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 128MB
Ultra Low Light Colour
N/A
Min Illumination
0.005 Lux/F1.5 (Colour), 0.0005 Lux/F1.5 (B&W), 0 Lux (IR on)
S/N Ratio
> 56dB
Infrared
Yes
Infrared System
3 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.7~13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 99~29?, Vertical: 53~16?
Focus
Fixed
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
64m (wide) / 210m (tele)
Observe (63px/m)
25m (wide) / 84m (tele)
Recognise (125px/m)
13m (wide) / 42m (tele)
Identify (250px/m)
6.4m (wide) / 21m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
2.0MP / 1080p (1 ~ 25fps)
Video Compression
AI H.264/265, Smart H.264+/265+, H.264/+, H.265/+, / MJPEG
Bit Rate
H.264 / H.265: 32 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?) (Support 90?/270? at 4.0MP resolution and lower)
IVS
IVS
Yes
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Heat Map
Network
Ethernet
RJ-45 (100/1000 Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Streaming Method
N/A
Max. User Access
20 (Total bandwidth: 80Mbps)
RTMP Support
Yes
Interface
Video Interface
N/A
Audio Interface
1 input / 1 output (RCA), Compression: G.711a; G.711Mu; G726; AAC
Alarm Interface
1 input (wet contact, 5mA 3~5VDC), 1 output (dry contact1000mA 30VDC, 500mA 50VAC)
RS485
1 port (1200~115,200bps baud rate)
Edge Storage
MicroSD Card (up to 512GB), NAS, Local PC, FTP, SFTP
Interoperability
ONVIF (Profile S; Profile G; Profile T); CGI; Milestone; Genetec
Environmental
Power Supply
12VDC / PoE
Power Consumption
Basic: 3.96W (12VDC); 4.95W (PoE), Maximum (H.265+intelligence on +WDR +IR on + auto focus): 9.2W (12VDC); 11.5W (PoE)
Operating Conditions
-30? ~ +60? C / Less than 95% RH
Ingress Protection
IP68
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Specialty Series
Camera Type
Bullet
Housing
Stainless Steel (SUS304, SUS316L optional)
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
N/A
ePoE
No
Dimensions
215mm x 149mm x 151mm
Net Weight
5kg (Net)
Other
Certifications
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80?C Db, IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80?C Db
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
173 mm
Height
121 mm
Depth
300 mm
Weight
3.35 kg

VIP Vision VIP Vision 4.0MP Explosion Rated Bullet VSIPEX-4B quantity
VIP Vision VIP Vision Mount Adapter VSIPEX-BU
$73.91 inc GST
Specifications

Dimensions
100.0 mm x 90.0 mm x 80.0 mm
Humidity
Less than 95% RH
Load Bearing Capacity
50.0 kg
Material
304 Stainless Steel
Operating Temperature
?40 ?C to 60 ?C (?40 ?F to 140 ?F)
Weight
0.50 kg
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
100 mm
Height
120 mm
Depth
3 mm
Weight
0.40 kg

VIP Vision VIP Vision Mount Adapter VSIPEX-BU quantity
VIP Vision VIP Vision Wall Mount VSIPEX-BW
$120.80 inc GST
Specifications

Dimensions
150.0 mm x 160.0 mm x 395.0 mm
Humidity
Less than 95% RH
Load Bearing Capacity
50.0 kg
Material
304 Stainless Steel
Operating Temperature
?40 ?C to 60 ?C (?40 ?F to 140 ?F)
Weight
1.60 kg
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
100 mm
Height
120 mm
Depth
3 mm
Weight
0.40 kg

VIP Vision VIP Vision Wall Mount VSIPEX-BW quantity
Watchguard Compact AI Series 8CH PoE NVR with 1 x HDD Bay NVR8COM-I
$366.80 inc GST
Specifications

General
Video Input
8 Channels
PoE
Yes
HDD Capacity
1
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from: 16.0MP (4920 x 3264) to D1 (704 x 480)
Network Bandwidth (AI Disabled)
256Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
180Mbps (incoming/recording/outgoing)
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
Playback Channels
8 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers
Decoding Capacity (AI Disabled)
8CH@4.0MP/25fps
Decoding Capacity (AI Enabled)
8CH@1080p/25fps
Backup Method
USB device / network
Interface
HDD
1 x SATA bays, up to 16TB
Audio
1 channel input (RCA), 1 channel output (RCA)
Alarm Interface
–
Alarm Types
Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email
Alarm Actions
Begin record, take snapshot, camera external alarm output, audio, buzzer, NVR log, camera preset, email
Display Output
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Display Split
1st screen: 1/4/8/9, 2nd screen: 1/4/8/9
Display Mode
HDMI1 + VGA1 (Mirror)
Network Input
1 x 1000Mbps Ethernet uplink, 8 x PoE 100Mbps (802.3af/at)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
1 x Front USB 2.0, 1 x Rear USB 2.0
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection
Supported Camera AI
Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp (Via PC web interface only)
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
1 channel (up to 12 face images per second, per channel)
Face Detection (By Camera)
8 channels
Face Recognition Capacity
NVR Supports up to 10 face databases and 200,000 face images
Face Recognition (By NVR)
1 channel (Face detection via NVR video stream analysis; Face recognition performed by NVR) 4 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
8 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 2 channels (10 rules per channel) SMD: 4 channels
Human/Vehicle Detection (By Camera)
IVS: 8 channels, SMD: 8 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
4 channels
Video Metadata Functions
–
Video Metadata (By NVR)
–
Video Metadata (By Camera)
–
Environment
Power Supply
53VDC / 1.812A
Power Consumption
NVR: <10W (without HDD) / PoE: Max 25.5W for single port, 72W total Operating Environment -10?C ~ +55?C / 10 ~ 93%RH Rackmountable no Rackmount Units - Dimensions 260mm x 232.7mm x 47.6mm Weight 0.92kg (without HDD) Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 380 mm Height 120 mm Depth 315 mm Weight 3.00 kg

Watchguard Compact AI Series 8CH PoE NVR with 1 x HDD Bay NVR8COM-I quantity
Watchguard Compact Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder CVR16COM3
$666.48 inc GST
Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux
Video Input
16 channel BNC
Audio In/Out
16 input / 1 output (RCA)
Two-way Talk
Reuse channel 1 audio input/output
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Analogue / IP
Coax Input Support
16 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)
IP Input Support
16 channels
IP Input Max. Resolution
8.0MP
IP Input Max. Bandwidth
128Mbps
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
HDMI: 3840 x 2160 to 1280 x 720 ; VGA: 1920 x 1080 to 1280 x 720
Display Split
1/4/8/9/16 (36 with IP extension mode enabled)
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Maximum Resolution
Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1~7fps), 6.0MP (1fps~10fps), 4.0MP (1~15fps), 1080p and lower (1~25fps)
Frame Rate (Sub)
960H (1 ~15fps)
Frame Rate (Third)
N/A
Video Compression
AI Coding / H.265+ / H.265 / H.264+ / H.264
Bit Rate
32Kbps ~ 6144Kbps Per Channel
Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Video Loss, Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
AI Functions
AI Functions
Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
Face Recognition
Performance (Face Recognition)
Max. 12 pictures per second, 2 channel video stream only supports analog cameras (Performance varies depending on camera and resolution)
Stranger Mode
Detect strangers face (not in database)
AI Search (Face Recognition)
Up to 8 target face images at the same time
Database Management
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application
Each database can be applied to video channels independently
Trigger Events (Face Recognition)
Recording, PTZ, tour, alarm, push video notification, email notification, FTP upload, snapshot, internal buzzer, screen tip overlay, and voice prompt
Perimeter Protection
Performance (Perimeter Protection)
2 channels, 10 IVS rules for each channel (advanced) ; 8 channels, 10 IVS for each channel (general)
AI Search (Perimeter Protection)
Search by target classification (Human, Vehicle)
Object Classification (Perimeter Protection)
Human / vehicle secondary recognition for tripwire and intrusion
Smart Motion Detection (SMD+)
Performance (SMD+)
16 Channels
AI Search (SMD+)
Search by target classification (Human, Vehicle)
Features
Alarm Input / Output
16 channel input / 3 relay output
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 ? 18), Video Loss, Tampering and Diagnosis
Playback Sync
1/4/9/16
Search Modes
Time /Date, Alarm, Motion detection and Exact search (to the second), smart search
Backup Modes
USB Device / Network
Network
Ethernet
1x RJ-45 port (1000MB)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices
Storage
Internal HDD
1 x SATA port, up to 16TB, max. 16TB HDD capacity
USB Interface
2 x USB ports (1 x USB 2.0 , 1 x USB 3.0)
Auxiliary Inputs
1 x RS485 port
Environment
Power Supply
12VDC / 3A
Power Consumption
<15W (without HDD) Operating Environment -10?C ~ 55?C / 10% ~ 90% RH Rackmountable No Rackmount Units N/A Dimensions 325mm x 257mm x 55mm (1U) Weight 1.5kg (without HDD) Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 117 mm Height 308 mm Depth 372 mm Weight 2.20 kg

Watchguard Compact Series 16 Channel 8.0MP HDCVI AI Digital Video Recorder CVR16COM3 quantity
Watchguard Compact Series 8 Channel 8.0MP HDCVI AI Digital Video Recorder CVR8COM3
$365.44 inc GST
Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux
Video Input
8 channel BNC
Audio In/Out
1 input / 1 output (RCA)
Two-way Talk
Reuse channel 1 audio input/output
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Analogue / IP
Coax Input Support
8 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)
IP Input Support
8 channels
IP Input Max. Resolution
8.0MP
IP Input Max. Bandwidth
128Mbps
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
HDMI: 3840 x 2160 to 1280 x 720 ; VGA: 1920 x 1080 to 1280 x 720
Display Split
1/4/8/9 (16 with IP extension mode enabled)
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Maximum Resolution
Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1~7fps), 6.0MP (1fps~10fps), 4.0MP (1~15fps), 1080p and lower (1~25fps)
Frame Rate (Sub)
960H (1 ~15fps)
Frame Rate (Third)
N/A
Video Compression
AI Coding / H.265+ / H.265 / H.264+ / H.264
Bit Rate
32Kbps ~ 6144Kbps Per Channel
Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Video Loss, Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
AI Functions
AI Functions
Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
Face Recognition
Performance (Face Recognition)
Max. 12 pictures per second, 2 channel video stream only supports analog cameras (Performance varies depending on camera and resolution)
Stranger Mode
Detect strangers face (not in database)
AI Search (Face Recognition)
Up to 8 target face images at the same time
Database Management
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application
Each database can be applied to video channels independently
Trigger Events (Face Recognition)
Recording, PTZ, tour, alarm, push video notification, email notification, FTP upload, snapshot, internal buzzer, screen tip overlay, and voice prompt
Perimeter Protection
Performance (Perimeter Protection)
2 channels, 10 IVS rules for each channel (advanced) ; 8 channels, 10 IVS for each channel (general)
AI Search (Perimeter Protection)
Search by target classification (Human, Vehicle)
Object Classification (Perimeter Protection)
Human / vehicle secondary recognition for tripwire and intrusion
Smart Motion Detection (SMD+)
Performance (SMD+)
8 Channels
AI Search (SMD+)
Search by target classification (Human, Vehicle)
Features
Alarm Input / Output
N/A
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 ? 18), Video Loss, Tampering and Diagnosis
Playback Sync
1/4/9
Search Modes
Time /Date, Alarm, Motion detection and Exact search (to the second), smart search
Backup Modes
USB Device / Network
Network
Ethernet
1x RJ-45 port (1000MB)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices
Storage
Internal HDD
1 x SATA port, up to 16TB, max. 16TB HDD capacity
USB Interface
2 x USB ports (1 x USB 2.0 , 1 x USB 3.0)
Auxiliary Inputs
1 x RS485 port (for PTZ control)
Environment
Power Supply
12VDC / 2A
Power Consumption
<10W Operating Environment -10?C ~ 55?C / 10% ~ 90% RH Rackmountable No Rackmount Units N/A Dimensions 260mm x 238mm x 48mm (1U) Weight 1.0kg (without HDD) Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 333 mm Height 315 mm Depth 89 mm Weight 2.10 kg

Watchguard Compact Series 8 Channel 8.0MP HDCVI AI Digital Video Recorder CVR8COM3 quantity

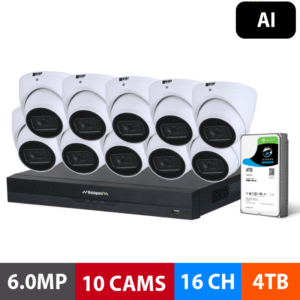

Watchguard G-Series: 10 Camera 6.0MP AI Surveillance Kit (4TB) NVRKIT-G1664-10C
$2,711.84 inc GST
Specifications

General
Series
G Series
Camera Quantity
10 Cameras
Camera Type
Fixed Lens
Max. Resolution
6.0MP
AI
Yes
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
400 mm
Height
500 mm
Depth
450 mm
Weight
12.00 kg

Watchguard G-Series: 10 Camera 6.0MP AI Surveillance Kit (4TB) NVRKIT-G1664-10C quantity
