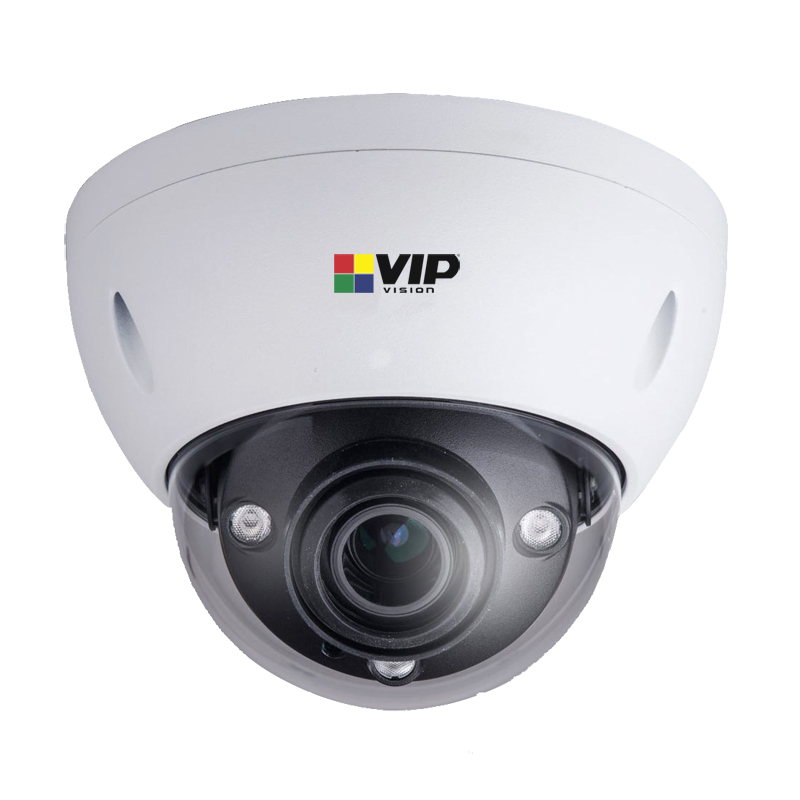

VIP Vision Ultimate Series 8.0MP WDR Infrared Motorised Dome (+Heater) VSIPE8MPVDIRMH

Specifications

Camera
Image Sensor
1/2.5″ 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
No
Min Illumination
0.05 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
3 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12mm F1.6 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 110?~40?, Vertical: 58?~23? (4x Optical Zoom)
Focus
Auto Focus / 0.3m Min. Focus Distance
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
85m (wide) / 228m (tele)
Observe (63px/m)
34m (wide) / 91m (tele)
Recognise (125px/m)
17m (wide) / 46m (tele)
Identify (250px/m)
8.5m (wide) / 23m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 15fps) / 3.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265 / H.264
Bit Rate
H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / True WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?) (Resolution must be at 4.0MP or lower for corridor mode)
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Yes
Interface
Video Interface
Video Tester Composite Output
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726
Alarm Interface
1 Input / 1 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3at) (Class 4)
Power Consumption

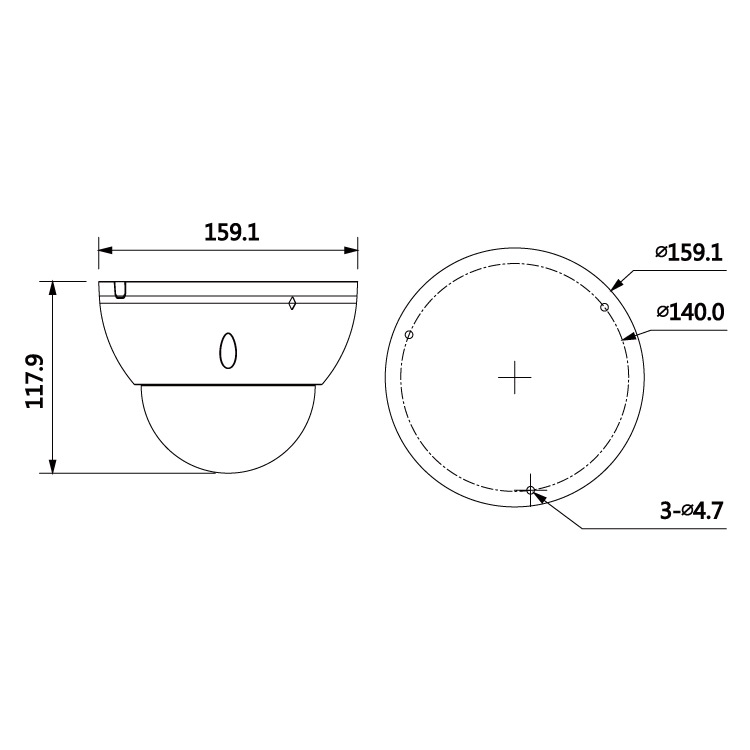

<15W Operating Conditions -30? ~ +60? C / Less than 95% RH Ingress Protection IP67 Weather Resistance Yes Vandal Resistance IK10 Series Ultimate Series Camera Type Dome Housing Metal, Polycarbonate Pan/Tilt/Rotation Pan: 0? ~ 355?; Tilt: 0? ~ 65? ; Rotation: 0? ~ 355? Tri-Axis Mounting Yes ePoE Yes Dimensions ?159mm x 118mm Net Weight 0.96kg Other Category Network Surveillance Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 193 mm Height 204 mm Depth 191 mm Weight 1.11 kg
