Cameras & Reversing Aids

Specifications

General
Image Sensor
1/2.7? 2.0 Megapixel CMOS
Max. Resolution
1080p Full HD
Effective Pixels
1920 (H) x 1080 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.8mm F2.0 Fixed Lens
Lens Type
Fixed
Angle of View
117? (H), 63? (V), 135? (D)
Focus
Fixed / 0.5m Min. Focus Distance
Minimum Illumination
0.02 Lux at F2.0 (Colour)
Electronic Shutter
1/25 ~ 1/100000s
Day/Night
Auto (ICR) / Manual
Infrared Range
N/A
White Balance
Auto / Manual
Noise Reduction
2D
Gain Control
Auto
Lighting Compensation
BLC / HLC / DWDR
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
40m
Observe (63px/m)
16m
Recognise (125px/m)
8m
Identify (250px/m)
4m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate
25fps (1080p and lower)
Transmission Distance
3m / 6m / 12m / 18m heavy duty cables available
Interface
Audio Input
N/A
Alarm Interface
N/A
Video Output
1 x BNC HDCVI/CVBS/AHD/TVI switchable video output (aviation connector)
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
Synchronisation
N/A
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Mobile Series
Housing
Metal
Camera Type
Flush Bullet
Tri-Axis Mounting
No
Power Input
12VDC
Power Consumption
<1.1W
Dimensions
?36 x 68mm
Weight
0.07kg
Operating Environment
-40? to 70?C / RH90% (max)
Other
Category
Vehicle Security & Safety
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
78 mm
Height
80 mm
Depth
84 mm
Weight
1.00 kg

Specifications

General
Image Sensor
1/2.7? 2.0 Megapixel CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
Front: 2.8mm F2.0 Fixed Lens / Rear: 2.1mm F2.0 Fixed Lens
Lens Type
Fixed
Angle of View
Front: 109? (H), 58? (V), 127? (D) / Rear: 132? (H), 69? (V), 164? (D)
Focus
Fixed Focus / 0.5m Min. Focus Distance
Minimum Illumination
0.02 Lux at F2.0 (Colour) / 0 Lux IR Active
Electronic Shutter
1/25 ~ 1/100,000s
Day/Night
Front: Color / Rear: Auto (IRC)
Infrared Range
Front: 3m Infrared / Rear: N/A
White Balance
Auto / Manual
Noise Reduction
2D
Gain Control
Auto
Lighting Compensation
BLC / HLC / Digital WDR
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Front: 43m / Rear: 36m
Observe (63px/m)
Front: 18m / Rear: 14m
Recognise (125px/m)
Front: 9m / Rear: 7m
Identify (250px/m)
Front: 4m / Rear: 3m
Video
Resolution
1080p (1920 x 1080)
Frame Rate
25fps (1080p and lower)
Transmission Distance
3m / 6m / 12m / 18m heavy duty cables available
Interface
Audio Input
Built-in microphone
Alarm Interface
N/A
Video Output
2 x M12 HDCVI output (Yellow: front / Black: rear)
Modes Supported
HDCVI, AHD, HDTVI & Composite
Mode Switching
OSD (via HDCVI recorder) / VSSELECT101 (UTC connector)
Synchronisation
N/A
OSD Menu
Support
Environmental
Ingress Protection
N/A
Vandal Resistant
N/A
Series
Mobile
Housing
Plastic
Camera Type
Vehicle
Tri-Axis Mounting
No
Power Input
12VDC ?30%
Power Consumption
<1.9W
Dimensions
116 x 100 x 50mm
Weight
0.17kg
Operating Environment
-30? to 60?C / RH95% (max)
Other
Analogue Support
N/A
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
97 mm
Height
110 mm
Depth
206 mm
Weight
1.00 kg

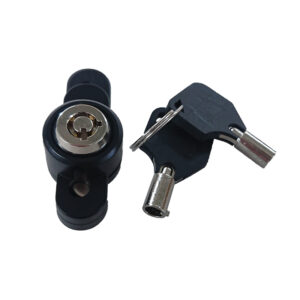

SIM/SD Card Lock for MDVR-J400. Includes: 1 x Lock 2 x Keys 2 x Screws for installation Specifications Warranty (Years): 2   Shipping Weight and Dimensions Includes product packaging Width: 100 mm Height: 60 mm Depth: 100 mm Weight: 0.10 kg
