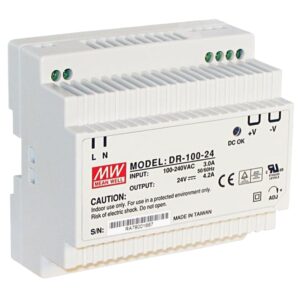

Power Supplies

Specifications

Output
DC Voltage
24V
Rated Current
4.2A
Current Range
0 ~ 4.2A
Rated Power
100.8W
Ripple and Noise (max.)
150mVp-p
Voltage Adj. Range
Pass LPS: 24 ~ 25.5V / Non LPS: 21.6 ~ 29V
Voltage Tolerance
?1.0%
Line Regulation
?1.0%
Load Regulation
?1.0%
Setup, Rise Time
500ms, 60ms/230VAC / 500ms, 60ms/115VAC at full load
Hold Up Time
50ms/230VAC / 18ms/115VAC at full load
Input
Voltage Range
88 ~ 264VAC (277VAC operational) / 124 ~ 370VDC (390VDC operational)
Frequency Range
47 ~ 63Hz
Efficiency
90%
AC Current
3A/115VAC / 1.6A/230VAC
In-rush Current
Cold Start – 35A/115VAC / Normal – 70A/230VAC
Protection
Overload Protection
105 ~ 150% rated output power
Overvoltage Protection
30 ~ 36V
Environment
Working Temperature
-30 ~ +70?C
Working Humidity
20 ~ 90% RH non-condensing
Storage Temp., Humidity
-40 ~ +85?C , 10 ~ 95% RH
Temp Coefficient
?0.03%/0C (0 ~ 50?C)
Vibration (Component)
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Vibration (Mounting)
Compliance to IEC60068-2-6
Dimensions
70 x 90 x 54.5mm
Safety
Safety Standards
UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178,TUV EN60950-1
Withstand Voltage
I/P-O/P:3KVAC
Isolation Resistance
I/P-O/P:>100M Ohms/500VDC 25?C 70%RH
EMI Conduction & Radiation
Compliance to EN61204-3
Harmonic Current
Compliance to EN61000-3-2,-3
EMS Immunity
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
MTBF
486K hrs min., MIL-HDBK-217F (25?C)
Warranty (Years)
1
Shipping Weight and Dimensions

Includes product packaging

Width
31 mm
Height
117 mm
Depth
15 mm
Weight
0.33 kg

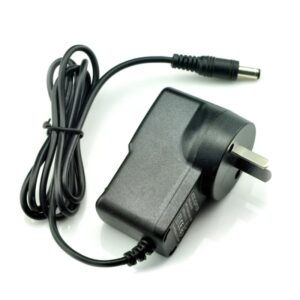

Required for use with residential intercom accessories including 2-wire network controller and 6 port Power over Ethernet (PoE) switch. Includes power cable with figure 8 port. Product Features • Input Voltage: 100-240V 1.5A ~ 50/60Hz • Output Voltage: 24VDC – 2500mA 60W • Outgoing Line Length: 1.15m Specifications General Outgoing line length: 1.15m Colour: Black…

Designed specifically for use in the CCTV industry, this 24VAC heavy duty transformer / power supply can be used to provide power to 18 CCTV cameras (cameras rated at less than 500mA). • 18 individual fused outputs • Short circuit protection • High voltage protection • Over current protection • Input Voltage: AC100~120V, AC220~240V •…

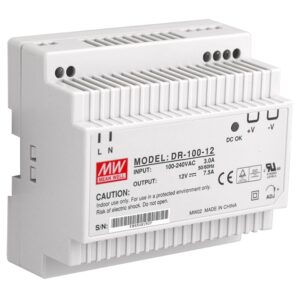

The PSDR12V7A is a 12VDC Class II DIN rail mount switching power supply, designed with a fully isolated plastic case to prevent user contact and the risk of shock. Features no load power consumption to save energy and protection against short circuit, over load, over voltage & over temperature. Product features: • 12VDC 7.5A Power…
