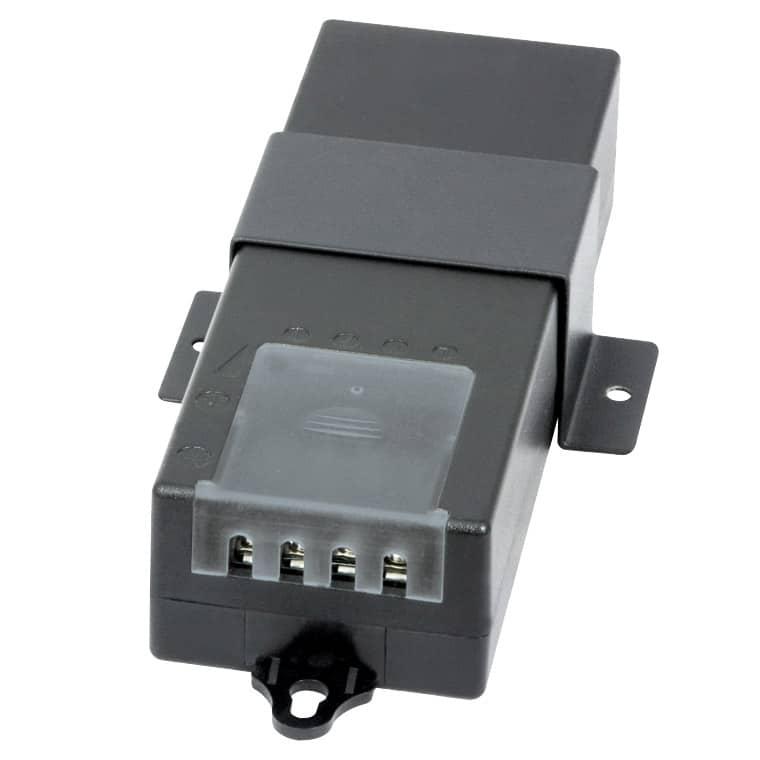

Securview 4 Channel 12VDC 5A Power Supply PS12V5A4CH

Description

The PS12V5A4CH is a 4-channel 5-Amp power supply. While normally used in CCTV installations, it is suitable for a wide variety of both CCTV and access control applications. It features adjustable output voltage and built-in 6.8-Amp overcurrent protection.

• 4-Channel 5-Amp power distribution
• Can be mounted with the bracket for easy access and reduced power cord clutter
• Universal input voltage: 100~240 VAC
• Adjustable output voltage: 12~13.8 VDC
• Built-in 6.8-Amp overcurrent protection.
• High voltage and overcurrent protection
• LED Power indicator

Specifications

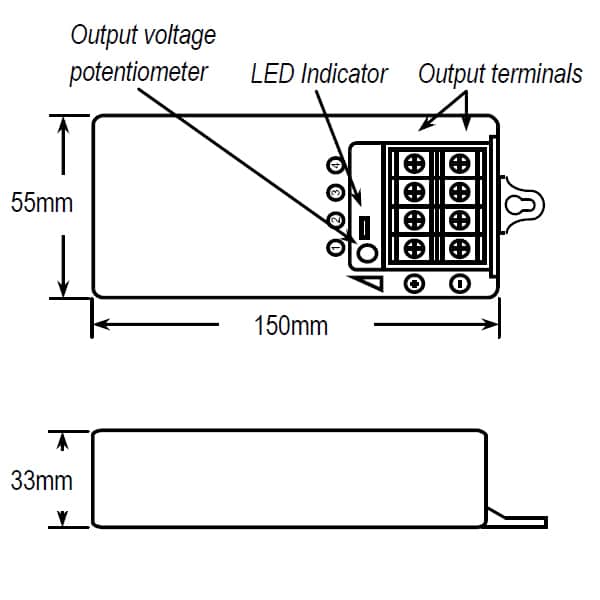

Dimensions: 150 x 55 x 33mm
Input Fuse: 3.15A@250 VAC
Input Voltage: 100~240 VAC
Max. Output Power: 60W
Operating Temperature: -10° ~ 45°C
Output Voltage: 12~13.8 VDC
Outputs: 4
Over Current Protection: 12VDC/6.8A
Total Supply Current: 5A
Weight: 380g
Warranty (Years): 1

Shipping Weight and Dimensions Includes product packaging

Width: 185 mm
Height: 40 mm
Depth: 132 mm
Weight: 0.30 kg
