CCTV Surveillance Systems

Protect your projects, safeguard your clients, and stay in control with high-performance CCTV Surveillance Systems designed to keep every site secure and every job running smoothly. Whether you’re managing a residential build, a commercial fit-out, or multiple active sites across Australia, the right surveillance setup gives you confidence, visibility, and peace of mind 24/7.

Secure Every Site with Confidence

Keep assets safe, monitor progress remotely, and deter threats before they escalate. Our CCTV solutions help you stay ahead of potential risks so your crews can focus on delivering quality work—without worrying about break-ins, vandalism, or equipment theft.

Why Contractors & Electricians Choose These Systems

Protect Valuable Tools & Materials – Reduce costly losses and prevent downtime caused by missing assets.
Monitor Multiple Locations – Check live footage from anywhere and stay updated on all active jobs.
Deter Theft & Vandalism – Clear, visible surveillance discourages unwanted activity and safeguards site integrity.
Back Up Evidence Easily – Capture high-resolution footage you can rely on when you need proof or insurance support.
Boost Workplace Safety & Compliance – Keep an eye on safety protocols and protect team members on-site.
Upgrade Client Trust – Offer smarter security solutions as part of your service and position your business as a safety-focused expert.

Smart Features That Work Hard for You

Our CCTV surveillance products deliver more than just monitoring — they give you real-time control and long-term peace of mind.

Live remote viewing
High-resolution night vision
Motion-activated recording
Weather-resistant outdoor options
Easy installation and setup
Scalable systems for future expansion

Whether you’re working on homes, apartments, offices, or industrial spaces, these systems scale with your needs and support fast deployment to keep projects secure from day one.

Build Trust & Security Into Every Project

Your clients choose you because you deliver quality. Strengthen that trust by offering reliable CCTV solutions that protect their investment, reinforce your professionalism, and enhance property security long after the job is complete.

Take Control of Site Safety Today

Lock in protection. Reduce risk. Win more confidence on every site. Shop our CCTV Surveillance Systems and secure your projects with smart, reliable technology built for today’s fast-moving electrical and construction environments.

Browse our CCTV range now and upgrade your site security with dependable solutions that work around the clock.

FAQs

What types of CCTV surveillance systems do you offer?

We supply wired, wireless, commercial-grade, and remote-view systems suitable for homes, commercial sites, and industrial facilities.

Are your CCTV systems easy to install?

Yes. Most systems support quick installation with minimal tools so you can get your site secure without delays.

Can I monitor my CCTV cameras remotely?

Absolutely. Many systems include smartphone and desktop viewing so you can check footage anytime, anywhere.

Do your systems work in low-light conditions?

Yes. Our cameras offer advanced night vision to ensure clear footage day or night.

Can these systems be expanded later?

Yes. Choose scalable kits so you can easily add additional cameras as your site or property needs grow.

Do you offer weather-resistant outdoor cameras?

Yes. We stock durable, weather-rated cameras designed to withstand harsh Australian conditions.

Ready to protect every project? Explore CCTV Surveillance Systems now and keep your security strong from start to finish.

Showing 81–96 of 477 results

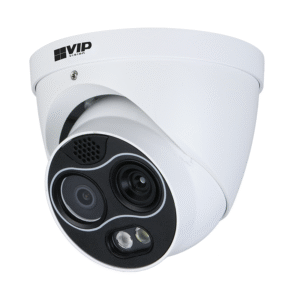

VIP Vision Hybrid Thermal Series 4.0MP Fixed Turret VSIPTC-4DIRG
$1,247.20 inc GST
Specifications

Camera
Image Sensor (Visible)
1/2.7?? 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective pixel (Visible)
2336 (H) x 1752 (V)
Min Illumination
0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)
Infrared System
1 x Infrared LED, 30m range, Auto/manual on/off control
Thermal
Image Sensor (Thermal)
Vanadium oxide uncooled focal plane detector
Effective pixel (Thermal)
256 (H) x 192 (V), 12?m Pixel Pitch
Range & Sensitivity
Range: 8~14um Sensitivity (NETD): <40mK (at f/1.0, 25 Hz, 300 K) Image Settings Digital Detail Enhancement, Auto Gain Control, 2D/3D Noise Reduction Colour Palettes 18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.) Image Fusion Modes Warm Colour, Cool Colour, Ironred Lens Focal Length Thermal: 3.5mm Visible: 4.0mm Field of View Thermal: 50? Visible: 71? Aperture Thermal: F1.0 Visible: F1.6 Close Focus Distance Thermal: 0.5m Visible: 1.0m Video Resolution & Frame Rate (Main) Thermal: 1280 x 960 to 256 x 192 at 1~25fps Visible: 4.0MP (2336 x 1752) ~ D1 (704 x 576) at 1~25fps Resolution & Frame Rate (Sub) Thermal: VGA (640 x 480) to 256 x 192 at 1~25fps Visible: 720p (1280 x 720) to CIF (352 x 288) at 1~25fps Video Compression H.265; H.264M; H.264H; H.264B; MJEPG Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR) Day/Night Auto (ICR) / Color / B&W Lighting Compensation BLC / HLC / Digital WDR White Balance Auto / Natural / Street Lamp / Tracking / Outdoor / Manual Gain Control Auto / Manual Noise Reduction 3D DNR Picture Control 90? / 180? / 270? IVS Intelligent Functions Tripwire Rules, Intrusion Rules, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared Thermal Functions Heat Detection & Alarm, Cold & Hot Spot Trace, Human & Vehicle Classification, Smoking Detection, Mobile Phone Use Detection Interface Ethernet RJ-45 (10/100 Base-T) Network Protocol IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x Max. User Access 10 Users / 20 Users Audio Interface 1 Input, 1 Output (RCA) / Compression: G.711a, G.711Mu, AAC Alarm Interface 1 Input / 1 Output Edge Storage MicroSD Card (up to 128GB) / NAS / Local PC Interoperability ONVIF / CGI Environmental Power Supply 12VDC / PoE Power Consumption <8W~14W (12VDC), 4.8~12.3W (PoE) Operating Conditions -30? ~ +50? C / Less than 95% RH Ingress Protection IP67 Vandal Resistance N/A Series Hybrid Vision Thermal Series Camera Type Turret Housing Full Metal Enclosure Dimensions & Weight 122mm x 122mm x 112mm, 0.85kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 155 mm Height 135 mm Depth 155 mm Weight 1.00 kg

VIP Vision Hybrid Thermal Series 4.0MP Fixed Turret VSIPTC-4DIRG quantity

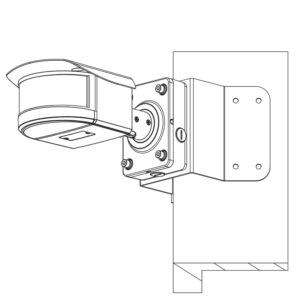

VIP Vision Panorama Series 6.0MP 180? Panorama Camera VSIP6MPPA
$1,286.00 inc GST
Specifications

Camera
Image Sensor
3 x 1/2.8?? 2.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
4096 (H) x 832 (V)
RAM / ROM
1024MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
Colour: 0.007 Lux (F1.8, 1/3s) / 0.05 Lux (F1.8, 1/30s), 0 Lux/F1.8 (B/W)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
8 x Infrared LED, 30m range, Auto/Manual on/off control 8 x Infrared LED, 30m range, Auto/Manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
3.6mm F1.8 Fixed Lens
Field of View
Horizontal: 180?, Vertical: 44?
Focus
Fixed
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
52m
Observe (63px/m)
21m
Recognise (125px/m)
10m
Identify (250px/m)
5m
Video
Resolution
(4096 x 832) to (1024 x 208)
Frame Rate (Main)
4096 x 832 (1~25fps)
Frame Rate (Sub)
1024 x 208 (1 ~ 25fps)
Frame Rate (Third)
1280 x 260 (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
H.265: 4Kbps ~ 10Mbps / H.264: 8Kbps ~ 16Mbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / Digital WDR
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
–
IVS
IVS
Yes
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, People Counting, Heat Map, E-PTZ
Network
Ethernet
RJ-45 (100/1000Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
1 Port (for adjustment only)
Audio Interface
1 Input, 1 Output / Compression: G.711a / G.711Mu / AAC / G.726
Alarm Interface
2 Inputs / 1 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
24VAC / PoE+ (802.3at)
Power Consumption
<23W Operating Conditions -30? ~ +60? C / Less than 95% RH Ingress Protection IP67 Weather Resistance Yes Vandal Resistance IK10 Series Panorama Series Camera Type Panorama Housing Metal Pan/Tilt/Rotation N/A Tri-Axis Mounting No ePoE No Dimensions 298.3mm x 172.5mm x 120.5mm Net Weight 2.6kg Other Category Network Surveillance Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 330 mm Height 220 mm Depth 330 mm Weight 3.41 kg

VIP Vision Panorama Series 6.0MP 180? Panorama Camera VSIP6MPPA quantity
VIP Vision Pinhole Series 2.0MP Fixed WDR Pinhole Camera VSIPPH-2S3
$236.24 inc GST
Specifications

Camera
Image Sensor
1/3? 2.0 Megapixel Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
128MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
Colour: F2.0 0.01 lux (1/3s)
S/N Ratio
>56dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.0 Fixed lens
Field of View
Horizontal: 96?, Vertical: 55?
Focus
Fixed / 0.6m Min. Focus Distance
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
61m
Observe (63px/m)
24.4m
Recognise (125px/m)
12.2m
Identify (250px/m)
6.4m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 25fps)
Frame Rate (Sub)
704 x 576@(1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264 / MJPEG (sub stream)
Bit Rate
H.265: 3 Kbps ~ 6144 Kbps / H.264: 3 Kbps ~ 6144 Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto/ Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Network
Ethernet
RJ45 (10/100 Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output (RCA)
Alarm Interface
N/A
RS485
N/A
Edge Storage
NAS / Local PC
Interoperability
ONVIF Profile S / API
Environmental
Power Supply
12VDC / Non POE
Power Consumption
<1.5W Operating Conditions -40? ~ +60? C / Less than 95% RH Ingress Protection N/A Weather Resistance No Vandal Resistance N/A Series Pinhole Series Camera Type Pinhole Housing Metal Pan/Tilt/Rotation N/A Tri-Axis Mounting No ePoE No Dimensions 31mm x 31mm x 30mm Net Weight 0.138kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 82 mm Height 85 mm Depth 80 mm Weight 0.30 kg

VIP Vision Pinhole Series 2.0MP Fixed WDR Pinhole Camera VSIPPH-2S3 quantity

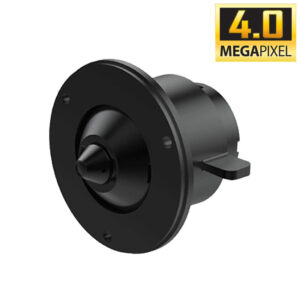

VIP Vision Pinhole Series 4.0MP Pinhole Camera – Lens Module VSIPPH-4L
$285.20 inc GST
Specifications

Camera
Image Sensor
1/2.7? 4.0 Megapixel Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1GB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
0.005 Lux at F2.0 (Colour) / 0.0005 Lux at F2.0 (B&W)
S/N Ratio
> 56dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.0 Fixed Lens
Field of View
Horizontal: 101?, Vertical: 57?
Focus
Fixed / 0.8m Min. Focus Distance
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
61m
Observe (63px/m)
24m
Recognise (125px/m)
12m
Identify (250px/m)
6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG (sub stream)
Bit Rate
H.265: 3~20480Kbps / H.264: 3~20480Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?)
IVS
IVS
Yes
Intelligent Functions
Face Detection, Tripwire, Intrusion, Fast Moving, Loitering Detection, People Gathering, Parking Detection, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Network
Ethernet
RJ45 (10/100 Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output (3.5mm jack) / Compression: G.711a; G.711Mu; PCM; G.726; G.723
Alarm Interface
2 Inputs (5mA 3V-5VDC) / 2 Output (1000mA 30VDC / 500mA 50VDC)
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / FTP / SFTP / NAS
Interoperability
ONVIF (Profile S/Profile G/Profile T) / CGI / P2P / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
Basic: 2.4W (12VDC), 3W (PoE) / Max. (AI + WDR): 3.9W (12VDC), 4.8W (PoE)
Operating Conditions
-40? ~ +60? C / ?95% RH
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Pinhole Series
Camera Type
Pinhole
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions
Camera: ?30.5 mm x 48.7 mm / Control Unit: 100 x 83 x 24mm
Net Weight
0.21kg
Other
RS232
1 Port
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
145 mm
Height
70 mm
Depth
185 mm
Weight
0.49 kg

VIP Vision Pinhole Series 4.0MP Pinhole Camera - Lens Module VSIPPH-4L quantity
VIP Vision Pinhole Series 4.0MP Pinhole Camera – Main Module VSIPPH-4M
$455.20 inc GST
Specifications

Camera
Image Sensor
1/2.7? 4.0 Megapixel Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1GB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
0.005 Lux at F2.0 (Colour) / 0.0005 Lux at F2.0 (B&W)
S/N Ratio
> 56dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.0 Fixed Lens
Field of View
Horizontal: 101?, Vertical: 57?
Focus
Fixed / 0.8m Min. Focus Distance
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
61m
Observe (63px/m)
24m
Recognise (125px/m)
12m
Identify (250px/m)
6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG (sub stream)
Bit Rate
H.265: 3~20480Kbps / H.264: 3~20480Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?)
IVS
IVS
Yes
Intelligent Functions
Face Detection, Tripwire, Intrusion, Fast Moving, Loitering Detection, People Gathering, Parking Detection, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Network
Ethernet
RJ45 (10/100 Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output (3.5mm jack) / Compression: G.711a; G.711Mu; PCM; G.726; G.723
Alarm Interface
2 Inputs (5mA 3V-5VDC) / 2 Output (1000mA 30VDC / 500mA 50VDC)
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / FTP / SFTP / NAS
Interoperability
ONVIF (Profile S/Profile G/Profile T) / CGI / P2P / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
Basic: 2.4W (12VDC), 3W (PoE) / Max. (AI + WDR): 3.9W (12VDC), 4.8W (PoE)
Operating Conditions
-40? ~ +60? C / ?95% RH
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Pinhole Series
Camera Type
Pinhole
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions
Camera: ?30.5 mm x 48.7 mm / Control Unit: 100 x 83 x 24mm
Net Weight
0.21kg
Other
RS232
1 Port
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
145 mm
Height
70 mm
Depth
185 mm
Weight
0.36 kg

VIP Vision Pinhole Series 4.0MP Pinhole Camera - Main Module VSIPPH-4M quantity
VIP Vision Professional AI Series 16CH PoE NVR with 4 x HDD Bays NVR16PRO16P-I3
$1,240.40 inc GST
Specifications

General
Video Input
16 Channels
PoE
Yes
HDD Capacity
4
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK. Supports Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from 32.0MP (6528 x 4896) to QCIF (176 x 144)
Network Bandwidth (AI Disabled)
384Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
200Mbps (incoming/recording/outgoing)
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
Playback Channels
Up to 16 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
Decoding Capacity (AI Disabled)
8CH@8.0MP/25fps, 16CH@4.0MP/25fps
Decoding Capacity (AI Enabled)
12CH@4.0MP/25fps
Backup Method
USB device / Network / eSATA
Interface
HDD
4 x SATA bays, up to 16TB per bay
Audio
1 channel input (RCA), 2 channel output (RCA)
Alarm Interface
16 channels input, 6 channels output
Alarm Types
General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
Alarm Actions
Begin record, take snapshot, camera external alarm output, access controller, audio, buzzer, NVR log, camera preset, email
Display Output
2 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
Display Split
1st & 2nd Screens: 1/4/8/9/16
Display Mode
Multiple sources: HDMI1+VGA1 (Mirror), HDMI2+VGA2 (Mirror)
Network Input
1 x 1000Mbps Ethernet uplink, 16 x PoE 100Mbps (802.3af/at), ports 1-8 supports ePoE
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
1 x Front USB 2.0, 2 x Rear USB 3.0 / 1 x RS-485, 1 x RS-232, 1 x eSATA
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Human/Vehicle Detection
Supported Camera AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
2 channel (up to 12 face images per second, per channel)
Face Detection (By Camera)
16 channels
Face Recognition Capacity
NVR Supports up to 20 face databases and 20,000 face images
Face Recognition (By NVR)
2 channel (Face detection via NVR video stream analysis; Face recognition performed by NVR) 16 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
16 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 4 channels (10 rules per channel), SMD: 8 channels
Human/Vehicle Detection (By Camera)
IVS: 16 channels, SMD: 16 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
8 channels
Video Metadata Functions
People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
Video Metadata (By NVR)
–
Video Metadata (By Camera)
8 channels
Environment
Power Supply
100?240 VAC ~ 50-60 Hz
Power Consumption
? 13W (without HDD) / PoE: Max 25.5W for single port, 130W total
Operating Environment
– 10?C ~ +55?C / 10 ~ 93%RH
Rackmountable
Yes
Rackmount Units
1.5U
Dimensions
440mm ? 416mm ? 76mm
Weight
4.82kg (without HDD)
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
530 mm
Height
210 mm
Depth
500 mm
Weight
7.00 kg

VIP Vision Professional AI Series 16CH PoE NVR with 4 x HDD Bays NVR16PRO16P-I3 quantity
VIP Vision Professional AI Series 2.0MP 25x Zoom PTZ Dome VSIPPTZ-2IRP-I2
$967.04 inc GST
Specifications

Camera
Image Sensor
1/2.8″ 2.0MP Starvis? CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
1GB / 4GB
Min Illumination
0.005 Lux/F1.6 (Colour), 0.0005 Lux/ F1.6 (B/W)/, 0 Lux (IR Light On)
S/N Ratio
N/A
Infrared System
4 x Infrared LED, 150m range, Zoom Prio/Auto/Manual/Smart IR On/Off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.8mm ~ 120mm F1.6 ~ F3.5 Motorised Lens
Field of View
58.7? ~ 2.8? (H), 33.2?~ 1.5? (V), 67.5 ~3.2 ? (D) (25x Optical Zoom)
Focus
Auto/Semi-Auto/Manual / 0.1m ~ 1.5m Min. Focus Distance
DORI
Detect (25px/m)
1614m
Observe (63px/m)
646m
Recognise (125px/m)
323m
Identify (250px/m)
161m
PTZ
Pan / Tilt Range
Pan: 0? ~ 360? (endless) / Tilt: -15? ~ 90? / Auto Flip 180?
PTZ Speed
Preset: Pan: 400?/s; Tilt: 300?/s Manual: Pan: 300?/s; Tilt: 200?/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, 5 scanning, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~25/30fps)
Frame Rate (Sub)
D1(1 ~ 25/30fps)
Frame Rate (Third)
1080p (1 ~ 25/30fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate
H.265/H.264: 3 kbps?8192 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Indoor / Outdoor / Tracking / Manual / Sodium lamp / Natural light / Street lamp
Gain Control
Auto / Manual
Noise Reduction
2D / 3D DNR
Picture Control
Flip 0?/180?
Artificial Intelligence
Face Recognition
N/A
Face Capture
N/A
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Auto Tracking
Support
Metadata
Supports human, motor vehicles and non motor vehicle search. Supports face image capture and footage search by face image & facial attributes
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
Event Triggers
Motion Detection, Video Tampering , Audio Detection, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
Up to 24 areas, and up to 8 areas in the same view
Image Stabilisation
Support
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 Input / 1 Output / Compression: G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2
Alarm Interface
2 Inputs / 1 Output
RS485
N/A
Edge Storage
FTP; Micro SD card (256G); P2P
Interoperability
ONVIF Profile S&G&T; CGI
Environmental
Power Supply
24VDC/2.5A (?25%) / PoE+ (802.3at)
Power Consumption
<13W / <22W (IR on) Operating Conditions -40? ~ +70? C / Less than 95% RH Ingress Protection IP67 Vandal Resistance IK10 Series Professional AI Series Camera Type PTZ Dome Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 360?, Tilt: -15? ~ 90? ePoE N/A Dimensions ?190mm x 332mm Net Weight 4.7kg Other Intelligent Search Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle SMD+ Filter motion detection alarms, recognises humans and vehicles from other moving objects Surge Protection TVS 6000V Lightning Protection / Surge Protection Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 280 mm Height 540 mm Depth 280 mm Weight 8.00 kg

VIP Vision Professional AI Series 2.0MP 25x Zoom PTZ Dome VSIPPTZ-2IRP-I2 quantity
VIP Vision Professional AI Series 2.0MP PTZ Ceiling Mount Camera VSIPPTZ-2C-I
$1,252.64 inc GST
Specifications

Camera
Image Sensor
1/2.8″ STARVIS? CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
1GB / 4GB
Min Illumination
Color: 0.005 Lux @ F1.35 / B/W: 0.0005 Lux @ F1.35
S/N Ratio
? 55 dB
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.9 mm ~ 156 mm F1.35-F4.4 Motorised Lens with Auto Iris
Field of View
62.8??2.2?
Focus
1 m?1.5 m Min.
DORI
Detect (25px/m)
2152m
Observe (63px/m)
850m
Recognise (125px/m)
430m
Identify (250px/m)
215m
PTZ
Pan / Tilt Range
Pan: 0 ~ 360? (endless) / Tilt: 0 ~ 90? / Auto-flip 180?
PTZ Speed
Preset: Pan: 500?/s; Tilt: 500?/s Manual: Pan: 350?/s; Tilt: 250?/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 50fps)
Frame Rate (Sub)
D1(1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265/H.264B/H.264M/H.264H/MJPEG/H.265+/H.264+
Bit Rate
H.265/H.264: 3 kbps?20480 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
2D / 3D NR
Picture Control
Flip 180?
Artificial Intelligence
Face Recognition
N/A
Face Capture
Support
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking
Support
Metadata
Support
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned object / Missing object
Event Triggers
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
Up to 24 areas
Image Stabilisation
Electronic
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
1 Output (Vpp 75?)
Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; G.723
Alarm Interface
1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / CGI
Environmental
Power Supply
24VAC / 3A (?25%) / Hi-PoE (IEEE802.3at)
Power Consumption
<16W Operating Conditions ?30?C to +60?C Ingress Protection N/A Vandal Resistance IK10 Series Professional AI Series Camera Type PTZ Dome Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 360? Tilt: 0? ~ 90? ePoE No Dimensions ?186 mm x 253 mm Net Weight 2.2 kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 260 mm Height 260 mm Depth 287 mm Weight 3.50 kg

VIP Vision Professional AI Series 2.0MP PTZ Ceiling Mount Camera VSIPPTZ-2C-I quantity
VIP Vision Professional AI Series 32CH NVR with 4 x HDD Bays NVR32PRO-I3
$1,009.20 inc GST
Specifications

General
Video Input
32 Channels
PoE
No
HDD Capacity
4
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK. Supports Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from 32.0MP (6528 x 4896) to QCIF (176 x 144)
Network Bandwidth (AI Disabled)
384Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
200Mbps (incoming/recording/outgoing)
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
Playback Channels
Up to 16 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
Decoding Capacity (AI Disabled)
8CH@8.0MP/25fps, 32CH@1080P/25fps
Decoding Capacity (AI Enabled)
24CH@1080p/25fps
Backup Method
USB device / Network / eSATA
Interface
HDD
4 x SATA bays, up to 16TB per bay
Audio
1 channel input (RCA), 2 channel output (RCA)
Alarm Interface
16 channels input, 6 channels output
Alarm Types
General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
Alarm Actions
Begin record, take snapshot, camera external alarm output, access controller, audio, buzzer, NVR log, camera preset, email
Display Output
2 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
Display Split
1st Screen: 1/4/8/9/16/25/36, 2nd Screens: 1/4/8/9/16
Display Mode
Multiple sources: HDMI1+VGA1 (Mirror), HDMI2+VGA2 (Mirror)
Network Input
2 x 1000Mbps Ethernet
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
1 x Front USB 2.0, 2 x Rear USB 3.0 1 x RS-485, 1 x RS-232, 1 x eSATA
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Human/Vehicle Detection
Supported Camera AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
2 channels (up to 12 face images per second, per channel)
Face Detection (By Camera)
16 channels
Face Recognition Capacity
NVR Supports up to 20 face databases and 20,000 face images
Face Recognition (By NVR)
2 channels (Face detection via NVR video stream analysis; Face recognition performed by NVR) 16 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
16 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 4 channels (10 rules per channel), SMD: 8 channels
Human/Vehicle Detection (By Camera)
IVS: 16 channels, SMD: 16 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
8 channels
Video Metadata Functions
People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
Video Metadata (By NVR)
–
Video Metadata (By Camera)
8 channels
Environment
Power Supply
100?240 VAC / 50-60 Hz
Power Consumption
? 13W (without HDD)
Operating Environment
-10?C ~ +55?C / 10 ~ 93%RH
Rackmountable
Yes
Rackmount Units
1.5U
Dimensions
440mm ? 415mm ? 70mm
Weight
4.74kg (without HDD)
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
500 mm
Height
210 mm
Depth
530 mm
Weight
9.50 kg

VIP Vision Professional AI Series 32CH NVR with 4 x HDD Bays NVR32PRO-I3 quantity
VIP Vision Professional AI Series 32CH PoE NVR with 4 x HDD Bays NVR32PRO16P-I2
$2,544.64 inc GST
Specifications

General
Video Input
32 Channels
PoE
Yes
HDD Capacity
4
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 2.4, SDK, CGI
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from: 24.0MP (6016 x 4016) to D1 (704 x 480)
Network Bandwidth (AI Disabled)
320Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
160Mbps (incoming/recording/outgoing)
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
Playback Channels
Up to 16 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
Decoding Capacity (AI Disabled)
4CH@8.0MP/25fps, 16CH@1080P/25fps
Decoding Capacity (AI Enabled)
4CH@8.0MP/25fps, 16CH@1080P/25fps
Backup Method
USB device / Network / eSATA
Interface
HDD
4 x SATA bays, up to 16TB per bay
Audio
1 channel input (RCA), 1 channel output (RCA)
Alarm Interface
16 channels input, 6 channels output
Alarm Types
General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
Alarm Actions
Begin record, take snapshot, camera external alarm output, access controller, audio, buzzer, NVR log, camera preset, email
Display Output
2 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Display Split
1st screen – 1/4/8/9/16/25/36, 2nd screen – 1/4/8/9/16
Display Mode
Multiple sources: HDMI1+VGA (Mirror), HDMI2
Network Input
1 x 1000Mbps Ethernet uplink, 16 x PoE 100Mbps (802.3af/at), ports 1-8 supports ePoE
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
1 x Front USB 2.0, 2 x Rear USB 3.0 / 1 x RS-485, 1 x RS-232, 1 x eSATA
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata
Supported Camera AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, ANPR, People Counting, Heatmap, Video Metadata
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
4 channels (up to 12 face images per second, per channel)
Face Detection (By Camera)
16 channels
Face Recognition Capacity
NVR Supports up to 20 face databases and 20,000 face images
Face Recognition (By NVR)
4 channel (Face detection via NVR video stream analysis; Face recognition performed by NVR) 16 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
16 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 12 channels (10 rules per channel), SMD: 12 channels
Human/Vehicle Detection (By Camera)
IVS: 16 channels, SMD: 16 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
8 channels
Video Metadata Functions
People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
Video Metadata (By NVR)
4 channels
Video Metadata (By Camera)
8 channels
Environment
Power Supply
Single, AC100V~240V, 50~60 Hz
Power Consumption
<21.1W (without HDD) / PoE: 25.5W per port, 150W total Operating Environment -10?C ~ +55?C / 0 ~ 90%RH / 86 ~ 106kpa Rackmountable Yes Rackmount Units 1.5U Dimensions 440mm ? 411mm ? 76mm Weight 5.00kg (without HDD) Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 530 mm Height 210 mm Depth 500 mm Weight 6.94 kg

VIP Vision Professional AI Series 32CH PoE NVR with 4 x HDD Bays NVR32PRO16P-I2 quantity
VIP Vision Professional AI Series 32CH PoE NVR with 4 x HDD Bays NVR32PRO16P-I3
$1,342.40 inc GST
Specifications

General
Video Input
32 Channels
PoE
Yes
HDD Capacity
4
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK. Supports Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from 32.0MP (6528 x 4896) to QCIF (176 x 144)
Network Bandwidth (AI Disabled)
384Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
200Mbps (incoming/recording/outgoing)
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
Playback Channels
Up to 16 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers, POS
Decoding Capacity (AI Disabled)
8CH@8.0MP/25fps, 32CH@1080P/25fps
Decoding Capacity (AI Enabled)
24CH@1080P/25fps
Backup Method
USB device / Network / eSATA
Interface
HDD
4 x SATA bays, up to 16TB per bay
Audio
1 channel input (RCA), 2 channel output (RCA)
Alarm Interface
16 channels input, 6 channels output
Alarm Types
General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
Alarm Actions
Begin record, take snapshot, camera external alarm output, access controller, audio, buzzer, NVR log, camera preset, email
Display Output
2 x HDMI (up to 3840 x 2160), 2 x VGA (up to 1920 x 1080)
Display Split
1st Screen: 1/4/8/9/16/25/36, 2nd Screen: 1/4/8/9/16
Display Mode
Multiple sources: HDMI1+VGA1 (Mirror), HDMI2+VGA2 (Mirror)
Network Input
1 x 1000Mbps Ethernet uplink, 16 x PoE 100Mbps (802.3af/at), ports 1-8 supports ePoE
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
1 x Front USB 2.0, 2 x Rear USB 3.0 / 1 x RS-485, 1 x RS-232, 1 x eSATA
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Human/Vehicle Detection
Supported Camera AI
Face Detection, Face Recognition, AI Human/Vehicle Detection, Video Metadata, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
2 channels (up to 12 face images per second, per channel)
Face Detection (By Camera)
16 channels
Face Recognition Capacity
NVR Supports up to 20 face databases and 20,000 face images
Face Recognition (By NVR)
2 channel (Face detection via NVR video stream analysis; Face recognition performed by NVR) 16 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
16 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 4 channels (10 rules per channel), SMD: 8 channels
Human/Vehicle Detection (By Camera)
IVS: 16 channels, SMD: 16 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
8 channels
Video Metadata Functions
People (clothing colour, hat, bag, umbrella, etc.), Vehicle (vehicle colour, vehicle model, number plate, etc.)
Video Metadata (By NVR)
–
Video Metadata (By Camera)
8 channels
Environment
Power Supply
100?240 VAC ~ 50-60 Hz
Power Consumption
? 13W (without HDD) / PoE: Max 25.5W for single port, 130W total
Operating Environment
-10?C ~ +55?C / 10 ~ 93%RH
Rackmountable
Yes
Rackmount Units
1.5U
Dimensions
440mm ? 416mm ? 76mm
Weight
4.82kg (without HDD)
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
530 mm
Height
210 mm
Depth
500 mm
Weight
7.00 kg

VIP Vision Professional AI Series 32CH PoE NVR with 4 x HDD Bays NVR32PRO16P-I3 quantity

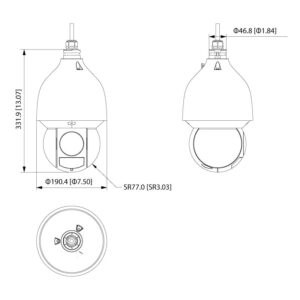

VIP Vision Professional AI Series 4.0MP 32x Zoom PTZ Dome v2 VSIPPTZ-4IRP-I2
$1,410.40 inc GST
Specifications

Camera
Image Sensor
1/2.8?? 4.0MP Starvis? CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2560 (H) x 1440 (V)
RAM / ROM
1GB / 4GB
Min Illumination
0.005 Lux/F1.6 (Colour), 0.0005 Lux/F1.6 (B/W)/, 0 Lux (IR Light On)
S/N Ratio
N/A
Infrared System
4 x Infrared LED, 150m range, Zoom Prio/Auto/Manual/Smart IR On/Off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.8mm ~ 154mm F1.6~ F4.0 Motorised Lens
Field of View
55.81? ~ 2.37? (H), 31.92? ~ 1.34? (V), 63.71? ~ 2.71? (D) (32x Optical Zoom)
Focus
Auto/Semi-Auto/Manual / 0.1m ~ 1.5m Min. Focus Distance
DORI
Detect (25px/m)
2,124m
Observe (63px/m)
839m
Recognise (125px/m)
425m
Identify (250px/m)
212m
PTZ
Pan / Tilt Range
Pan: 0? ~ 360? (endless) / Tilt: -15? ~ 90? / Auto Flip 180?
PTZ Speed
Preset: Pan: 400?/s; Tilt: 300?/s Manual: Pan: 300?/s; Tilt: 200?/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, 5 scanning, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~25fps)
Frame Rate (Sub)
D1(1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / H.264B / H.264H /MJPEG
Bit Rate
H.265/H.264: 3 kbps?20480 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Indoor / Outdoor / Tracking / Manual / Sodium lamp / Natural light / Street lamp
Gain Control
Auto / Manual
Noise Reduction
2D / 3D DNR
Picture Control
Flip 0?/180?
Artificial Intelligence
Face Recognition
N/A
Face Capture
N/A
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Auto Tracking
Support
Metadata
Supports human, motor vehicles and non motor vehicle search. Supports face image capture and footage search by face image & facial attributes
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
Event Triggers
Motion Detection, Video Tampering , Audio Detection, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
Up to 24 areas, and up to 8 areas in the same view
Image Stabilisation
Support
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 Input / 1 Output / Compression: G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2
Alarm Interface
2 Inputs / 1 Output
RS485
N/A
Edge Storage
FTP; Micro SD card (256G); P2P
Interoperability
ONVIF Profile S&G&T; CGI
Environmental
Power Supply
24VAC/3A (?25%) / PoE+ (802.3at)
Power Consumption
<12W / <20W (IR on) Operating Conditions -40? ~ +70? C / Less than 95% RH Ingress Protection IP67 Vandal Resistance IK10 Series Professional AI Series Camera Type PTZ Dome Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 360?, Tilt: -15? ~ 90? ePoE N/A Dimensions ?190mm x 332mm Net Weight 4.7kg Other Intelligent Search Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle SMD+ Filter motion detection alarms, recognises humans and vehicles from other moving objects Surge Protection TVS 6000V Lightning Protection / Surge Protection Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 280 mm Height 540 mm Depth 280 mm Weight 8.00 kg

VIP Vision Professional AI Series 4.0MP 32x Zoom PTZ Dome v2 VSIPPTZ-4IRP-I2 quantity

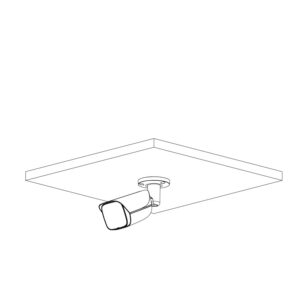

VIP Vision Professional AI Series 4.0MP Fixed Bullet VSIPP-4BIRG-I2
$195.44 inc GST
Specifications

Camera
Image Sensor
1/3?? 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 128MB
Min Illumination
0.005 Lux/F1.4 (Color)
S/N Ratio
> 56dB
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.6 Fixed Lens
Field of View
Horizontal: 107?, Vertical: 56?
Focus
Fixed / 0.7m Min. Focus Distance
DORI
Detect (25px/m)
64m
Observe (63px/m)
25m
Recognise (125px/m)
13m
Identify (250px/m)
6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Built-in Mic / Audio Compression – G.711a; G.711Mu; G726
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<7.2 W Operating Conditions -30?C ~ +60?C / ?95% RH Ingress Protection IP67 Vandal Resistance N/A Series Professional AI Series Camera Type Bullet Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 360?, Tilt: 0? ~ 78?, Rotation: 0? ~ 360? ePoE No Dimensions 192.7mm x 70.5mm x 66.4mm Net Weight 0.59kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 140 mm Height 250 mm Depth 110 mm Weight 1.00 kg

VIP Vision Professional AI Series 4.0MP Fixed Bullet VSIPP-4BIRG-I2 quantity

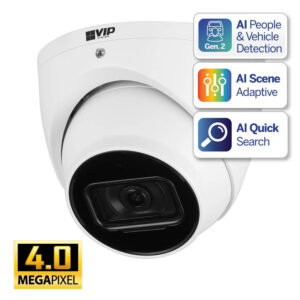

VIP Vision Professional AI Series 4.0MP Fixed Turret VSIPP-4DIRG-I2
$195.44 inc GST
Specifications

Camera
Image Sensor
1/3? 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1GB / 128MB
Min Illumination
0.005 Lux/F1.5 (Color)
S/N Ratio
> 56dB
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 102?, Vertical: 121?
Focus
Focus / 0.9m Min. Focus Distance
DORI
Detect (25px/m)
64m
Observe (63px/m)
25m
Recognise (125px/m)
13m
Identify (250px/m)
6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps) / 4.0MP (1 ~25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.265: 19 ~ 8192Kbps / H.264: 32 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?) (Support 90?/270? with 2.0MP resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression – G.711a; G.711Mu; G726; G.723; PCM
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<7.9W Operating Conditions -40?C ~ +60?C / ?95% RH Ingress Protection IP67 Vandal Resistance N/A Series Professional AI Series Camera Type Turret Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 360?, Tilt: 0? ~ 78?, Rotation: 0? ~ 360? ePoE No Dimensions ?106mm x 93.6mm Net Weight 0.50kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 140 mm Height 160 mm Depth 160 mm Weight 0.70 kg

VIP Vision Professional AI Series 4.0MP Fixed Turret VSIPP-4DIRG-I2 quantity

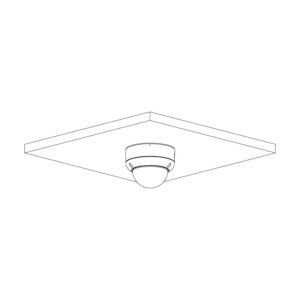

VIP Vision Professional AI Series 4.0MP Fixed Vandal Dome VSIPP-4DIRD-I2
$195.21 inc GST
Specifications

Camera
Image Sensor
1/3?? 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 128MB
Min Illumination
0.005 Lux/F1.6 (Color)
S/N Ratio
> 56dB
Infrared System
3 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm Fixed Lens with Fixed Iris
Field of View
Horizontal: 102?, Vertical: 54?
Focus
Fixed / 0.7m Min. Focus Distance
DORI
Detect (25px/m)
64m
Observe (63px/m)
25m
Recognise (125px/m)
13m
Identify (250px/m)
6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?) (Support 90?/270? at 2.0MP resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; AAC
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<8.3W Operating Conditions -30?C ~ +60?C / ?95% RH Ingress Protection IP67 Vandal Resistance IK10 Series Professional AI Series Camera Type Dome Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 355?, Tilt: 0? ~ 65?, Rotation: 0? ~ 355? ePoE No Dimensions ?111.7mm x 89.1mm Net Weight 0.516kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 101 mm Height 26 mm Depth 146 mm Weight 0.60 kg

VIP Vision Professional AI Series 4.0MP Fixed Vandal Dome VSIPP-4DIRD-I2 quantity
VIP Vision Professional AI Series 4.0MP Motorised Bullet VSIPP-4BIRMG-I2
$325.46 inc GST
Specifications

Camera
Image Sensor
1/3? 4.0 Megapixel CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB /128MB
Min Illumination
0.005 Lux/F1.5 (Color), 0.0005 Lux/F1.8(B/W) 0 Lux/F1.8 (IR on)
S/N Ratio
>56dB
Infrared System
4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 104?~29?, Vertical: 54?~16? (5x Optical Zoom)
Focus
Auto Focus / 0.8m Min. Focus Distance
DORI
Detect (25px/m)
64m (wide) / 210m (tele)
Observe (63px/m)
26m (wide) / 84m (tele)
Recognise (125px/m)
123m (wide) / 42m (tele)
Identify (250px/m)
6m (wide) / 21m (tele)
Video
Resolution
4.0MP (2688 x 120) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?) (Resolution must be at 4.0MP or lower)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Built-in MIC / Audio Compression – G.711a; G.711Mu; PCM; G.726; G.723
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<9.2W Operating Conditions -30? ~ +60? C / Less than 95% RH Ingress Protection IP67 Vandal Resistance N/A Series Professional AI Series Camera Type Bullet Housing Metal Pan/Tilt/Rotation Pan: 0? ~360 ?; Tilt: 0? ~90?; Rotation: 0? ~355? ePoE No Dimensions 244.1mm x 79.0mm x 75.9mm Net Weight 0.82kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 150 mm Height 160 mm Depth 310 mm Weight 1.10 kg

VIP Vision Professional AI Series 4.0MP Motorised Bullet VSIPP-4BIRMG-I2 quantity
