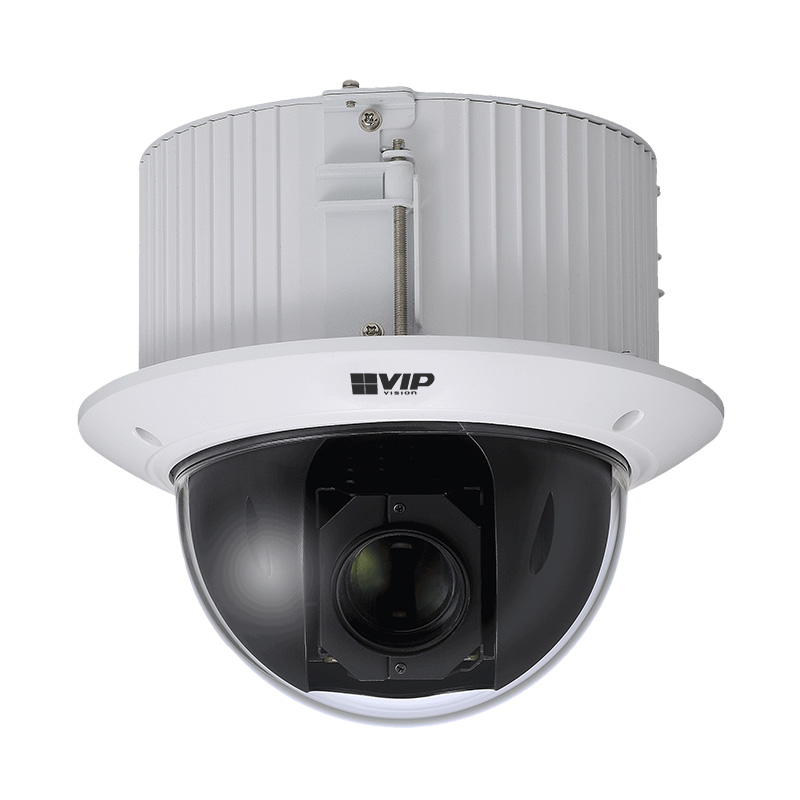

VIP Vision Professional AI Series 2.0MP PTZ Ceiling Mount Camera VSIPPTZ-2C-I

Specifications

Camera
Image Sensor
1/2.8″ STARVIS? CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
1GB / 4GB
Min Illumination
Color: 0.005 Lux @ F1.35 / B/W: 0.0005 Lux @ F1.35
S/N Ratio
? 55 dB
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.9 mm ~ 156 mm F1.35-F4.4 Motorised Lens with Auto Iris
Field of View
62.8??2.2?
Focus
1 m?1.5 m Min.
DORI
Detect (25px/m)
2152m
Observe (63px/m)
850m
Recognise (125px/m)
430m
Identify (250px/m)
215m
PTZ
Pan / Tilt Range
Pan: 0 ~ 360? (endless) / Tilt: 0 ~ 90? / Auto-flip 180?
PTZ Speed
Preset: Pan: 500?/s; Tilt: 500?/s Manual: Pan: 350?/s; Tilt: 250?/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 50fps)
Frame Rate (Sub)
D1(1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265/H.264B/H.264M/H.264H/MJPEG/H.265+/H.264+
Bit Rate
H.265/H.264: 3 kbps?20480 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
2D / 3D NR
Picture Control
Flip 180?
Artificial Intelligence
Face Recognition
N/A
Face Capture
Support
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking
Support
Metadata
Support
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned object / Missing object
Event Triggers
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
Up to 24 areas
Image Stabilisation
Electronic
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
1 Output (Vpp 75?)
Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; G.723
Alarm Interface
1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / CGI
Environmental
Power Supply
24VAC / 3A (?25%) / Hi-PoE (IEEE802.3at)
Power Consumption

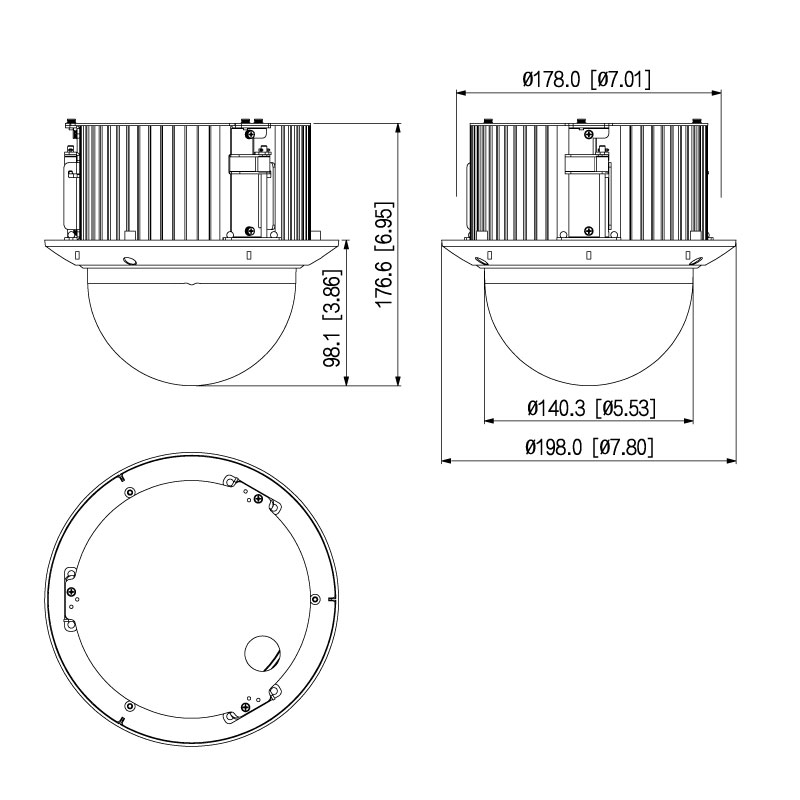

<16W Operating Conditions ?30?C to +60?C Ingress Protection N/A Vandal Resistance IK10 Series Professional AI Series Camera Type PTZ Dome Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 360? Tilt: 0? ~ 90? ePoE No Dimensions ?186 mm x 253 mm Net Weight 2.2 kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 260 mm Height 260 mm Depth 287 mm Weight 3.50 kg
