Securview Victory Series Professional Series 8 Channel 8.0MP HDCVI Digital Video Recorder CVR8PRO4

Description

Rapidly transform low-resolution surveillance into high performing HD CCTV , with support for IP & analogue video inputs. The Securview™ Professional AI Series offers advanced technologies to transform the way surveillance works for you. Monitor your operations using intelligent face recognition & AI people and vehicle detection. Identify strangers, set up blacklists, search playback by face and receive people & vehicle surveillance alerts to your devices.

Product features:

• Records 8 channels up to 8.0MP (3840 x 2160) at 7fps

• Supports H.265+ high efficient video compression

• 2 x SATA ports up to 10TB, max. 20TB HDD capacity

• Support for HDCVI, Analogue and IP video inputs

• Add 8 additional IP channels up to 8.0MP to allow a total of 16 cameras*

• Identify people with up to 2 channels of face recognition (BNC inputs only)

• AI person and vehicle detection to identify people and vehicles using SMD+ or perimeter protection

• Receive face recognition & people/vehicle detection alerts to your device

• Configure iOS/Android remote view in seconds via QR code

• HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output

• Backup via external USB device or local network

*Adding additional IP Cameras will disable face recognition capabilities

SPECIFICATIONS

General:

Main Processor: Embedded Processor

Operating System: Embedded Linux

Video Input: 8 channel BNC

Audio In/Out: 4 channel input / 1 channel output

Two-way Talk: Reuse channel 1 audio input/output

Cross Compatibility:

Supported Video Inputs: HDCVI / HDTVI / AHD / Composite / IP

Coax Input Support: 8 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)

IP Input Support: 8 channels

IP Input Max. Resolution: 8.0MP

IP Input Max. Bandwidth: 128Mbps

Display:

Video Output: 1 HDMI / 1 VGA

Display Resolution: 3840 x 2160 to 1280 x 720

Display Split: 1/4/8/9 (16 with IP extension mode enabled)

OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording:

Maximum Resolution: 8.0MP (3840 x 2160) / 4.0MP (2560 x 1440) / 1080p (1920 x 1080)

Frame Rate (Main): 4K (1~7fps); 6.0MP (1~10fps); 5MP (1~12fps); 4MP/3MP (1~15fps) / 1080p (1 ~25fps)

Frame Rate (Sub): 960H (1 ~15fps) / D1 (1~25fps)

Frame Rate (Third): N/A

Video Compression: AI Coding / H.265+ / H.265 / H.264+ / H.264

Bit Rate: 32Kbps ~ 6144Kbps Per Channel

Record Modes: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

AI Functions:

AI Functions: Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)

Face Recognition:

Performance (Face Recognition): Max. 12 face pictures per second (modeling and comparing), Approx. 2 channels face recognition (analogue cameras only) (Performance varies depending on camera and resolution)

Stranger Mode: Detect strangers face (not in database)

AI Search (Face Recognition): Up to 8 target face images at the same time

Database Management: Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

Database Application: Each database can be applied to video channels independently

Trigger Events (Face Recognition): Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.

Perimeter Protection:

Performance (Perimeter Protection): 2 Channels, 10 IVS rules for each Channel

AI Search (Perimeter Protection): Search by target classification (Human, Vehicle)

Object Classification (Perimeter Protection): Human / vehicle secondary recognition for tripwire and intrusion

Smart Motion Detection(SMD+)

Performance (SMD+): 8 Channels

AI Search (SMD+): Search by target classification (Human, Vehicle)

Features:

Alarm Input / Output: 8 channel input / 3 relay output

Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Playback Sync: 39817

Search Modes: Time /Date, Alarm, MD and Exact Search (accurate to second)

Backup Modes: USB Device / Network

Network:

Ethernet: 1x RJ-45 port (1000M)

Network Functions: HTTP, HTTPS, IPv4/IPv6, TCP/IP, Wi-Fi, 3G/4G, SNMP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, P2P, IP Search

Max. User Access: 128 users

Remote View: iOS (iPhone, iPad); Android devices

Storage:

Internal HDD: 2 x SATA ports up to 10TB, max. 20TB HDD capacity

USB Interface: 2 ports: 1x USB2.0, 1x USB3.0

Auxiliary Inputs: 1 x RS485 port (for PTZ)

Environment:

Power Supply: 12VDC / 4A

Power Consumption: <10W (without HDD)

Operating Environment: -10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH

Rackmountable: No

Rackmount Units: 1RU

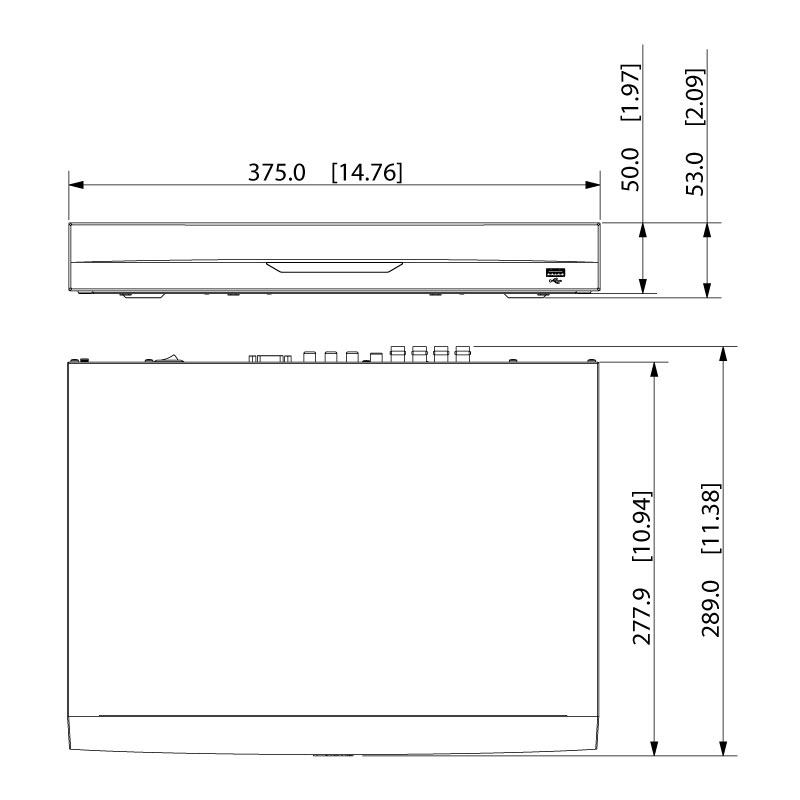

Dimensions: 375mm×288mm×53mm

Weight: 1.6kg (without HDD)

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product and packages

Width: 435mm

Height: 363mm

Depth: 140mm

Weight: 2.80kg
