AVOL 10kWh Power and Communication Cable AVOL-GENIUS-EXP0510
$163.80 inc GSTSpecifications
Warranty (Years)
1
Shipping Weight and Dimensions
Includes product packaging
Width
210 mm
Height
210 mm
Depth
110 mm
Weight
0.80 kg
Showing all 16 results
-
-
AVOL 20kWh Power and Communication Cable AVOL-GENIUS-EXP0520
$513.20 inc GSTSpecifications
Warranty (Years)
1
Shipping Weight and DimensionsIncludes product packaging
Width
300 mm
Height
600 mm
Depth
300 mm
Weight
7.00 kg -
AVOL 3.5kW Panels + 5kW AVOL Battery Solar System Kit PWRSLR-J3P5B
$12,522.00 inc GSTSpecifications
Warranty (Years)
TBA
Shipping Weight and DimensionsIncludes product packaging
Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg -
AVOL 3.5kW Panels + AVOL 5kW Inverter Solar System Kit PWRSLR-J3P
$6,762.00 inc GSTSpecifications
Warranty (Years)
TBA
Shipping Weight and DimensionsIncludes product packaging
Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg -
AVOL 5.1kWh LFP Battery Pack AVOL-GENIUS-BA5
$5,446.00 inc GSTSpecifications
General
Battery type
Lithium Iron Phosphate (LiFePO4 / LFP)
Weight
54kg
Dimension
540 x 490 x 240mm
IP Protection
IP65
Warranty
5 Years (Product) / 10 Years (Performance)
Country of Manufacturer
China
Electrical
Energy Capacity
5.12kWh
Usable Capacity
4.6kWh
Depth of Discharge (DoD)
90%
Nominal Voltage
51.2V
DC Circuit Breaker
125A
Operating Voltage Range
44.8-56.5V
Internal Resistance
<20mO Cycle Life 10,000 cycle Operation Maximum Charge / Discharge Current 50N80A Rated DC power 4096W Max. Charge / Discharge Power 2825W / 4096W Operating Temperature Range 0 to 50?C charging / -10 to 50?C discharging Humidity 0~95% (No condensation) BMS Modules Connection Max.4 Capacity 100-400Ah Power Consumption <2W Communication CAN & RS485 Monitoring Parameters System voltage, current, cell voltage, cell temperature, PCBA temperature measurement Warranty (Years) 5 Shipping Weight and Dimensions Includes product packaging Width 640 mm Height 730 mm Depth 360 mm Weight 61.00 kg -
AVOL 5kW Hybrid Solar Power Inverter AVOL-GENIUS-IA5
$3,214.00 inc GSTSpecifications
DC Input
Maximum DC Voltage
580V
Nominal Voltage
400V
MPPT Voltage Range
80V – 560V
Number of MPP Tracker
2
Maximum Input Current Per MPPT
15A
AC Output (Grid)
Nominal AC Output Power
5000W
Maximum AC Apparent Power
360VA (from grid)
Maximum AC Output Power
4999W (Australia)
Nominal AC Voltage
230VAC
Max. Output Current
20A
Max. Input Current
32A
THD
<3% at rated power Battery Input Battery Type LFP (LiFePO4) Nominal Battery Voltage Charging Voltage 48V Range 40-60V Maximum Charge / Discharge Current 100A Battery Capacity 100-400Ah Charging Strategy for Li-ion Battery Dependant on the BMS AC Output (Backup) Max. Output Apparent Power 5000VA Max. Output Current (Backup) 20A Nominal Output Voltage 230V Nominal Output Frequency 50/60Hz Output THD <3% (Linear Load) Efficiency Max. PV Efficiency 97.6% Euro. PV Efficiency 97.0% Protection DC Switch Bipolar DC Switch (125A/Pole) Anti-islanding Protection Yes Output Over Current Yes DC Reverse Polarity Protection Yes String Fault Detection Yes AC/DC Surge Protection DC Type ll; AC Type Ill Insulation Detection Yes AC Short Circuit Protection Yes General Dimensions 540 x 590 x 240mm Weight 32kg Operating Environment -25? C~ +60? C Noise (dB) <25 Cooling Type Natural Convection Max. Operation Altitude 2000m Operation Humidity 0~95% (No Condensation) IP Class IP65 Topology Battery Isolation Communication RS485/CAN2.0/WIFl/4G Display LCD/APP Country of Manufacturer China Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 630 mm Height 730 mm Depth 340 mm Weight 38.00 kg -
AVOL 7kW Panels + 10kWh AVOL Battery Solar System Kit PWRSLR-J7P10B
$21,334.80 inc GSTSpecifications
Warranty (Years)
TBA
Shipping Weight and DimensionsIncludes product packaging
Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg -
AVOL 7kW Panels + 15kWh AVOL Battery Solar System Kit PWRSLR-J7P15B
$27,570.00 inc GSTSpecifications
Warranty (Years)
TBA
Shipping Weight and DimensionsIncludes product packaging
Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg -
AVOL 7kW Panels + 20kWh AVOL Battery Solar System Kit PWRSLR-J7P20B
$33,142.80 inc GSTSpecifications
Warranty (Years)
TBA
Shipping Weight and DimensionsIncludes product packaging
Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg -
AVOL 7kW Panels + AVOL 5kW AVOL Inverter Solar System PWRSLR-J7P
$9,670.80 inc GSTSpecifications
Warranty (Years)
TBA
Shipping Weight and DimensionsIncludes product packaging
Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg -
AVOL AVOL Genius 10kWh Energy Storage Battery System AVOL-GENIUS10
$14,038.00 inc GSTSpecifications
Warranty (Years)
5
Shipping Weight and DimensionsIncludes product packaging
Width
630 mm
Height
730 mm
Depth
300 mm
Weight
100.00 kg -
AVOL AVOL Genius 15kWh Energy Storage Battery System AVOL-GENIUS15
$19,910.00 inc GSTSpecifications
Warranty (Years)
5
Shipping Weight and DimensionsIncludes product packaging
Width
630 mm
Height
730 mm
Depth
300 mm
Weight
100.00 kg -
AVOL AVOL Genius 20kWh Energy Storage Battery System AVOL-GENIUS20
$25,222.00 inc GSTSpecifications
Warranty (Years)
5
Shipping Weight and DimensionsIncludes product packaging
Width
630 mm
Height
730 mm
Depth
300 mm
Weight
100.00 kg -
AVOL AVOL Genius 5kWh Energy Storage Battery System AVOL-GENIUS5
$8,582.00 inc GSTSpecifications
Warranty (Years)
5
Shipping Weight and DimensionsIncludes product packaging
Width
630 mm
Height
730 mm
Depth
300 mm
Weight
100.00 kg -
None 420-440W Jinko Solar Panel SLR-PAN-JINKO440
$351.20 inc GSTSpecifications
Dimension
1762mm x 1134mm x 30mm
Warranty (Years)
25
Shipping Weight and DimensionsIncludes product packaging
Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg -

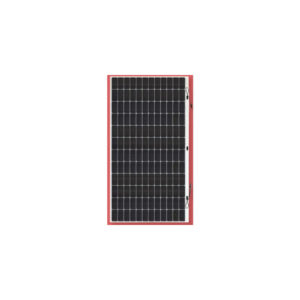

None Flexible Solar Panel 430W SLR-SP430W
$865.20 inc GSTSpecifications
Dimension
2054mm x 1080mm x 2mm
Warranty (Years)
12
Shipping Weight and DimensionsIncludes product packaging
Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg
