AVOL 5.1kWh LFP Battery Pack AVOL-GENIUS-BA5
$5,446.00 inc GST
Specifications
General
Battery type
Lithium Iron Phosphate (LiFePO4 / LFP)
Weight
54kg
Dimension
540 x 490 x 240mm
IP Protection
IP65
Warranty
5 Years (Product) / 10 Years (Performance)
Country of Manufacturer
China
Electrical
Energy Capacity
5.12kWh
Usable Capacity
4.6kWh
Depth of Discharge (DoD)
90%
Nominal Voltage
51.2V
DC Circuit Breaker
125A
Operating Voltage Range
44.8-56.5V
Internal Resistance
<20mO
Cycle Life
10,000 cycle
Operation
Maximum Charge / Discharge Current
50N80A
Rated DC power
4096W
Max. Charge / Discharge Power
2825W / 4096W
Operating Temperature Range
0 to 50?C charging / -10 to 50?C discharging
Humidity
0~95% (No condensation)
BMS
Modules Connection
Max.4
Capacity
100-400Ah
Power Consumption
<2W
Communication
CAN & RS485
Monitoring Parameters
System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
Warranty (Years)
5
Shipping Weight and Dimensions
Includes product packaging
Width
640 mm
Height
730 mm
Depth
360 mm
Weight
61.00 kg
25 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description

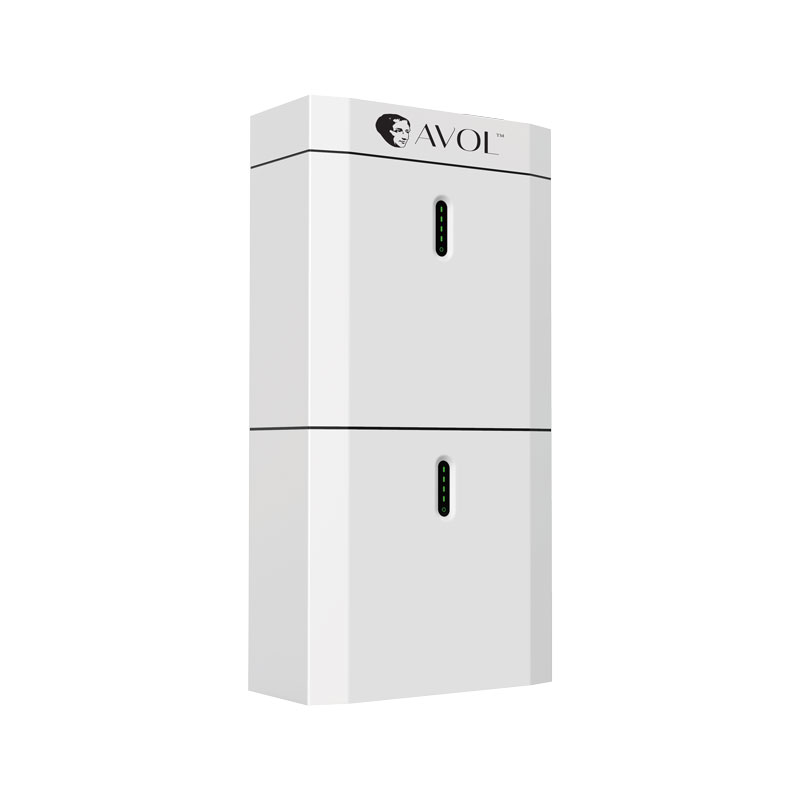

The Genius Series: 5.1kWh LFP Battery Packs are modular designed to store and provide energy during the day and night when used with a PV system. Lithium Iron Phosphate Batteries (LiFePO4 / LFP) used in the Genius Battery pack features longer life span, zero maintenance, ultra-safe, lightweight, improved charge and discharge efficiency.
Features:
? Modular, robust design delivers excellent levels of safety and performance
? Cells produced by the world?s industry leading partner Contemporary Amperex Technology Co., Limited
? Up to 4 modules in a single PV system
? Up to 20kWh of energy storage
? 10,000 cycles at 90% depth of discharge
? IP65 weather rated, 5-year warranty
