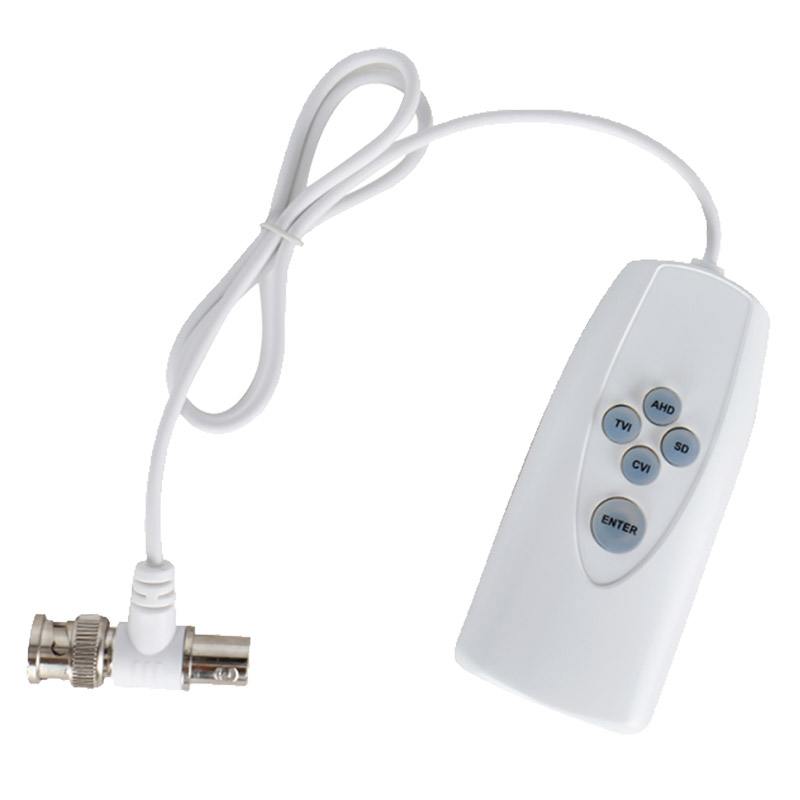

Securview Victory Series UTC Video Output Controller VSSELECT101

Description

The VSSELECT101 UTC Video Output Controller changes the video output format of coaxial cameras to HDCVI, TVI, AHD or Analogue. This allows you to configure camera video outputs by simply connecting the VSSELECT101 and pushing a button, saving the hassle of setting up a DVR and monitor for configuration.

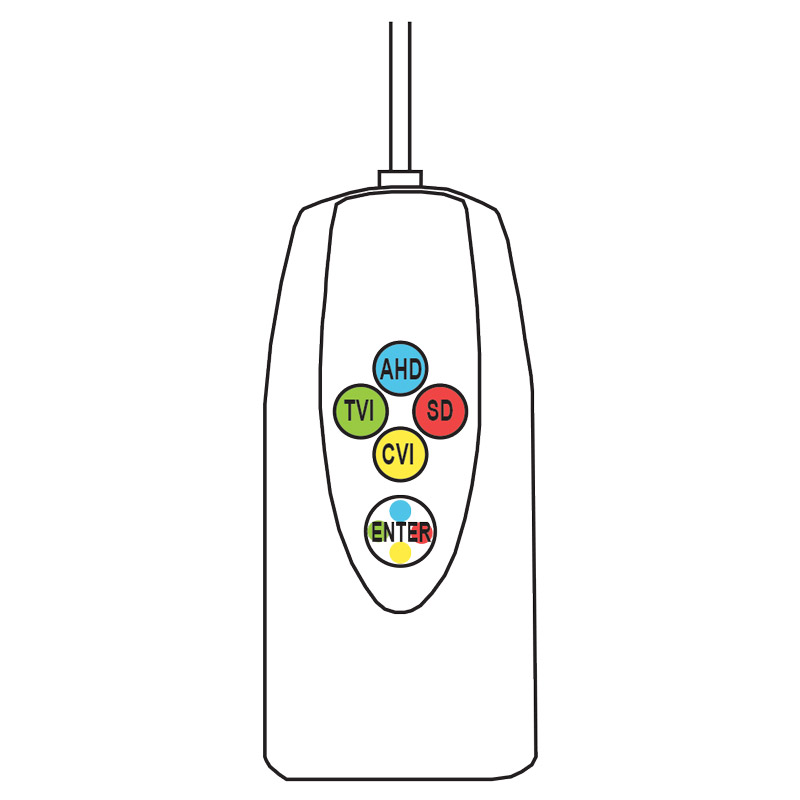

When pressed, the Enter button conveniently lights up to show the current video output of the connected camera.

Features

• Supports HDCVI/TVI/AHD/Analogue configuration

• Simple plug-and-play functionality

• Indicator lights show current video output format

• 560mm cable length

• 2 x AAA battery powered

SPECIFICATIONS

Cable Length: 560mm

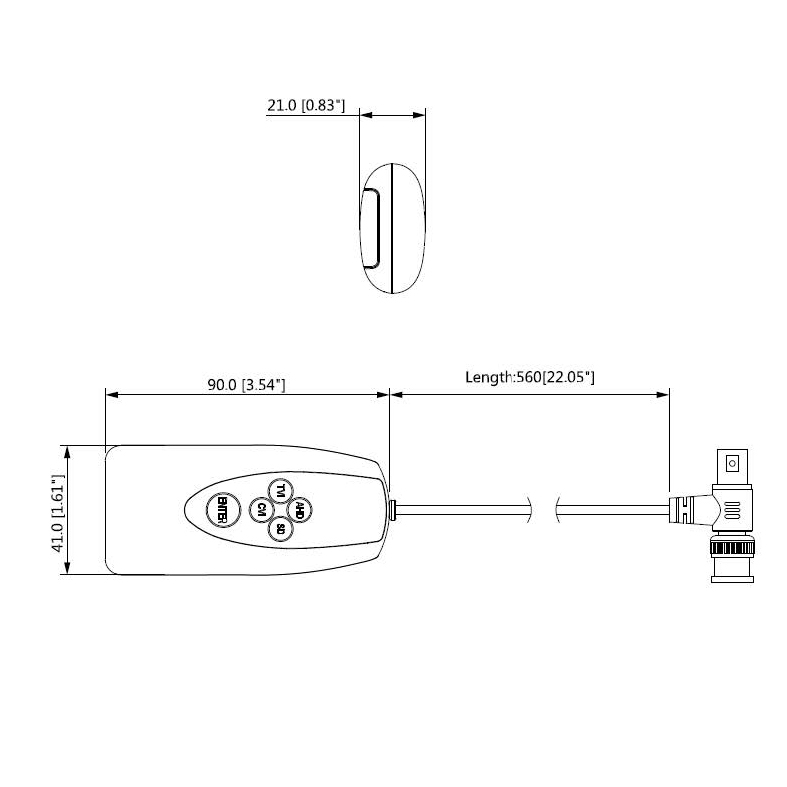

Dimensions: 90 x 41 x 21mm

Material: Polycarbonate & ABS

Operating Environment: 0℃ ~ 40℃ / RH95% (max)

Power Consumption: 0.3W

Power Supply: 2 x AAA battery

Supported Formats: HDCVI/TVI/AHD/Analogue

Weight: 48g

Warranty (Years): 1

Shipping Weight and Dimensions

Includes product packaging

Width: 77 mm

Height: 34 mm

Depth: 122 mm

Weight: 0.08 kg
