MSS Fibre VISIBLE FAULT LOCATOR – SUIT 2.5MM VFL-HD

Description

For use with 2.5mm ferrule connectors – FC, SC and ST

Test for continuity and find sharp bends and breaks

Aluminium construction

650nm Laser

Extra long runtime from 2 x AA batteries

Product Description

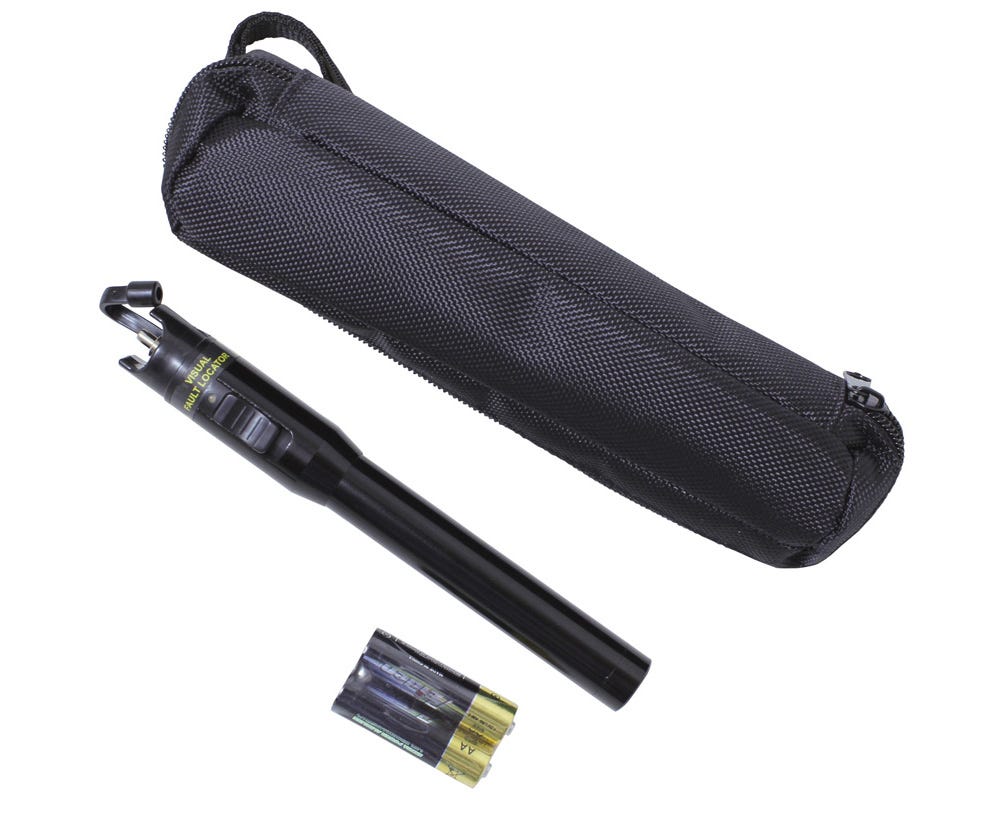

Visible Fault Locator Suit 2.5mm

The MSS Pocket Fault Locator is designed for either singlemode or multimode use. The pocket-sized unit allows you to visually locate micro-bends, fibre breaks, and other sources of optical attenuation in fibre Patch Leads, Patch panels, and Enclosures.

The class 2 visible laser operates at 650nm in both continuous and pulse modes. The unit has a 30 hour battery life in continuous mode and 40 hours in modulated mode.

This unit includes batteries and protection holster.

Visible Fault Locator Features

• All Aluminium construction

• 650nm laser

• 2.5mm or 1.25mm universal adapter

• Finds sharp bends and breaks

• Test for continuity

• 6-7km Singlemode

• 4-5km Multimode

• Nylon belt holster

• Extra-long battery life with 2x AA batteries

• Continuous and modulated modes

Technical Data

Wavelengths650nm+/- 5nm

Fibre-coupled output0dBm typical, -3.5dBm minimum (singlemode fibre)

Laser Class III (< 5mW)

Approx Range 6-7km (singlemode), 4-5 (multimode)

Battery(2) AA

Battery Life 30hrs continuous, 40hrs modulated

AdapterUniversal 2.5mm or 1.25mm

Dimensions7.1″ long x 0.860″ diameter

Weight (with batteries)127gms

Operating Temp -10 to 50
