VIP Vision Specialist AI Series 2.0MP 25x Zoom PTZ Positioning Camera VSIPPTZ-2IRW-I

Description

Experience clear large-scale surveillance, the vandal-resistant AI PTZ combines the flexibility and coverage of PTZ with the power of smart AI technology. The PTZ AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time.

Camera features:

• Stream up to 2.0MP (1920 x 1080) at 50fps

• 25x optical zoom lens (59.2° ~ 2.4° viewing angles)

• Low light colour performance at 0.005lx; 150m IR

• Auto tracking with intelligent video functions

• AI powered perimeter protection & smart motion detection (SMD+)

• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles

• MicroSD slot for recording at the edge up to 256GB

• Supports Power over Ethernet (802.3af) or 24VAC

• IP67 weather rated & lightning proof housing

SPECIFICATIONS

Image Sensor: 1/2.8” 2.0MP Progressive Scan CMOS

Max. Resolution: Effective Pixels

Effective Pixels: RAM / ROM

RAM / ROM: 1GB / 4GB

Min Illumination: 0.005 Lux/F1.6 (Color), 0.0005 Lux/ F1.6 (B/W), 0 Lux (IR on)

S/N Ratio: >55dB

Infrared System: 4 x Infrared LED, 150m range, Zoom Prio / Manual / OFF on/off control

Lens Type: Motorised Varifocal

Lens / Iris: 4.8 ~ 120mm F1.6 ~ F3.5 Motorised Lens with Auto Iris

Field of View: Horizontal: 61~2.8°, Vertical: 33.2°~1.7° (25x Optical Zoom)

Focus: Auto/Semi-Auto/Manual / 0.1 ~ 1.5m Min. Focus Distance

Detect (25px/m): 1655m

Observe (63px/m): 657m

Recognise (125px/m): 331m

Identify (250px/m): 166m

Pan / Tilt Range: Pan: 0 ~ 360° / Tilt: -90 ~ 90°

PTZ Speed: Preset: Pan: 160°/s; Tilt: 110°/s Manual: Pan: 0.1° ~ 120°/s; Tilt: 0.1° ~ 75°/s

Modes / Presets: Up to 300 presets / 8 tour

Start-up Action: Auto-restore to previous PTZ/lens status

Resolution: 1080p (1920 x 1080) to CIF (352 x 288)

Frame Rate (Main): 1080p (1 ~ 50fps)

Frame Rate (Sub): D1/CIF (1 ~ 50fps)

Frame Rate (Third): 1080p to CIF (1 ~ 50fps)

Video Compression: H.265; H.264; H.264B; H.264H; MJPEG (Sub Stream); H.265+; H.264+

Bit Rate: H.264 / H.265: 3 ~ 20480Kbps

Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night: Auto (ICR) / Color / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): No

White Balance: Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light / Street Lamp

Gain Control: Auto / Manual

Noise Reduction: 2D / 3D

Picture Control: Flip 180°

Face Recognition: N/A

Face Capture: N/A

Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection

Auto Tracking: Support

Metadata: Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle

People Counting: N/A

Heat Map: N/A

IVS Functions: Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog

Event Triggers: Motion Detection, Video Tampering , Audio Detection, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Region of Interest: Support

Optical Defog: Support

Digital Zoom: 16x

Privacy Masking: Up to 24 areas, and up to 8 areas in the same view

Image Stabilisation: Support

Ethernet: RJ-45 (10Base-T/100Base-TX)

Protocol: IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB-2); RTCP; RTMP

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: N/A

Audio Interface: 1 Input, 1 Output / Supports Two-way Audio / Compression: G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723

Alarm Interface: 2 Inputs / 1 Output / Alarm Linkage: Capture; Preset; Tour; Pattern; SD Card Record; Trigger Digital Output; Client Electronic Map; Send Email

RS485: N/A

Edge Storage: MicroSD Card (up to 256GB) / FTP / NAS

Interoperability: ONVIF (Profile S/ Profile G) / CGI

Power Supply: 12VDC 4A ± 10%/ PoE (802.3af)

Power Consumption: <14W / <23W (IR on, PTZ operations)

Operating Conditions: -40° ~ +70° C / ≤95% RH

Ingress Protection: IP67

Vandal Resistance: N/A

Series: Specialist AI Series

Camera Type: PTZ Positioning

Housing: Metal

Pan/Tilt/Rotation: N/A

ePoE: No

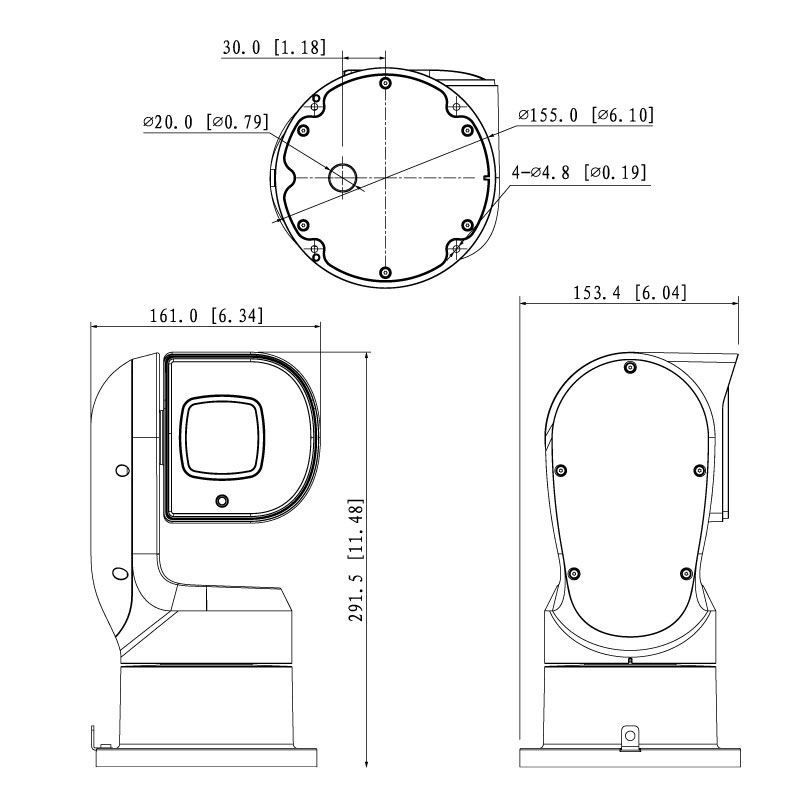

Dimensions: 161mm x 135mm x 292mm

Net Weight: 3.6kg

Surge Protection: TVS 8000V Lightning Proof / Surge Protection / Voltage Transient Protection

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 141 mm

Height: 86 mm

Depth: 39 mm

Weight: 1.08 kg
