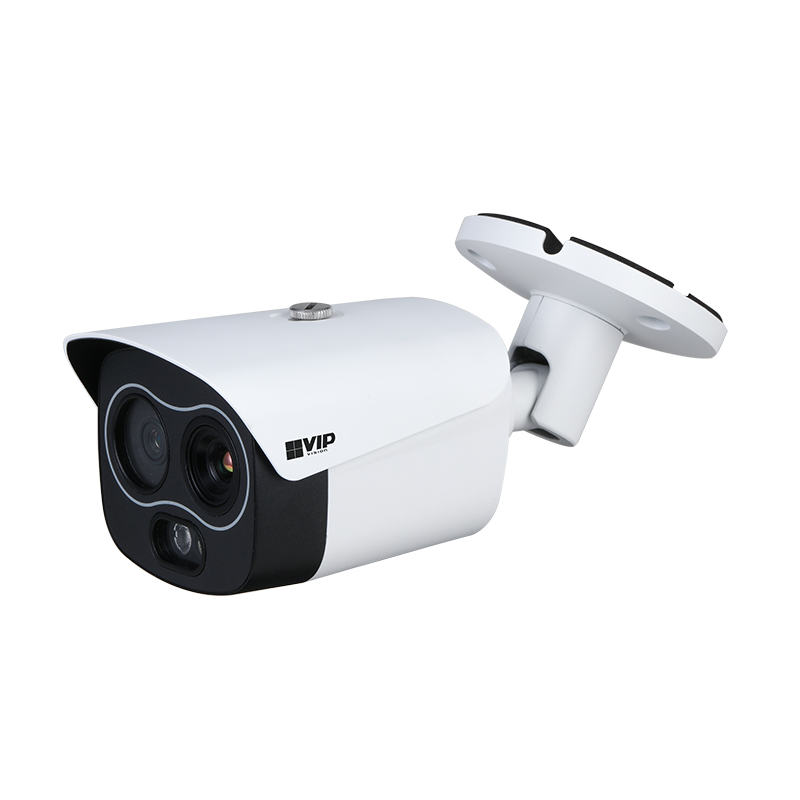

VIP Vision Hybrid Thermal Series 4.0MP Fixed Bullet VSIPTC-4BIRG
$1,247.20 inc GST
Specifications
Camera
Image Sensor (Visible)
1/2.7?? 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective pixel (Visible)
2336 (H) x 1752 (V)
Min Illumination
0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)
Infrared System
1 x Infrared LED, 30m range, Auto/manual on/off control
Thermal
Image Sensor (Thermal)
Vanadium oxide uncooled focal plane detector
Effective pixel (Thermal)
256 (H) x 192 (V), 12?m Pixel Pitch
Range & Sensitivity
Range: 8~14um Sensitivity (NETD): <40mK (at f/1.0, 25 Hz, 300 K)
Image Settings
Digital Detail Enhancement, Auto Gain Control, 2D/3D Noise Reduction
Colour Palettes
18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)
Image Fusion Modes
Warm Colour, Cool Colour, Ironred
Lens
Focal Length
Thermal: 3.5mm Visible: 4.0mm
Field of View
Thermal: 50? Visible: 71?
Aperture
Thermal: F1.0 Visible: F1.6
Close Focus Distance
Thermal: 0.5m Visible: 1.0m
Video
Resolution & Frame Rate (Main)
Thermal: 1280 x 960 to 256 x 192 at 1~25fps Visible: 4.0MP (2336 x 1752) ~ D1 (704 x 576) at 1~25fps
Resolution & Frame Rate (Sub)
Thermal: VGA (640 x 480) to 256 x 192 at 1~25fps Visible: 720p (1280 x 720) to CIF (352 x 288) at 1~25fps
Video Compression
H.265; H.264M; H.264H; H.264B; MJEPG
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / Digital WDR
White Balance
Auto / Natural / Street Lamp / Tracking / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
90? / 180? / 270?
IVS
Intelligent Functions
Tripwire Rules, Intrusion Rules, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Thermal Functions
Heat Detection & Alarm, Cold & Hot Spot Trace, Human & Vehicle Classification, Smoking Detection, Mobile Phone Use Detection
Interface
Ethernet
RJ-45 (10/100 Base-T)
Network Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Max. User Access
10 Users / 20 Users
Audio Interface
1 Input, 1 Output (RCA) / Compression: G.711a, G.711Mu, AAC
Alarm Interface
1 Input / 1 Output
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / CGI
Environmental
Power Supply
12VDC / PoE
Power Consumption
<8W~14W (12VDC), 4.8~12.3W (PoE)
Operating Conditions
-30? ~ +50? C / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Hybrid Vision Thermal Series
Camera Type
Bullet
Housing
Full Metal Enclosure
Dimensions & Weight
206mm x 91mm x 91mm. 0.90kg
Warranty (Years)
4
Shipping Weight and Dimensions
Includes product packaging
Width
187 mm
Height
138 mm
Depth
279 mm
Weight
1.30 kg
25 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
By combining traditional image & thermal sensors, VIP Vision hybrid thermal cameras redefine your expectations of surveillance. Enhance images with Image Fusion thermal overlay, achieve excellent motion detection accuracy, setup thermal perimeters using IVS, and detect fires before they spread, all in a compact weather rated chassis.
Camera Features:
? Combination thermal and visible light surveillance
? 4.0MP visible light sensor with choice of fixed lenses
? One IP address per channel for thermal & visible images (2 channels used)
? Set tripwire/intrusion rules; heat and fire detection
? VOx thermal sensor with 256 x 192px resolution
? Detects 8~14?m wavelength infrared spectral range
? White light & siren for thermal trigger event alerts
? Adjustable modes & alarm output for fire detection
? 30m IR illuminator, Alarm I/O, audio I/O, IP67 rated
