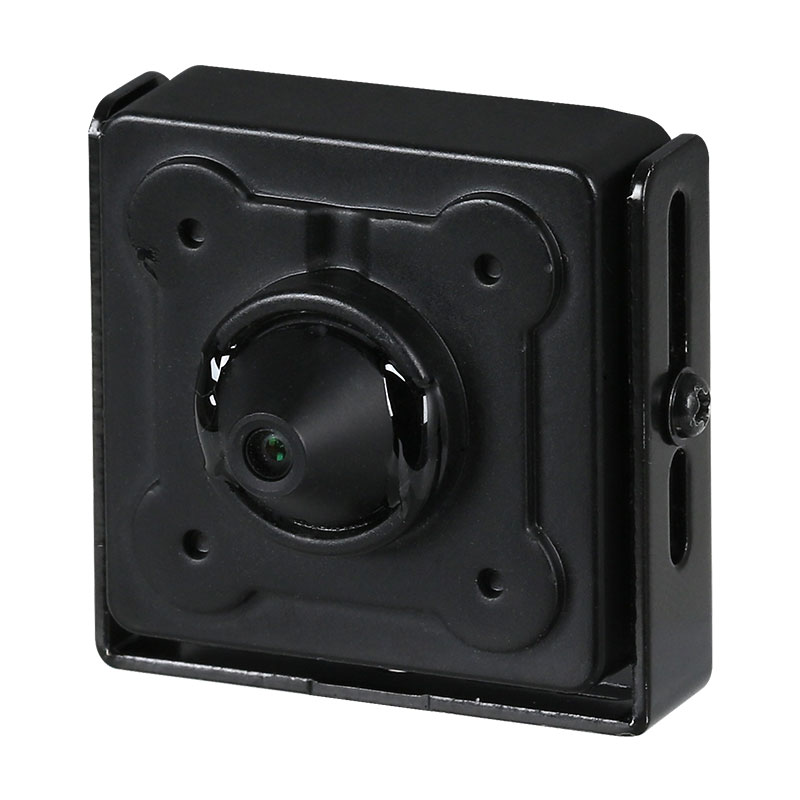

Securview Victory Series Pinhole Series 2.0MP Fixed HDCVI Pinhole Camera VSCVI2MPPH3.6
Securview Victory Series Pinhole Series 2.0MP Fixed HDCVI Pinhole Camera VSCVI2MPPH3.6 - Image 2

Securview Victory Series Pinhole Series 2.0MP Fixed HDCVI Pinhole Camera VSCVI2MPPH3.6

$170.86 inc GST

20 in stock

fast-delivery

Fast Shipping

On All Orders

worker

15+ Years

Industry Experience

Australian Company

Owned & Operated

30-days

Easy Returns

30 Days Peace Of Mind

SKU: VSCVI2MPPH3.6 Categories: , ,

Description

The VSCVI2MPPH3.6 is an HDCVI pinhole camera, designed for discreet surveillance applications such as at controlled ingress points, shelf surveillance, in vehicles, ATMs and more.

Camera features:
• Stream up to Full HD/2.0MP (1920 x 1080) at 25fps
• Fixed 3.6mm lens with 92° field of view
• Up to 700m video transmission over coaxial cable
• Discreet pinhole housing for covert surveillance
• True wide dynamic range (120dB)
• Auto digital day/night & 2D digital noise reduction
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)

Specifications

General
Image Sensor: 1/2.8″ 2.0 Megapixel CMOS
Max. Resolution: 2.0 Megapixel
Effective Pixels: 1937 (H) x 1097 (V)
Signal Noise Ratio: > 65dB
Camera
Lens: 3.6mm F2.4 Fixed Lens
Lens Type: Fixed
Angle of View: 92°
Focus: Fixed / 0.6m Min. Focus Distance
Minimum Illumination: 0.05 Lux at F2.4 (Colour) / 0.005 Lux at F2.4 (B&W)
Electronic Shutter: 1/4 ~ 1/100,000s
Day/Night: Auto (ICR) / Manual
Infrared Range: N/A
White Balance: Auto / Manual
Noise Reduction: 2D / 3D
Gain Control: Auto
Lighting Compensation: BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m): 51m
Observe (63px/m): 20m
Recognise (125px/m): 10m
Identify (250px/m): 5m
Video
Resolution: 1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate: 25fps (1080p and lower)
Transmission Distance: Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input: N/A
Alarm Interface: N/A
Video Output: BNC CVI HD output / Composite SD output (switchable)
Modes Supported: HDCVI, AHD, HDTVI & Composite
Mode Switching: OSD (via HDCVI recorder) / VSSELECT101 (UTC connector)
Synchronisation: Internal
OSD Menu: Support
Environmental
Ingress Protection: N/A
Vandal Resistant: N/A
Series: Pinhole Series
Housing: Metal
Camera Type: Pinhole
Tri-Axis Mounting: No
Power Input: 12VDC
Power Consumption: < 1.2W
Dimensions: 35.5 x 30 x 22mm
Weight: 0.09kg
Operating Environment: -30° to 60°C / RH90% (max)
Warranty (Years): 4

Shipping Weight and Dimensions Includes product packaging

Width: 84 mm
Height: 81 mm
Depth: 77 mm
Weight: 0.13 kg
