Description

Arc Flash Head and Face Protection for Electrical Work

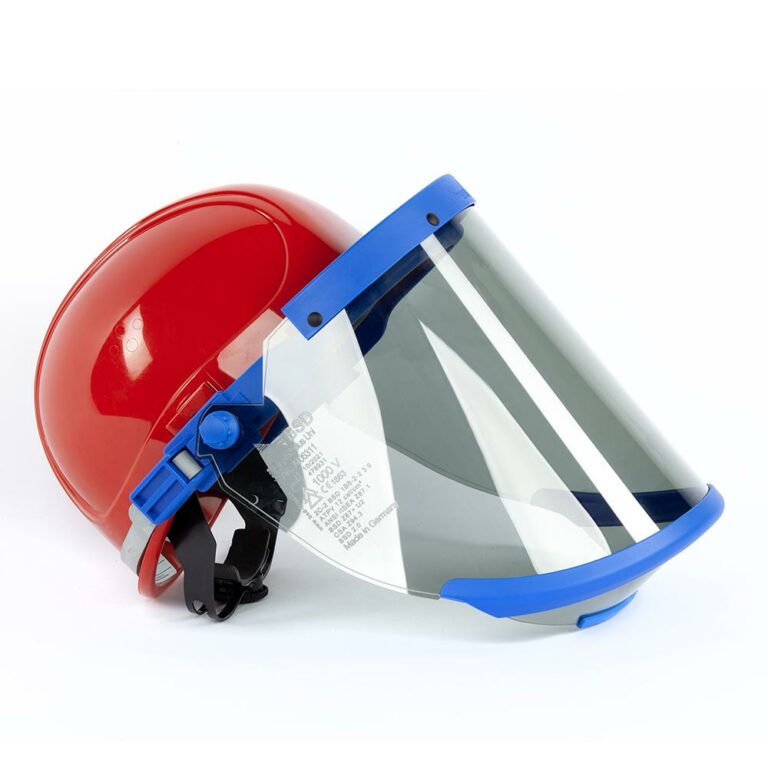

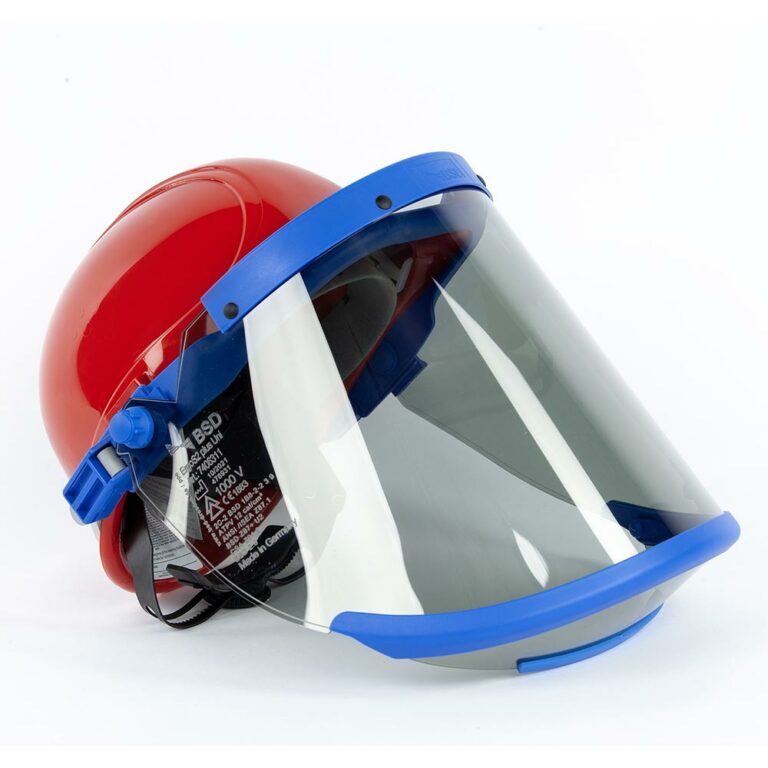

The BSD ARC-FS 2PLUS+H Arc Flash Face Shield and Helmet provides integrated head and face protection for electrical workers operating in low-risk arc flash situations. Rated HRC2 at 12 cal/cm², the system combines a protective face shield with a durable polyethylene helmet for practical jobsite protection.

The face shield features medium impact protection to help guard against impact hazards during an arc flash incident. Its clear/light smoke tint is designed to maintain true colour retention, while UV breakdown resistance supports durability during regular trade use. A tough chin guard adds additional coverage and protection around the lower face.

Comfortable and Adjustable Helmet Design

The included helmet uses a six-point webbed harness and a ratchet adjuster, allowing tradespeople to achieve a secure and comfortable fit. Its 51–64 cm adjustment range accommodates a broad range of head sizes. Constructed from durable polyethylene (PE), the helmet provides a practical foundation for the integrated arc flash protection system. The adjustable design is suited to electricians and maintenance professionals who need PPE that can be fitted quickly and worn during demanding work.

Practical PPE for Electrical Trades

The BSD ARC-FS 2PLUS+H is designed for electrical work where appropriate arc flash head and face protection is required. The face shield is supplied with a protective bag to help protect its surface when stored or transported between jobs. For applications requiring additional PPE, this system can complement a broader arc flash protection setup, including suitable balaclavas, clothing and other protective equipment selected according to the hazards and requirements of the specific task.

Key Specs

• Hazard Risk Category: HRC2
• Arc flash rating: 12 cal/cm²
• Medium impact face shield
• Clear/light smoke tint for true colour retention
• UV breakdown resistant face shield
• Tough chin guard
• Durable polyethylene (PE) helmet
• Six-point webbed harness
• Helmet adjustment range: 51–64 cm
• Ratchet helmet adjuster
• Protective face shield storage bag
• Standards: AS 4836, ASTM F2178, ANSI/ISEA Z87.1-2010, DIN EN 166, DIN EN 170, E DIN 58118 and DGUV GS-ET-29

Ideal For

• Licensed electricians performing electrical work
• Electrical contractors and field technicians
• Commercial and industrial maintenance teams
• Electrical installation and servicing applications
• Work requiring HRC2 arc flash head and face protection
• Trade businesses seeking integrated electrical PPE
