Description

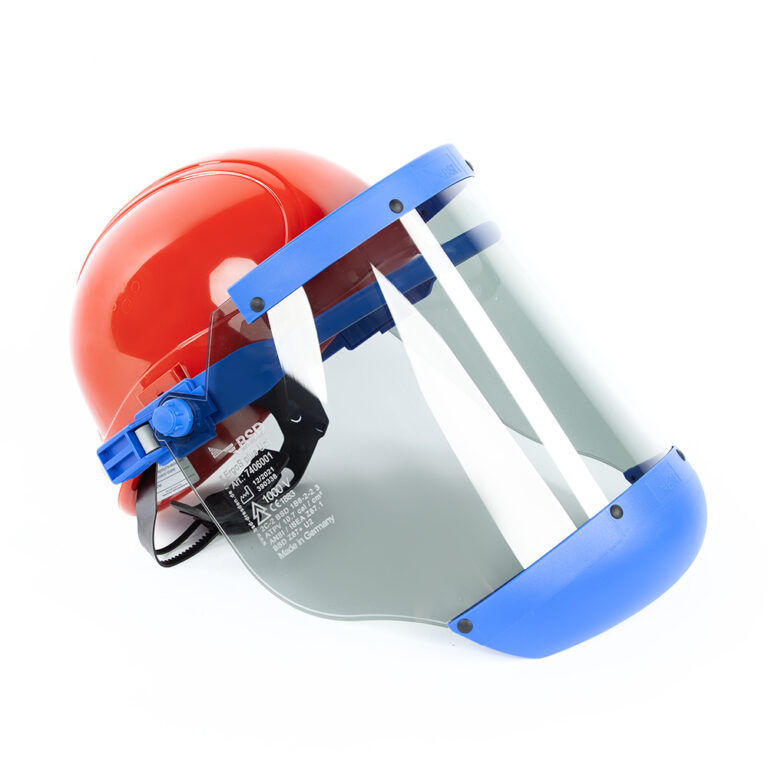

BSD Arc Flash Face Shield and Helmet HRC2 10.7cal/cm²

Electrical work in environments where arc flash hazards are present requires appropriate head and face protection. The BSD ARC-FS+H Arc Flash Face Shield and Helmet combines a protective face shield with a durable hard hat to provide a practical head protection solution for HRC2 applications up to 10.7 cal/cm².

Designed for professional electrical and maintenance work, this protection system incorporates features intended to help safeguard the face and head during an arc flash incident. The face shield provides medium impact protection while the integrated chin guard adds additional coverage around the lower face.

HRC2 Arc Flash Face Protection

The clear/light smoke face shield is designed to maintain true colour retention while providing visibility for electrical work. Its UV breakdown-resistant construction supports durability during regular use, while the tough chin guard provides additional protection. The shield is supplied with a protective bag to help protect its surface when stored or transported between jobs. With an HRC2 rating of 10.7 cal/cm², it is suited to applicable low-risk arc flash protection requirements.

Adjustable Protective Helmet

The accompanying helmet is made from durable polyethylene (PE) and incorporates a six-point webbed harness for secure positioning. Its 51–64cm adjustment range accommodates a range of head sizes for professional users. A ratchet adjuster makes it easier to achieve a secure, comfortable fit without complicated adjustment. This combination of helmet and face shield provides an integrated solution for electrical workers who need practical head and face protection on site.

Key Specs

• Product code: BSD ARC-FS+H
• HRC2 arc flash protection: 10.7 cal/cm²
• Medium impact protection: B
• Clear/light smoke tint for true colour retention
• UV breakdown-resistant face shield
• Tough protective chin guard
• Face shield supplied with protective storage bag
• Six-point webbed helmet harness
• Helmet adjustment range: 51–64cm
• Durable polyethylene (PE) helmet
• Ratchet adjustment system
• Standards: AS 4836, ASTM F2178, ANSI/ISEA Z87.1-2010, DIN EN 166, DIN EN 170, E DIN 58118 and DGUV GS-ET-29

Ideal For

• Licensed electricians working around electrical hazards
• Electrical contractors carrying out installation and maintenance work
• Electrical maintenance professionals
• Commercial and industrial electrical applications
• Work requiring HRC2 arc flash head and face protection
• Electrical teams needing adjustable head protection for different users
• Contractors seeking a combined helmet and face shield solution
