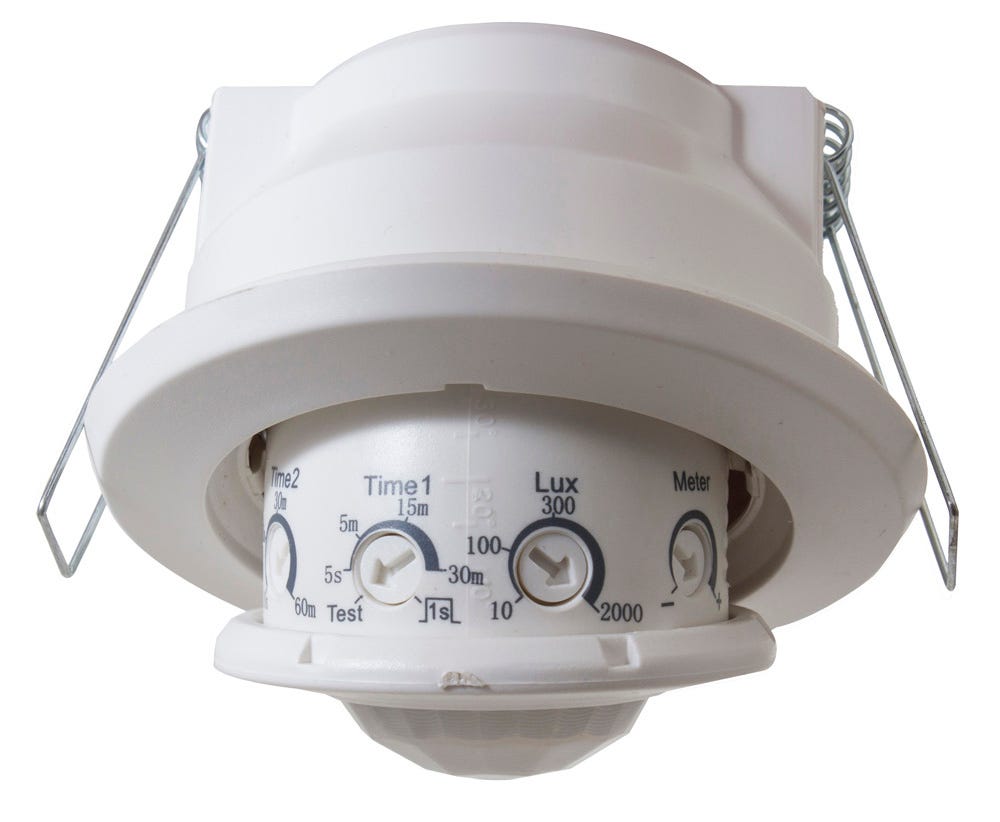

S-Click PRESENCE DETECTOR 360DEG 2 CH CEIL MOUNT CPD-360/2

Description

2 channel 360-degree ceiling mount presence detector with a unique flush mount feature for easy installation

Manual override, up to 1-hour time delay and auto-off settings from 5 seconds to 30 minutes

LED 400W, AC Halogen 1000W, Incandescent 2000W, Fluorescent 900VA

Lux adjustment from 10 to 2000 lux, with a unique lens tilt feature

10m detection range, add slave CPD-360/2S for 10m extra range

Product Description

The CPD-360/2 is a dual load presence detector for lighting and HVAC control. The detector features relays for outputs load I and load II respectively: load I allows for
lighting control and load II is potential free contact for HVAC control, such as heating, ventilation and air conditioning.

The device features down light construction to enable quick and seamless mounting in various ceiling board thicknesses. This omni-directional quad element detector
has a unique lens to provide “no dead spot” zones and superior sensitivity in its 360-degree detection coverage. The detection beams are well distributed and
concentrated over the detection coverage, allowing our CPD-360/2 to detect even the smallest movements.

When additional coverage is required, this detector can be used in conjunction with a compatible slave device. Our CPD-360/2S slave detector device is designed to
be connected to the power box of a CPD-360/2 in order to expand detection coverage.

Operating Specifications and Technical Data

LUX Adjustment: Adjustable from 10 Lux to 2000 Lux

Detection Range: Diameter 10m at 2.5 – 3m

Operating Temperature: 0 to +45 degrees Celsius

Environmental Protection: IP40 (Sensor), IP20 (Power box)

Length of signal cable: 1 metre

Circuit diagram and dimensions available, refer to the product User Manual.

Electrical Data

Rated Voltage: 230 +/- 10% 50/60H

Load I (L) for Lighting:

10 A (at 230 V AC, cos = 1), 3 AX (at 230 V AC, cos = 0.3)

Incandescent Lamp: max. 2000W

AC Halogen Lamp: max. 1000W

LV Halogen Lamp: max. 1000VA

Fluorescent Lamp: max. 900VA/100uF (compensated)

Fluorescent Lamp: max. 1000VA (uncompensated)

PL Lamp: max. 600VA

Load II (D1-D2) for HVAC:

Potential free contact for 250VAC or 30VDC Max:

Max 5A (cos =1)

Max 2A (cos =0.4) for 250VAC

Max 1/10HP (approx. 73W)

Technical Specifications

Detection Range (m): 10

Number of Channels: 2

Mounting Type: Ceiling

Surface Mount: No

Ceiling Mount: No

Lamp Compatibility: Incandescent, Halogen, Fluoroscent, PL
