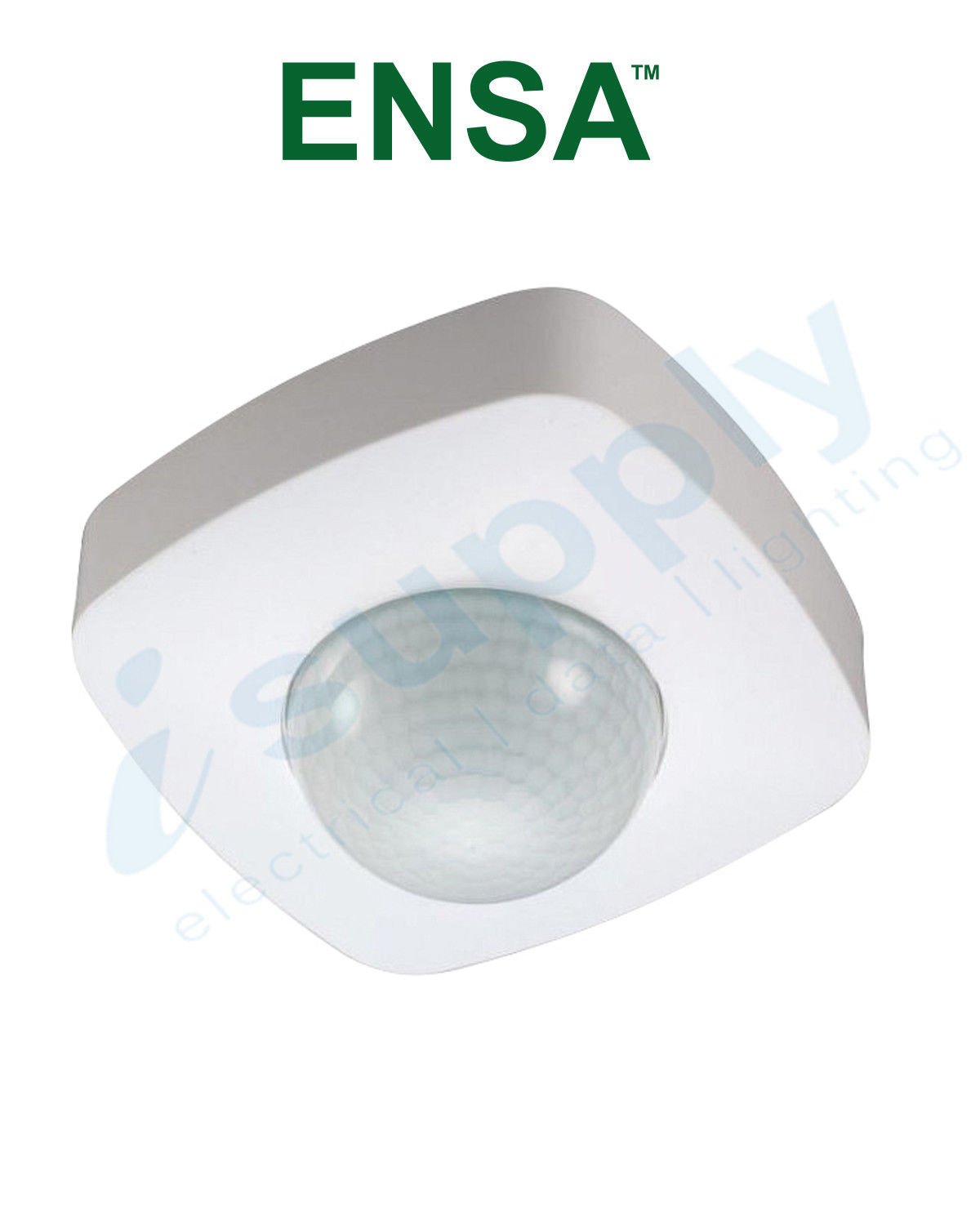

ENSA 360ø Ceiling Mount PIR Sensor Motion Activated Switch ENSA-PS4

Description

The ENSA-PS4 is an intelligent sensor switch, designed for ceiling mounting. It features configurable ambient light sensing, passive infrared motion detection and on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

Add three step energy saving to any light with sensor switches:

1) Daylight sensor: Activates motion sensor when lux levels fall below limit

2) Motion sensor: Detects movement, turns light on only when necessary

3) On-timer: Light-on duration is set only as long as is required

Product features:

• Automatically activate and deactivate lighting for energy efficiency

• Adjustable sensors: Daylight (3~2000lx) / On-timer (10s~30min)

• 360° circle / Ø20m microwave detection

• IP65 rated weather resistant for outdoor use

• 3 year warranty

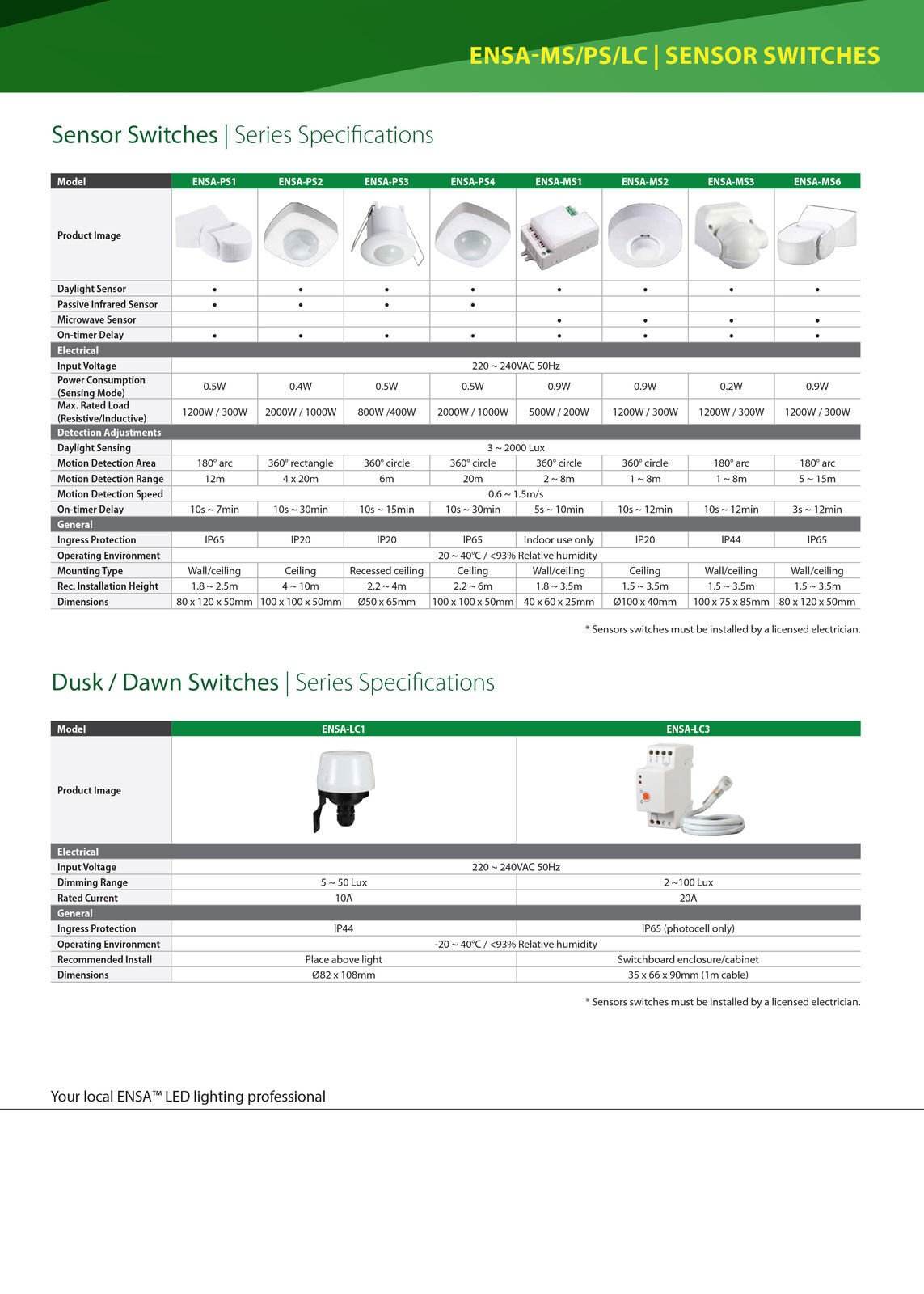

SPECIFICATIONS

Features:

Daylight Sensor: Yes

Motion Sensor Type: Passive Infrared

Electrical:

Input Voltage: 220 ~ 240VAC 50Hz

Power Consumption (Sensing Mode): 0.4W

Max. Rated Load (Resistive/Inductive): 2000W / 1000W

Detection:

Daylight Sensing: 3 ~ 2000 Lux

Motion Detection Area: 360° circle (Ø20m)

Motion Detection Adjustment: N/A

Recommended Installation Height: 2.2 ~ 6m

Motion Detection Speed: 0.6 ~ 1.5m/s

On-timer Delay: 10s / 30s / 90s / 5min / 10min / 30min

Stand-by Period: N/A

Stand-by Dimming: N/A

General:

Ingress Protection: IP65

Operating Environment: -20 ~ 40°C / <93% Relative humidity

Mounting Type: Ceiling

Dimensions: 100 x 100 x 50mm

Warranty (Years): 3

Shipping Weight and Dimensions

Includes product packaging

Width: 110 mm

Height: 110 mm

Depth: 70 mm

Weight: 0.20 kg
