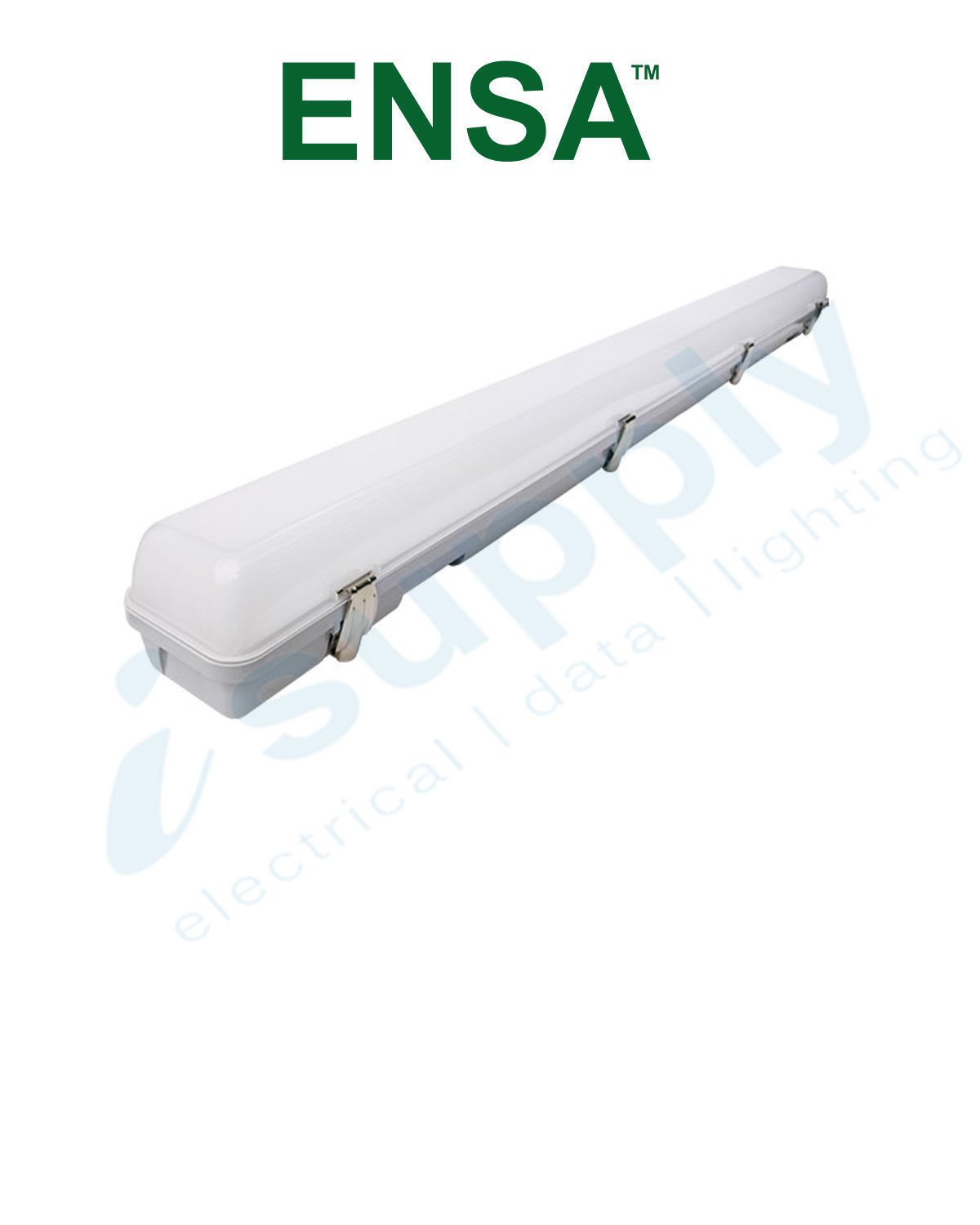

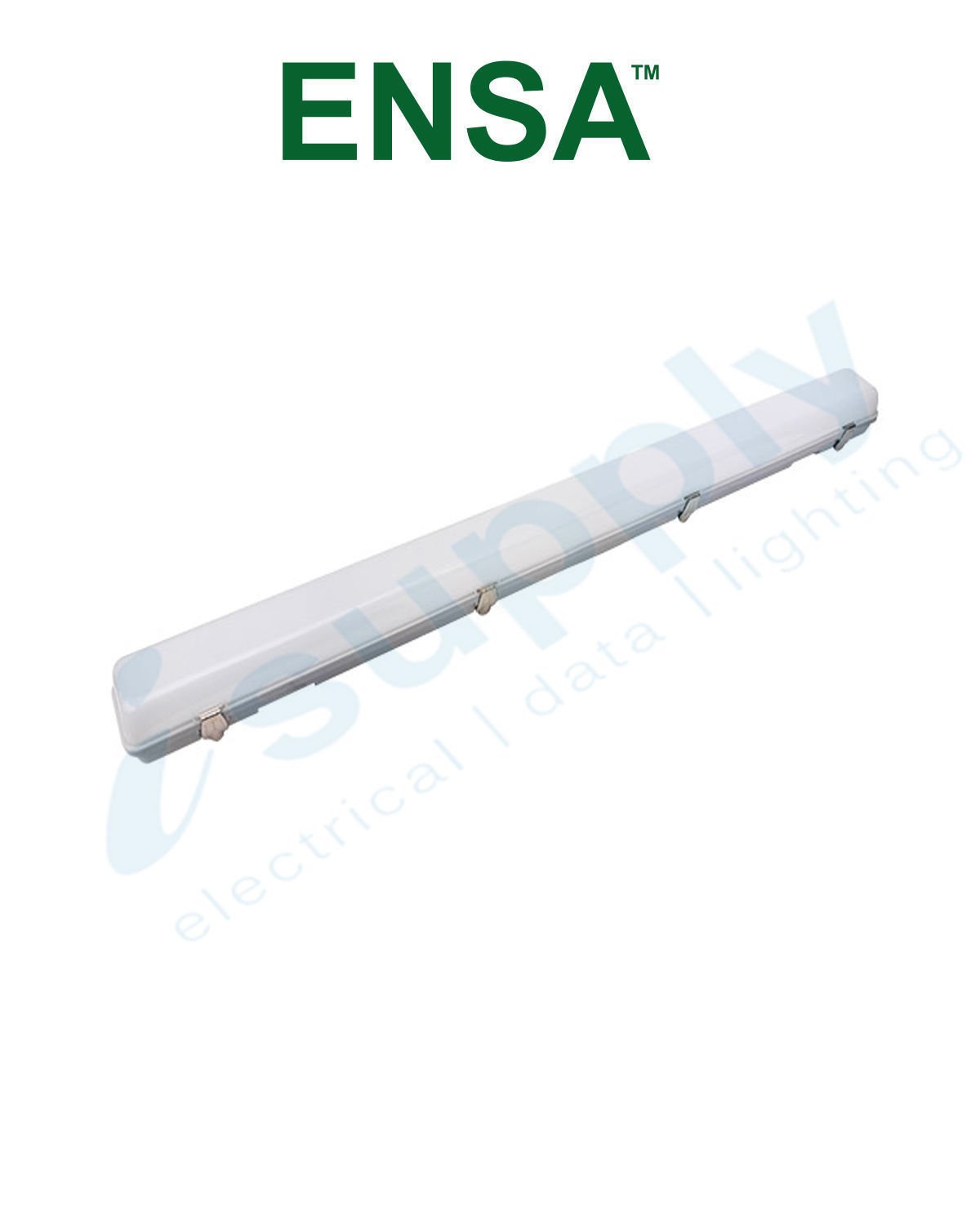

ENSA Intelligent 36W LED Batten Light (1200mm) LEDBT36WS2

Description

The ENSA™ LED batten light series comprises customisable energy efficient lighting solutions that deliver control over your lighting, without the need for a complex management system. Models are available as standard sensor batten lights or as an emergency sensor batten light fitted with an emergency backup battery for over 5 hours light uptime.

Intelligent emergency battens feature motion detection, on-time delay and standby time delay functions to tailor your light use for efficiency & practicality. Each model features 2-stage dimming and can be configured to stay at 100% brightness, to dim and then turn off, or to dim and stay dimmed.

• Tailor your light use to further compound energy savings.

• Adjustable light-use controls such as on-time delay.

• Sensor can detect motion through glass and thin walls.

• Built tough housing: IP65 dust and weather resistant.

• Emergency lighting models are AS2293.3 approved.

• Easy access TEST button for emergency light testing.

• NSW ESS Accepted

SPECIFICATIONS

Optical:

Light Output: 3900lm

Luminous Efficacy: 108lm/W

Colour Temperature: 6000K

Colour Rendering Index: > 80

Beam Angle: 123°

Light Decay: L70 at 54,000 hours

Rated Lifespan: 54,000 hours

Electrical:

Power Consumption: 36W

Input Voltage: 220 ~ 240VAC (50 ~ 60Hz)

Power Factor: >0.9

Battery Backup: N/A

Emergency Power Output: N/A

Control:

Motion Detection: 360° 5.8GHz Microwave / 8m max. radius / 50% ~ 100% adjustable (default: 100%)

On-Time Delay: 5s / 30s / 90s / 180s (default: 90s)

Dimmed Brightness: 20% / 40% / 60% / 100% (default: 20%)

Dimming Timeout: 0s / 90s / 180s / ∞s (default: ∞s)

Dimming Description: Turn off / Time delay / Always on

General:

Ingress Protection: IP65

Plug / Socket / Base: Internal terminal block

Installation Materials: Mounting clips, mounting screws & wall plugs, cable

Reflector / Diffuser: Frosted diffuser

Operating Environment: -20° ~ 40°C

Dimensions: 1260 x 108 x 85mm

Certifications: IPART

Other:

Ambient Light Sensor: N/A

Dimmable: Yes

Equivalent Wattage: N/A

Motion Activated: Yes

NSW ESS Accepted: Yes

Standby Light Modes: N/A

Warranty (Years): 3

Shipping Weight and Dimensions

Includes product packaging

Width: 100 mm

Height: 1,220 mm

Depth: 80 mm

Weight: 1.90 kg
