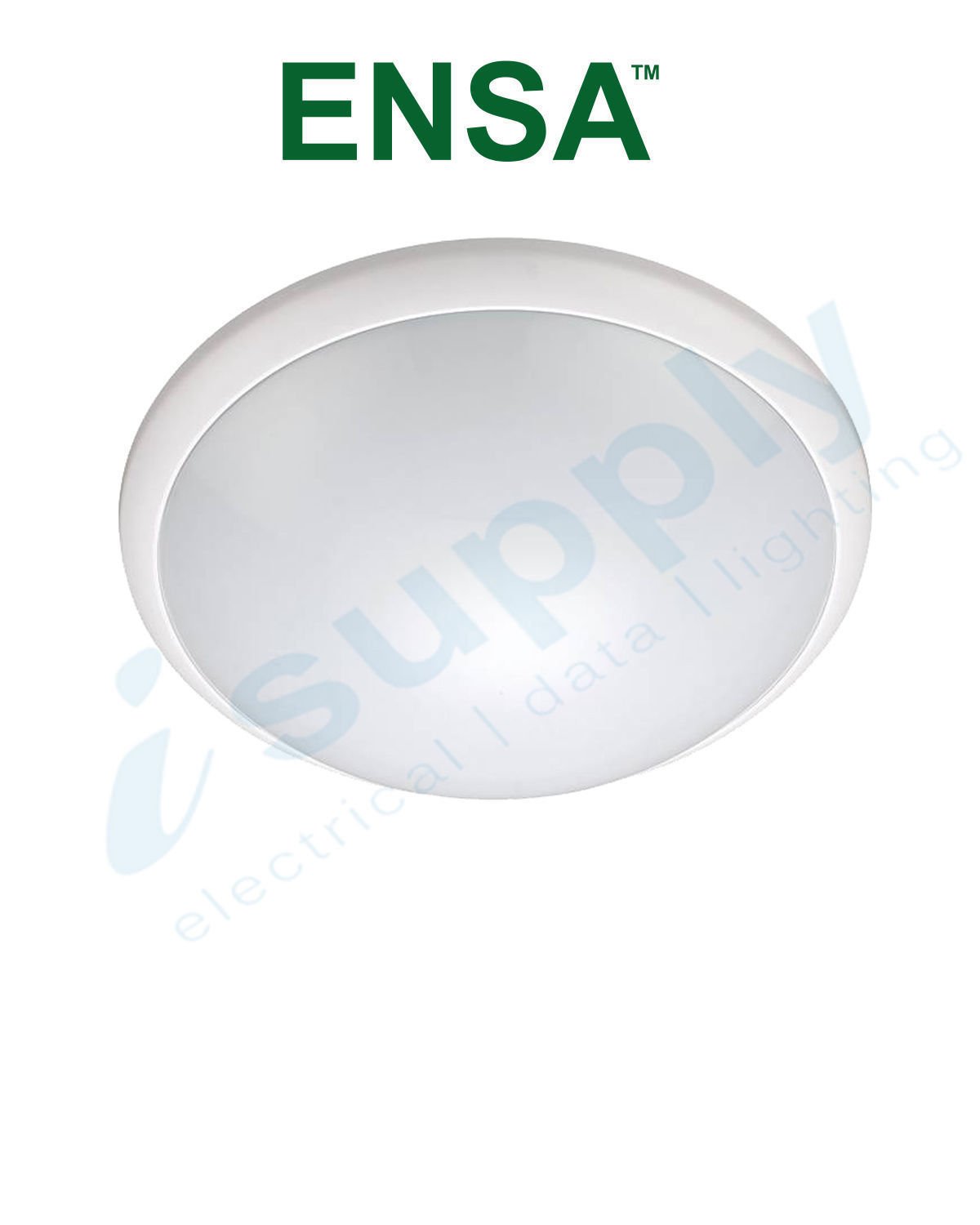

ENSA Intelligent 16W LED Sensor Down Light (3000K) LEDDL16W3KS

Description

The ENSA LEDDL16W3KS is an automated energy saving downlight. A truly customisable energy efficient lighting solution, it features a 5.8Ghz microwave motion sensor, light sensor and control electronics to compound the already superb energy savings of switching to LED over fluorescent.

When ambient light levels are above the set limit, the LEDDL16W3KS remains in standby mode, consuming only 0.9W. When ambient light levels fall below the set limit, the light will turn on when motion is detected. Motion and daylight sensitivity are adjustable and can be fine tuned to match the area’s needs.

Product Features:

• Light use is cleverly automatically controlled via daylight & motion sensors and the on-timer

• Adjustable daylight sensor: 3 ~ 2000 lux ambient light level adjustable

• Adjustable microwave motion sensor: 360° detection in a 1m ~ 8m radius

• On-time adjustable: from 10s ~ 12min – the light stays on for a set time after no movement detected;

• During this time, if movement is detected, the on-time delay timer is reset automatically

• Comes ready for installation in IP44 housing

* This professional light must only be installed by a qualified electrician.

SPECIFICATIONS

Optical:

Light Output: 1200lm

Luminous Efficacy: 75lm/W

Colour Temperature: 3000K

Colour Rendering Index: > 80

Beam Angle: 120°

Light Decay: <15% at 10,000 hours Rated Lifespan: 30,000 hours Electrical: Power Consumption: 16W Input Voltage: 220-240VAC (50Hz) Power Factor: > 0.9

Dimmable: No

Motion Activated: N/A

General:

Ingress Protection: IP44

Plug / Socket / Base: Internal terminal block

Reflector / Diffuser: Frosted diffuser

Housing Adjustments: N/A

NSW ESS Accepted: No

Operating Environment: -20° ~ 50°C

Dimensions: Ø300 x 115mm
Other:

Ambient Light Sensor: < 3 ~ 2000lx (adjustable)

Battery Backup: N/A

Dimmed Brightness: N/A

Dimming Description: N/A

Dimming Timeout: N/A

Emergency Brightness: N/A

Equivalent Wattage: 75W halogen

Motion Detection: 360° Microwave (5.8GHz) / 8m radius (adjustable)

On-Time Delay: 10s ~ 12min (adjustable)

Standby Light Modes: Off (0% brightness)

Vandal Resistance: N/A

Warranty (Years): 3

Shipping Weight and Dimensions

Includes product packaging

Width: 310 mm

Height: 310 mm

Depth: 120 mm

Weight: 1.40 kg
