ENSA 2 Channel Mains Voltage RF Receiver ENSA-RS1

Description

Automate your lighting with the ENSA-RS1 and Watchguard™ universal transmitters.

Product features:

• 240VAC 433.92MHz fixed code receiver with up to 100m RF range (LoS)

• Remote control your LED lighting for added security and energy savings

• Integrate wireless PIR and reed switches for automatic activation of lights

• Features 2 programmable relay outputs (latched or timed)

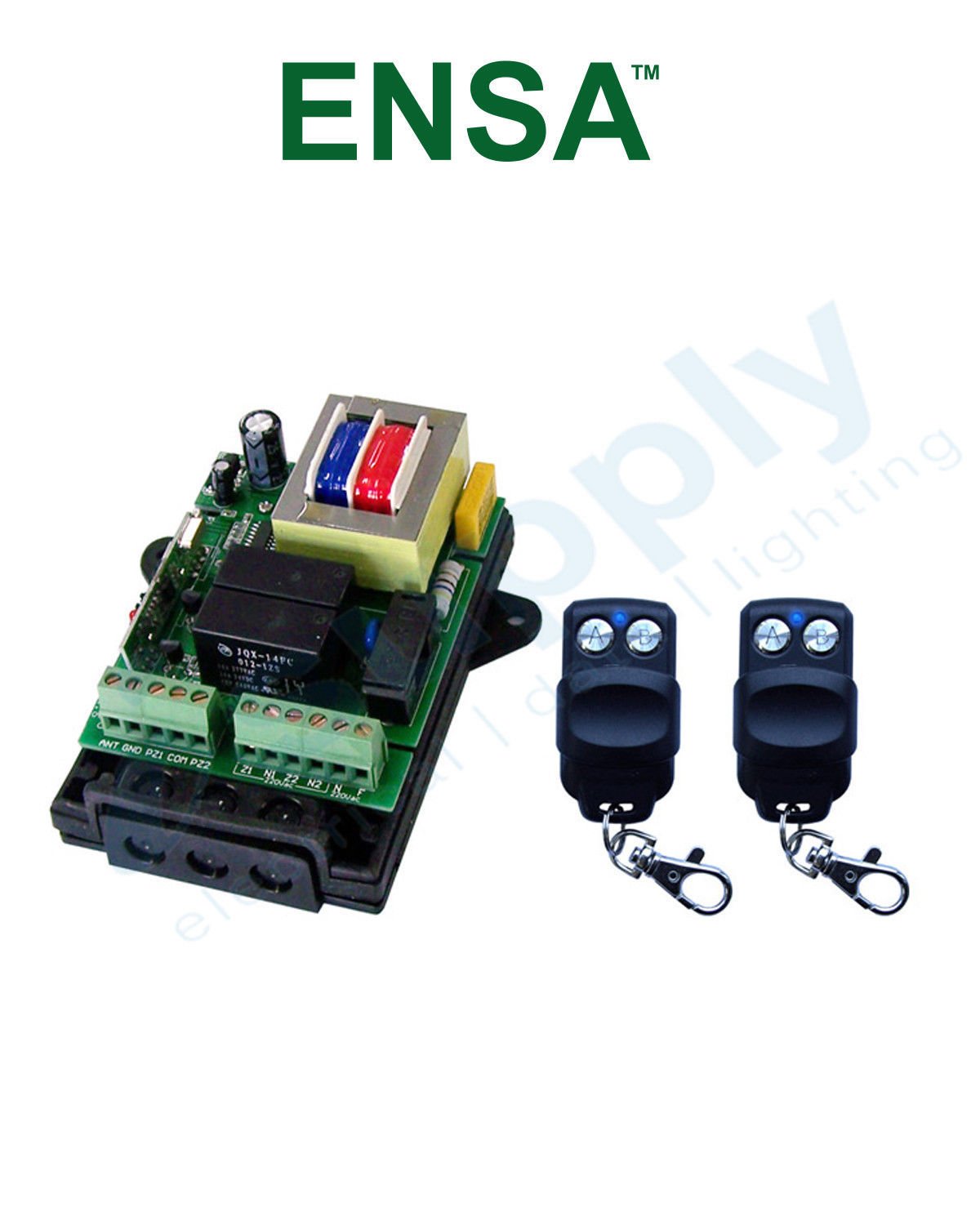

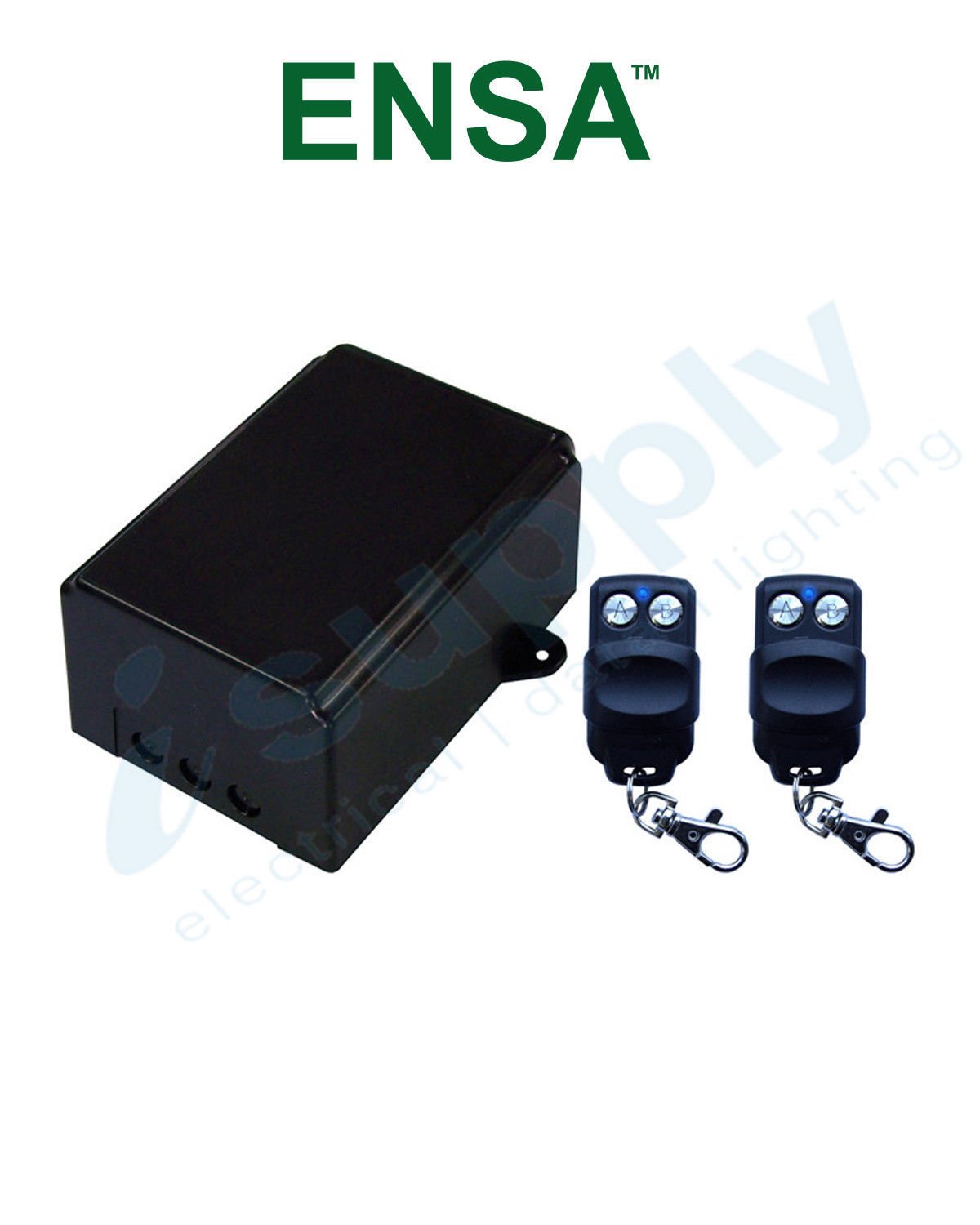

• Comes standard with two remote control keyfobs

• Adding outdoor remote control function for your light switch

• Add up to 128 remotes or universal transmitters

• IP55 weather/dust resistant; suitable for mounting with lighting

• 3 year warranty

Integrates with Watchguard™ wireless universal transmitters*:

PIRWOD Wireless outdoor passive-infrared detector

WREEDI Wireless reed switch indoors only

PIRW3 Wireless passive-infrared detector

* Universal transmitters require modification and are sold separately.

SPECIFICATIONS

Frequency: 433.92MHz fixed code

Included Remotes: 2

Ingress Protection: IP55

Input Voltage: 240VAC 50 ~ 60Hz

Maximum Codes: 128

Maximum Rated Load: 1000W

Operating Environment: -20 ~ 55°C

Programmable Outputs: 2 relay outputs (latched or timed)

Range (LoS): 100m

Warranty (Years): 3

Shipping Weight and Dimensions

Includes product packaging

Width: 210 mm

Height: 120 mm

Depth: 70 mm

Weight: 0.50 kg
