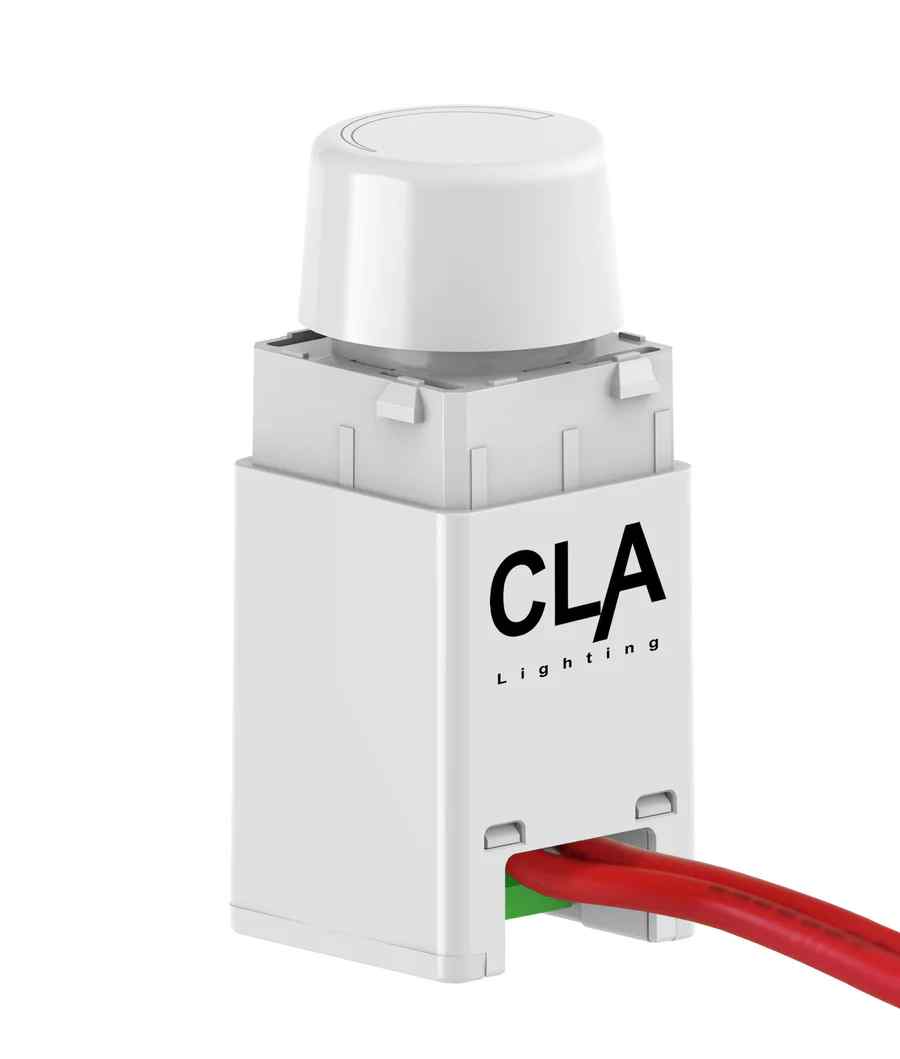

CLA LYNX1: Trailing Edge Rotary Dimmer

Description

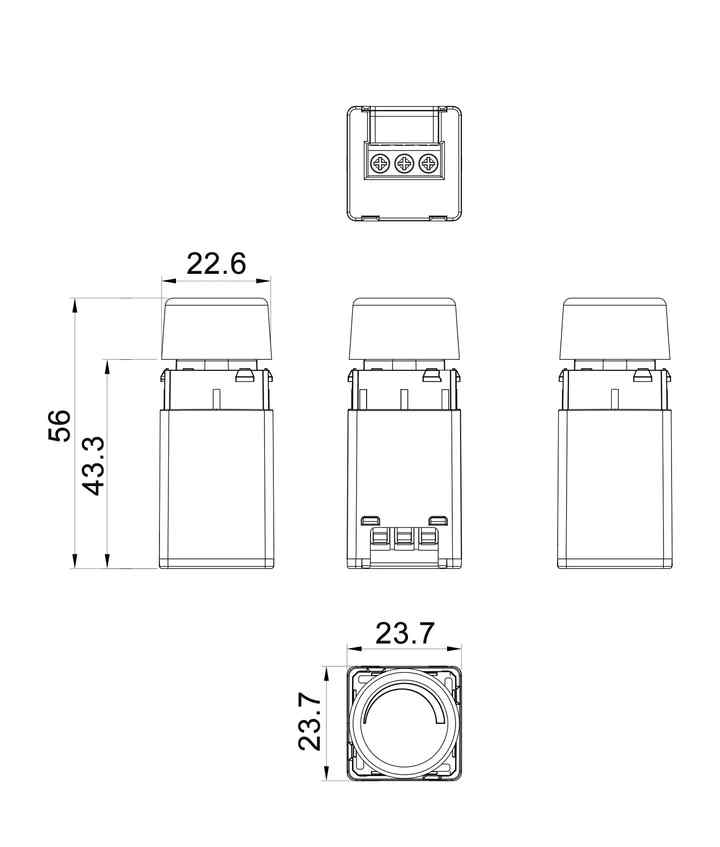

Fits Australian standard wall switch plate apertures (eg. the trader ranges, plus HPM, Legrand and Clipsal ranges)
Separately switched 2-wire design-no neutral wire connection required for wall plate retrofit installation
Inbuilt overload protection and short circuit protection
Incorporates a thermal fuse
Rotary control
Protected against damage from connection to incompatible inductive load types (ig. motor loads), via conduction angle wind-back
Complies with all relevant Australian standards
“Soft-start” help prolong lamp and driver life
Rated power: 300W
Operating temperature: 0 to 35°C
Warranty: 3 year replacement warranty
Product Application:

Can directly replace the existing wall switch to adjust dimmable LED lamp, halogen lamp and dimmable CFL.
Suitable for public places such as family bedroom. apartment, hotel, and hospital and so on.
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)
