Wireless Surveillance

Specifications

Camera
Image Sensor
1/3″ CMOS Image Sensor
Effective Pixels
2560 (H) x 1440 (V)
Infrared Illumination
6x IR LEDs
Infrared Range
10m
Lens
Lens / Iris
Fixed Lens (16x Digital Zoom)
Field Of View
115? (Diagonal)
Focus
Fixed
Video
Resolution
1440p / 4.0MP (2560 x 1440)
Frame Rate
Up to 15fps
Video Compression
H.265
Motion Detection
Type
Passive Infrared (PIR)
Range
10m (100? arc)
3G / 4G Connectivity
Bands
4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD: B40, WCDMA: B1/B2/B5/B8, 3G: N/A
Transmission
LTE FDD: Max. 10Mbps(DL), Max. 5Mbps(UL), LTE TDD: Max. 8.96Mbps(DL), Max. 3.1Mbps(UL)
Interface
Audio Interface
High quality speaker & microphone
Audio Alerts
Siren / Customise voice recordable alerts
Other Alerts
Instant email alerts and push notifications
Local Storage
Supports up to 128GB micro SD card
Cloud Storage
Supports Reolink Cloud
Environmental
Battery
7800mAh rechargeable battery (Battery life varies based on settings, usage & temperature.)
Solar
Can be powered by Reolink solar panels
DC Power
Can be powered by 5V/2A USB power adapter
Ingress Protection
Yes
Weather Resistance
IP65
Operating Conditions
-10?C ~ 55?C
Camera Type
Bullet
Dimensions
?75 x 194mm (2.95 x 7.63 in)
Net Weight
0.45kg (with battery)
Warranty (Years)
2
Shipping Weight and Dimensions

Includes product packaging

Width
170 mm
Height
220 mm
Depth
80 mm
Weight
1.00 kg

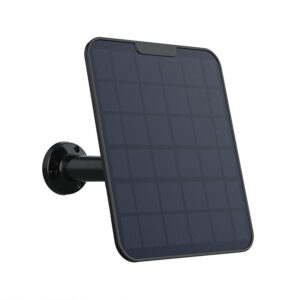

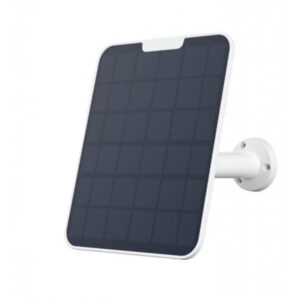

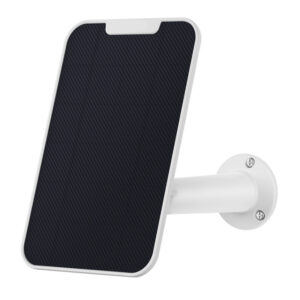

Specifications

Cable Length
4m (13ft)
Dimensions
210.6mm x 174.6mm x 185mm
Installation
360? wall mount for adjustable positioning and tilt
IP Rating
IP65
Max. Current
960mA
Max. Power
6W
Micro USB Input
1
Operating Temperature
-10? ~ 55?
Voltage
6V
Weigh
280g
Warranty (Years)
2
Shipping Weight and Dimensions

Includes product packaging

Width
352 mm
Height
472 mm
Depth
163 mm
Weight
1.30 kg
