Copper Lugs Special

Copper lug 35 sq. mm Palm 1xM16 stud Made from pure tinned copper

Specially made for terminating large cables to circuit breakers Narrow palm design fits int circuit breaker connection tunnel Unique bellmouth for easy insertion of fine stranded conductors Made from 99.9% high conductivity copper Complies to AS/NZS4325.1

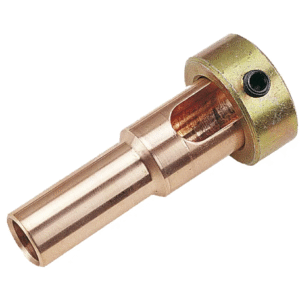

Designed for terminating copper conductors onto a 12mm copper switchgear stem Consists of a copper lug and a steel clamping collar Clamping collar incorporating Allen head grub screw Clamping collar made from zinc plated steel

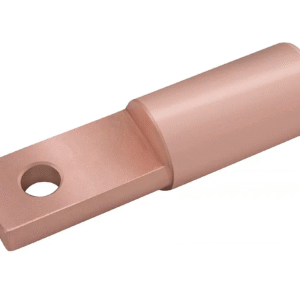

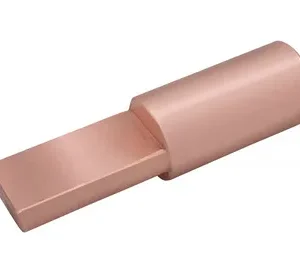

Copper circuit breaker lug 500 sq. mm Blank palm Made from pure tinned copper

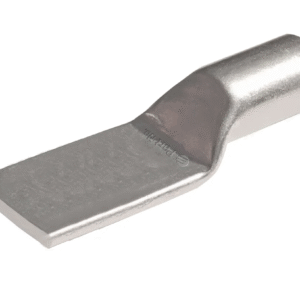

Copper long palm long barrel 150 sq. mm lug Long palm no stud holes Made from high conductivity annealed Copper Crimped with CABAC and MSS Power standard tooling and dies Complies with AS4325.1

Made from high conductivity annealed copper and tinned Crimped with CABAC and MSS Power recommended standard dies Suitable for most hazardous and severe fault current applications Heavy duty lug with sealed palm and palm junction Complies with AS4325.1

Made from high conductivity annealed copper and tinned Crimped with CABAC and MSS Power recommended standard dies Suitable for most hazardous and severe fault current applications Heavy duty lug with sealed palm and palm junction Complies with AS4325.1

Made from high conductivity annealed copper and tinned Crimped with CABAC and MSS Power recommended standard dies Suitable for most hazardous and severe fault current applications Heavy duty lug with sealed palm and palm junction Complies with AS4325.1
