VIP Vision Residential IP Intercom Monitor with Handset (White) INTIPMONDWH2

Description

The INTIPMONDWH is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor communicates with the apartment door station via handset, and features live-view of the door station camera.

Product features:

• 1024 x 600 7″ TFT capacitive touch screen

• Record and snapshot video calls/messages

• All calls and messages logged

• Prevent unwanted calls with Do Not Disturb mode

• Door station & IP camera live viewing

• Alarm system integration

• MicroSD storage (up to 32GB)

• Wall-mounted handset design

*Connection via LAN only.

*Requires an IP intercom Management Server (INTIPSIPSRV) for SIP firmware installations.

*Not compatible with INTIPRDSDB or other door stations that do not have SIP firmware available.

SPECIFICATIONS

Monitor:

Main Processor: Embedded Microprocessor

Video Compression: H.264

Audio Input: Omni-directional Microphone / Handset

Audio Output: Embedded loudspeaker / Handset

Bidirectional Talk: Support

Display Size: 7” Colour TFT LCD (1024 x 600) Capacitive Touchscreen

Display Resolution: 1024 x 600

Alarm Support: 6 Input / 1 Output

Operational Input: Capacitive Touchscreen / Mechanical Keys

Internal Capacity: MicroSD Slot, up to 32GB

Ethernet: 10 / 100Mbps Self-adaptive

Network Protocol: SIP

Environmental:

Operating Temperature: -10 ~ +55°C / 10 ~ 90%RH (max.)

Installation: Surface Mountable. Optional bracket (INTIPMONDH-B) for desktop mount

Power Input: 12VDC, PoE (802.3af)

Power Consumption: Standby < 3.5W / Operation < 5W

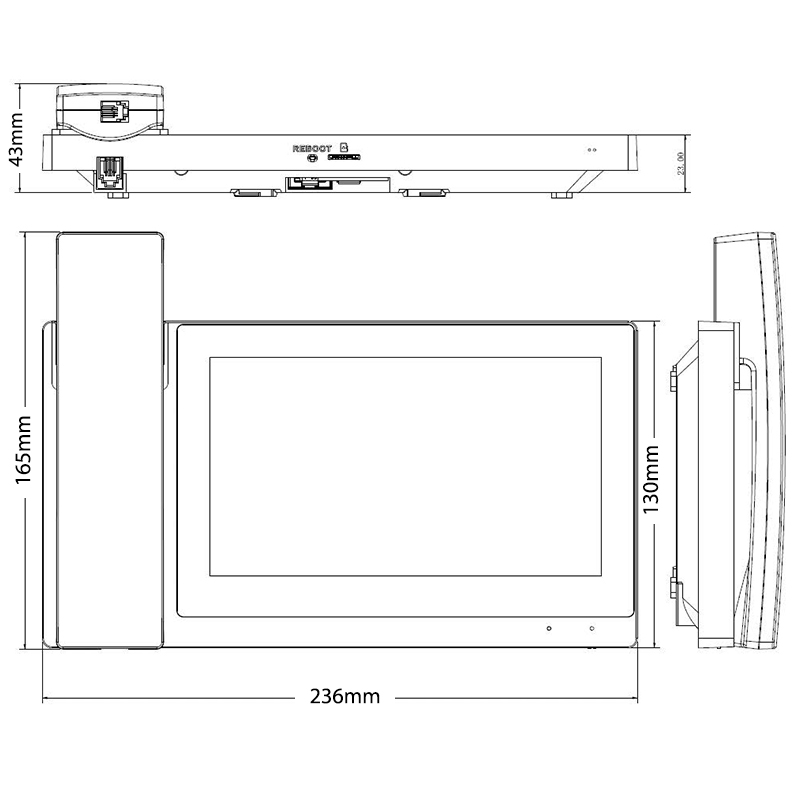

Dimensions: 236mm x 166mm x 42mm

Weight: 0.90kg

Other:

Series: D Series

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 160 mm

Height: 160 mm

Depth: 130 mm

Weight: 0.85 kg
