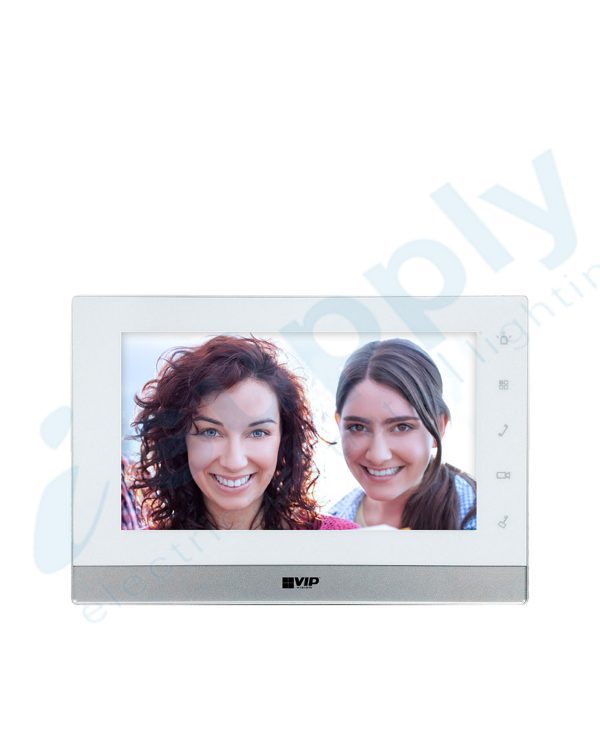

VIP Vision 2-Wire Residential IP Intercom Monitor INTIPMONFB2W

Description

The INTIPMONFB2W is a part of the VIP Vision range of elegant indoor monitors to accompany your 2-Wire video intercom solution. The unit is operated via the resistive touchscreen, with common functions completed quickly via buttons on the front of the monitor.

Features include:

• 7” TFT LCD resistive touchscreen controlled, 2-wire intercom monitor

• Surface mount; white gloss and brushed aluminium finish

• 800 x 480 pixels resolution / Internal SD card storage (accessible)

• Omni-directional microphone with two-way talk support

• Supports 6 channels alarm input; 1 channel alarm output

• Stores missed calls / received calls / placed calls / audio-video messages

• Monitor door station camera mode / DND / Connect to multiple stations

• TCP/IP network protocol; 10/100Mbps self-adaptive Ethernet

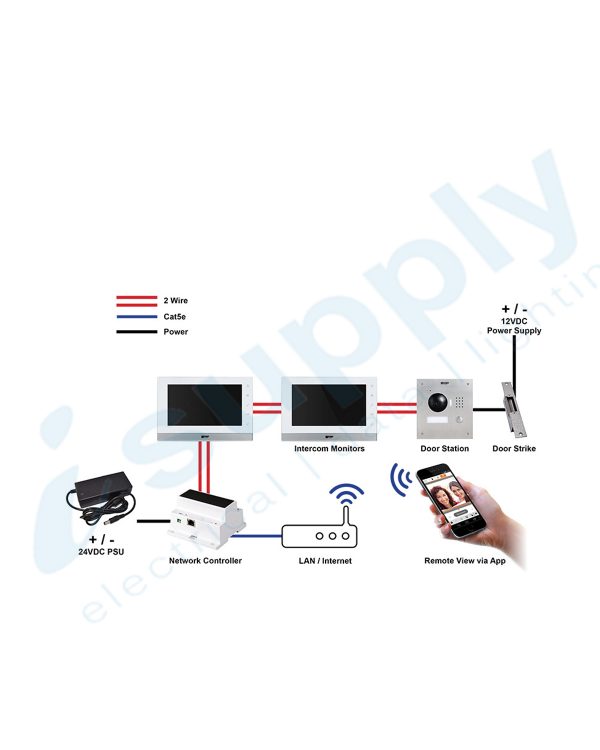

• Supports network and 24VDC power over 2-wire bus

• Maximum cable run distance of 100m (total)

• Includes surface mounting components

SPECIFICATIONS

Monitor:

Main Processor: Embedded Microprocessor

Video Compression: H.264

Audio Input: Omni-directional Microphone

Audio Output: Embedded loudspeaker

Bidirectional Talk: Support

Display Size: 7” Colour TFT LCD

Display Resolution: SVGA (800 x 480)

Alarm Support: Yes; 6 Input channels / 1 output channel

Operational Input: Resistive Touchscreen / On-unit Soft Keys

Internal Capacity: MicroSD Slot, up to 32GB

Ethernet: 10M/100Mbps Self-adaptive

Network Protocol: TCP/IP

Environmental:

Operating Temperature: -10 ~ +60°C / 10 ~ 90%RH (max.)

Installation: Surface wall mounting bracket & kit

Power Input: 24VDC

Power Consumption: Standby < 1.5W / Operation < 7W Dimensions: 200mm x 136mm x 22mm Weight: 0.80kg Warranty (Years): 4 Shipping Weight and Dimensions

Includes product packaging

Width: 155 mm

Height: 153 mm

Depth: 112 mm

Weight: 0.30 kg
