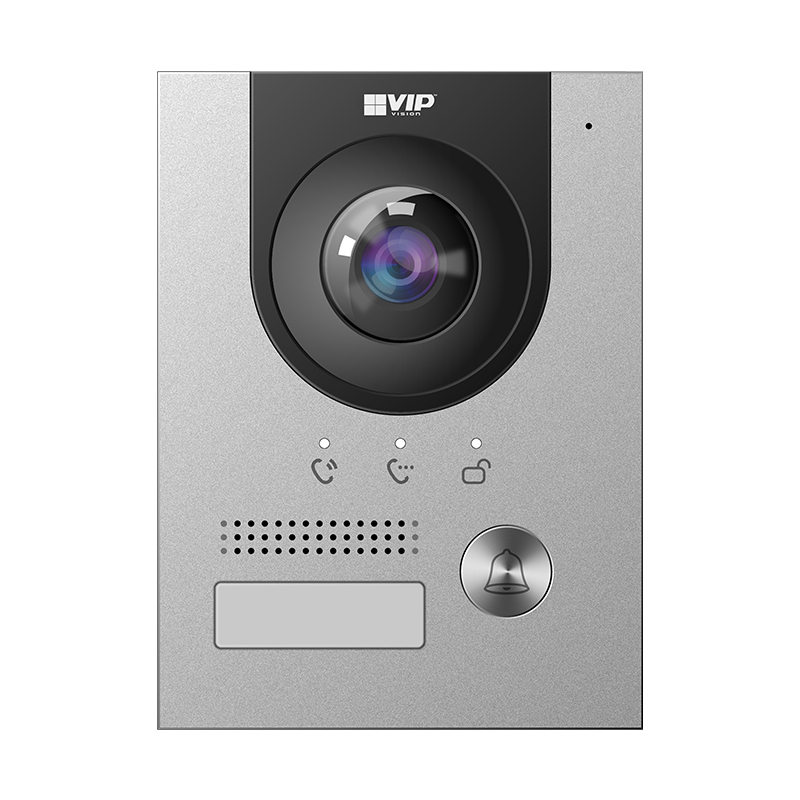

VIP Vision Residential PoE IP Intercom Door Station INTIPRDSG2
$326.00 inc GST
Specifications
General
Main Processor
Embedded Microprocessor
Button Illumination
None
Card Support
N/A
Tamper Detection
Yes
Internal MicroSD Slot
Yes, up to 64GB
Max. Additional Door Stations
20
Max. Indoor Monitors
10
App Connection
QR Code
Camera
Camera System
1/2.5??, 2.0 Megapixel CMOS camera with 1.9mm lens (Horizontal FoV: 169?), WDR
Low-Light Application
Infrared
Input / Output
1 x alarm input / 1 x alarm output / 1 x RS485
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network
N/A
Environmental
Vandal Resistant
IK07
Ingress Protection
IP55
Construction
Aluminium

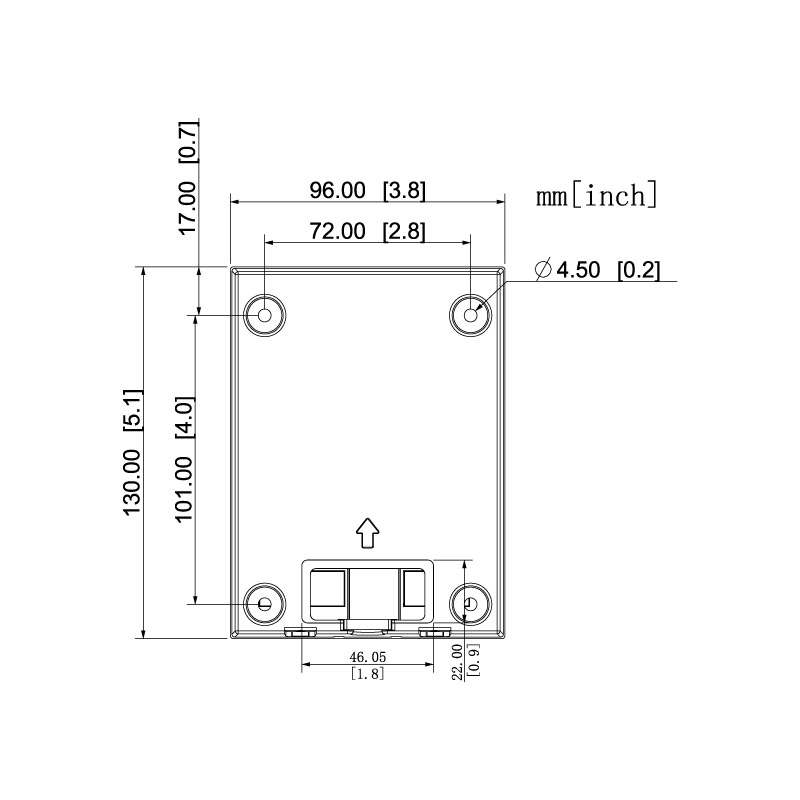

Installation Options
Supports surface box and flush box mount
Power Input
48VDC 1A / PoE (802.3af)
Power Consumption
<12W
Weight
0.35kg

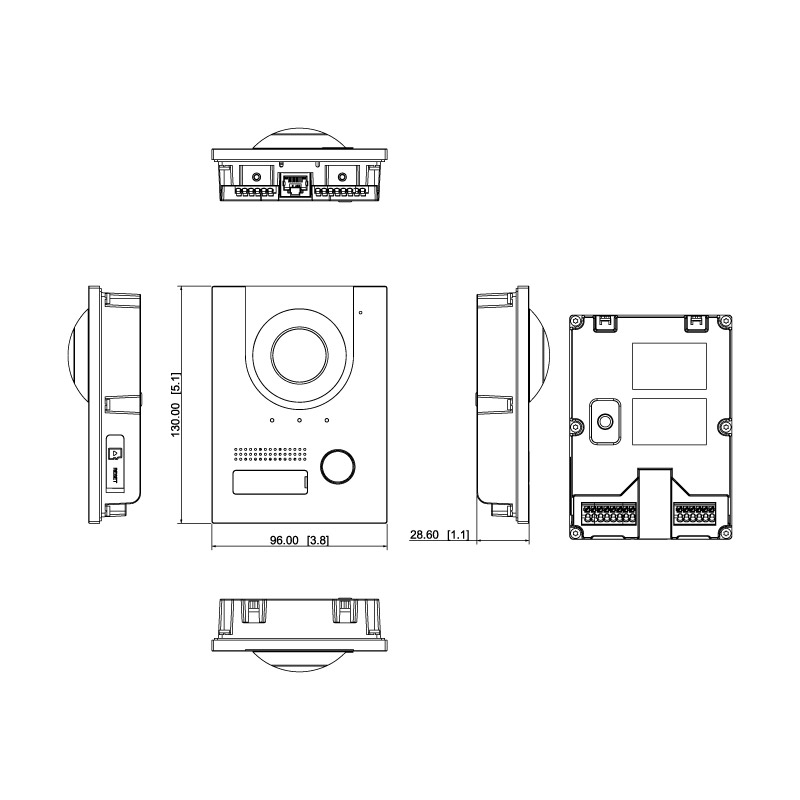

Dimensions
130 x 96 x 29mm
Other
Keypad
N/A
Series
G Series
Warranty (Years)
4
Shipping Weight and Dimensions
Includes product packaging
Width
120 mm
Height
150 mm
Depth
60 mm
Weight
0.50 kg
25 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
The INTIPRDSG2 is a single channel video intercom solution ideal for homes and single-premises buildings. This door station features a 2.0MP camera, all in a stylish aluminium weather and vandal resistant body.
Product features:
? 1/2.5?? 2.0MP 1.9mm lens camera with 169? FOV
? Built-in microphone and speaker for 2-way talk
? Connect with intercom monitor(s) via Ethernet
? Alarm and RS485 input/output relays
? Intuitive, easy-to-use interface
? Weather and vandal resistant IP55/IK07 aluminium body
? Power via 48VDC or Power over Ethernet (802.3af)
? Flush and surface mount installation options
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.
