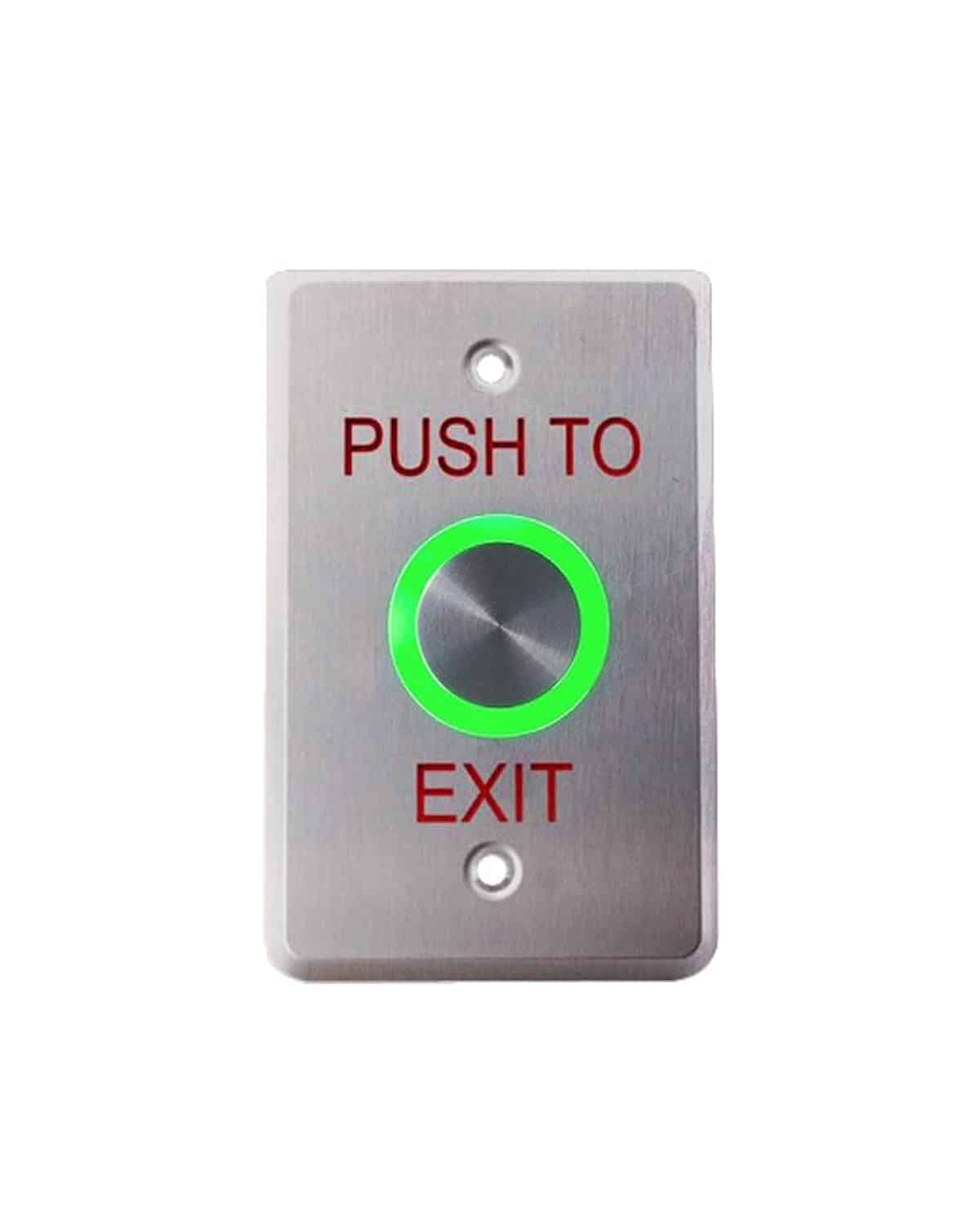

Watchguard Touch Door Release Button ACDSW102
$120.20 inc GST
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
5 in stock
Description
The ACDSW101 is a slim, aluminium & stainless steel door release button with 2 output contacts for use in access control systems.
• For electronic door locks/strikes
• 2 output contacts (N.O, COM)
• Aluminium, stainless steel button
• 3A at 36VDC max. current rating
• Stress tested up to 500,000 uses
• Overall dimensions: 86 x 28 x 20mm
SPECIFICATIONS
Warranty (Years):1
Shipping Weight and Dimensions
Includes product and packages
Width: 43mm
Height: 105mm
Depth: 89mm
Weight: 0.06kg
Additional information
| Manufacturer |
|---|
