Watchguard Heavy Duty Door Release Button ACDSW100
$71.00 inc GST
5 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description

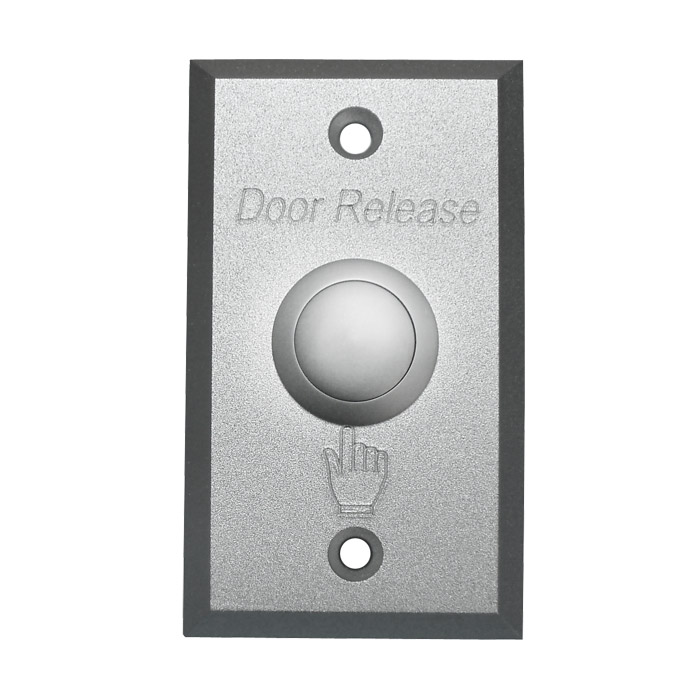

The ACDSW100 is a sandblasted aluminium door release button with 3 output contacts for use in access control systems.
• For electronic door locks/strikes
• 3 output contacts (N.O, N.C, COM)
• Sandblasted aluminium finish
• 3A at 36VDC max. current rating
• Stress tested up to 500,000 uses

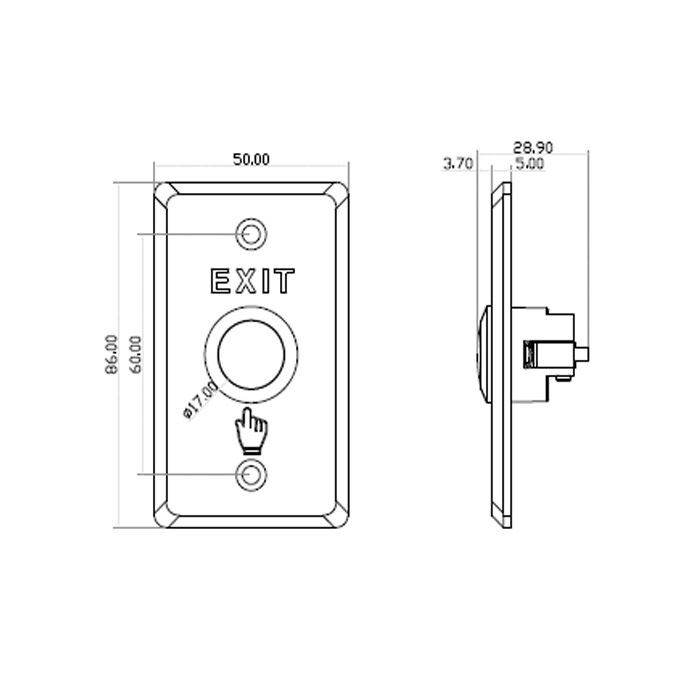

• Overall dimensions: 86 x 50 x 28.9mm
SPECIFICATIONS
Warranty (Years):1
Shipping Weight and Dimensions
Includes product and packages
Width: 43mm
Height: 105mm
Depth: 89mm
Weight: 0.14kg
