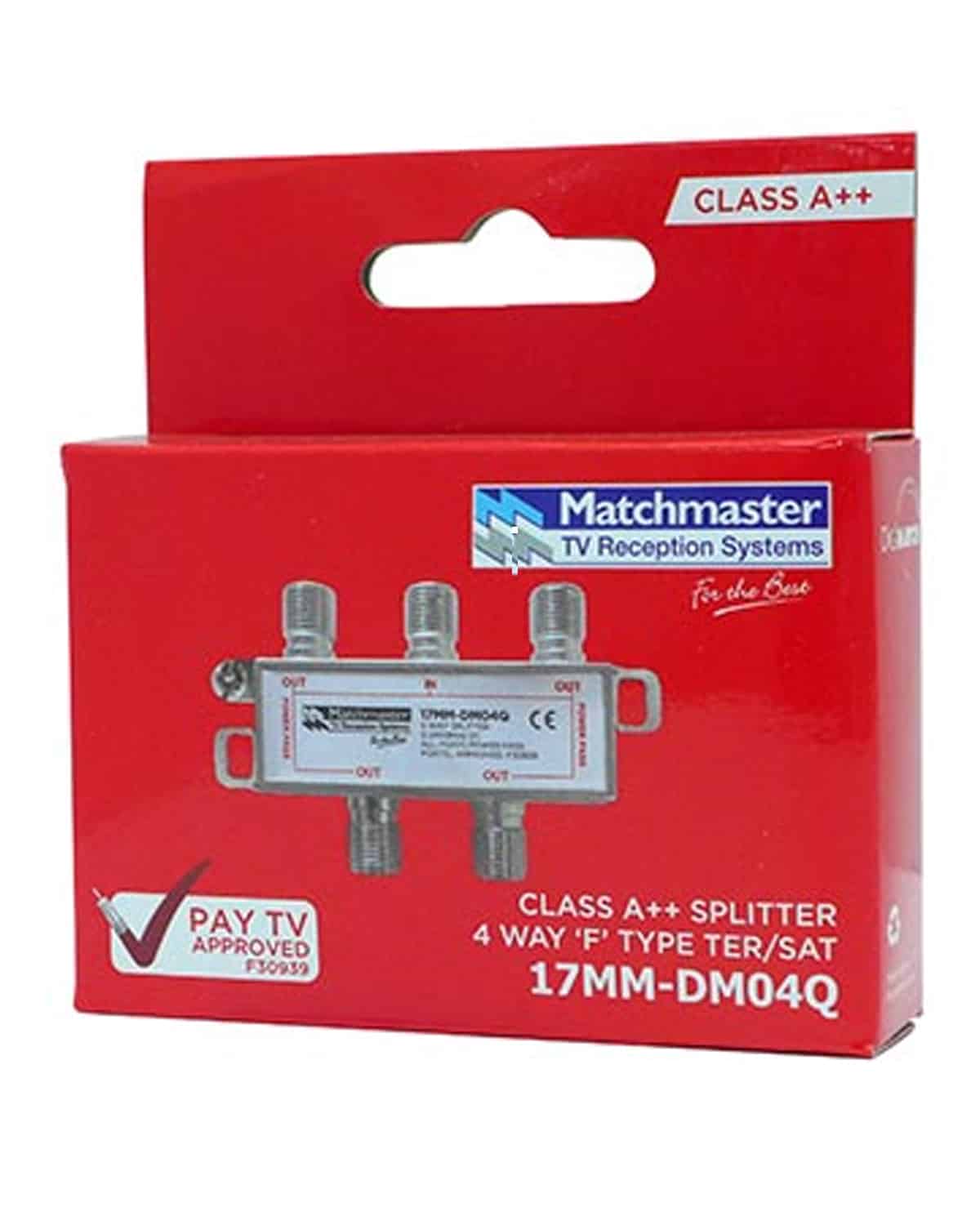

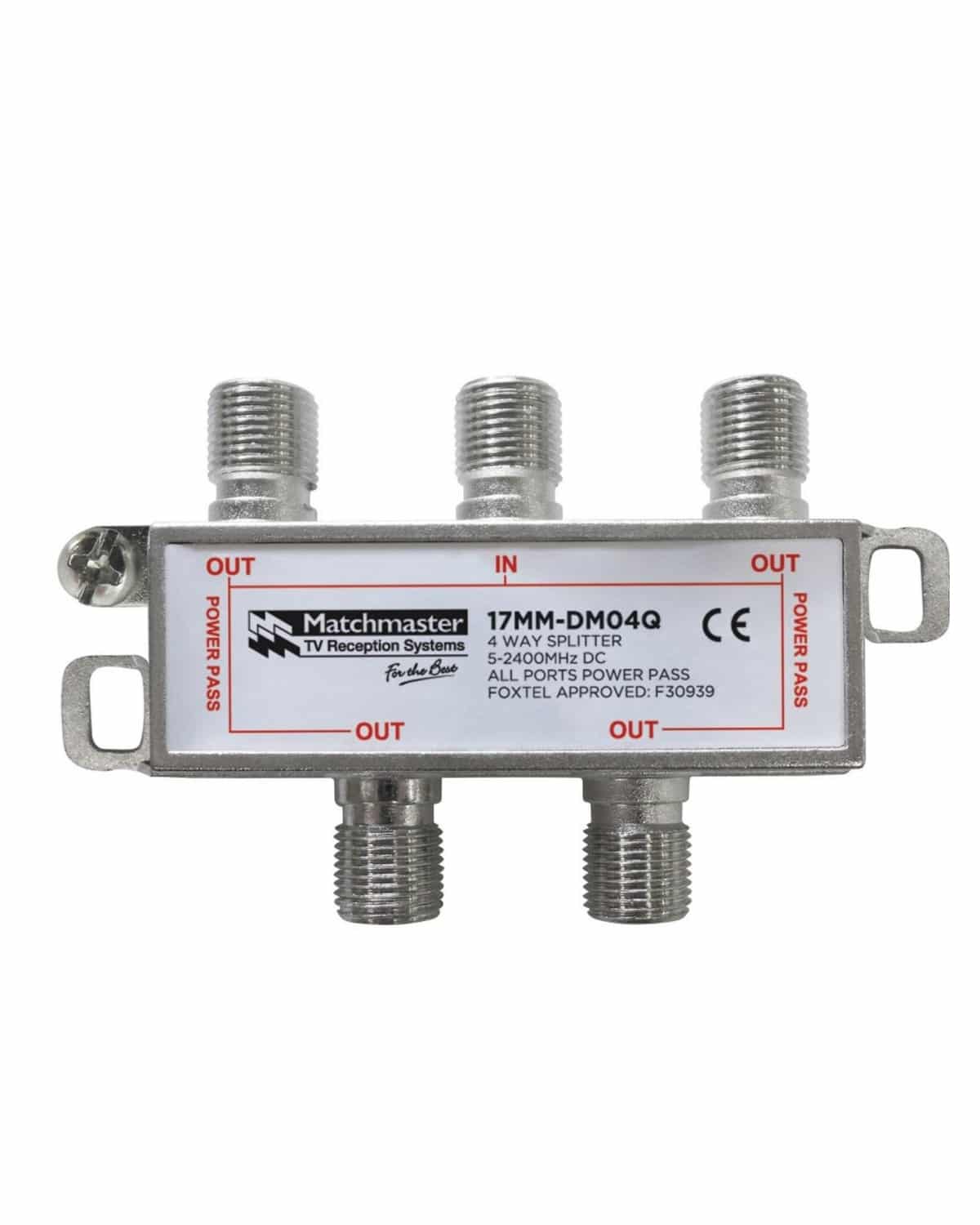

MATCHMASTER SPLITTER 4 WAY FOR TDT SYSTEMS – BULK PACK 50 Pack : 17MM-DM04QB

Description

Splitters and Taps

Matchmaster has a premium range of RF Splitters & Taps ranging from 1 Way through to 8 Way. We cater for both Terrestrial and Satellite frequencies with both Single Port AC/DC and All Port DC Power Pass products available.

Features and Benefits

Foxtel approved (F30939)

Suitable for both satellite/TDT & FTA

DC power pass all ports

10dB extra screening with soldered back

Frequency range 5-2400 MHz

Specifications

Insertion Loss

Frequency: 5-40MHz ; 8.5dB

Frequency: 40-470MHz ; 8.0dB

Frequency: 470-1000MHz ; 8.0dB

Frequency: 1000-1750MHz ; 8.0 to 9.0dB

Frequency: 1750-2150MHz ; 9.0 to 10.0dB

Frequency: 2150-2400MHz ; 10.0 to 11.5dB

Return Loss
Frequency: 5-40MHz ; ≥10dB

Frequency: 40-470MHz ; ≥10dB

Frequency: 470-1000MHz ; ≥10dB

Frequency: 1000-1750MHz ; ≥10dB

Frequency: 1750-2150MHz ; ≥10dB

Frequency: 2150-2400MHz ; ≥10dB

Isolation

Frequency: 5-40MHz ; ≥20dB

Frequency: 40-1000MHz ; ≥23dB

Frequency: 1000-1750MHz ; ≥23dB

Frequency: 1750-2400MHz ; ≥23dB

DC Power Passing

Frequency: from all output to input ; Max. 500mA
