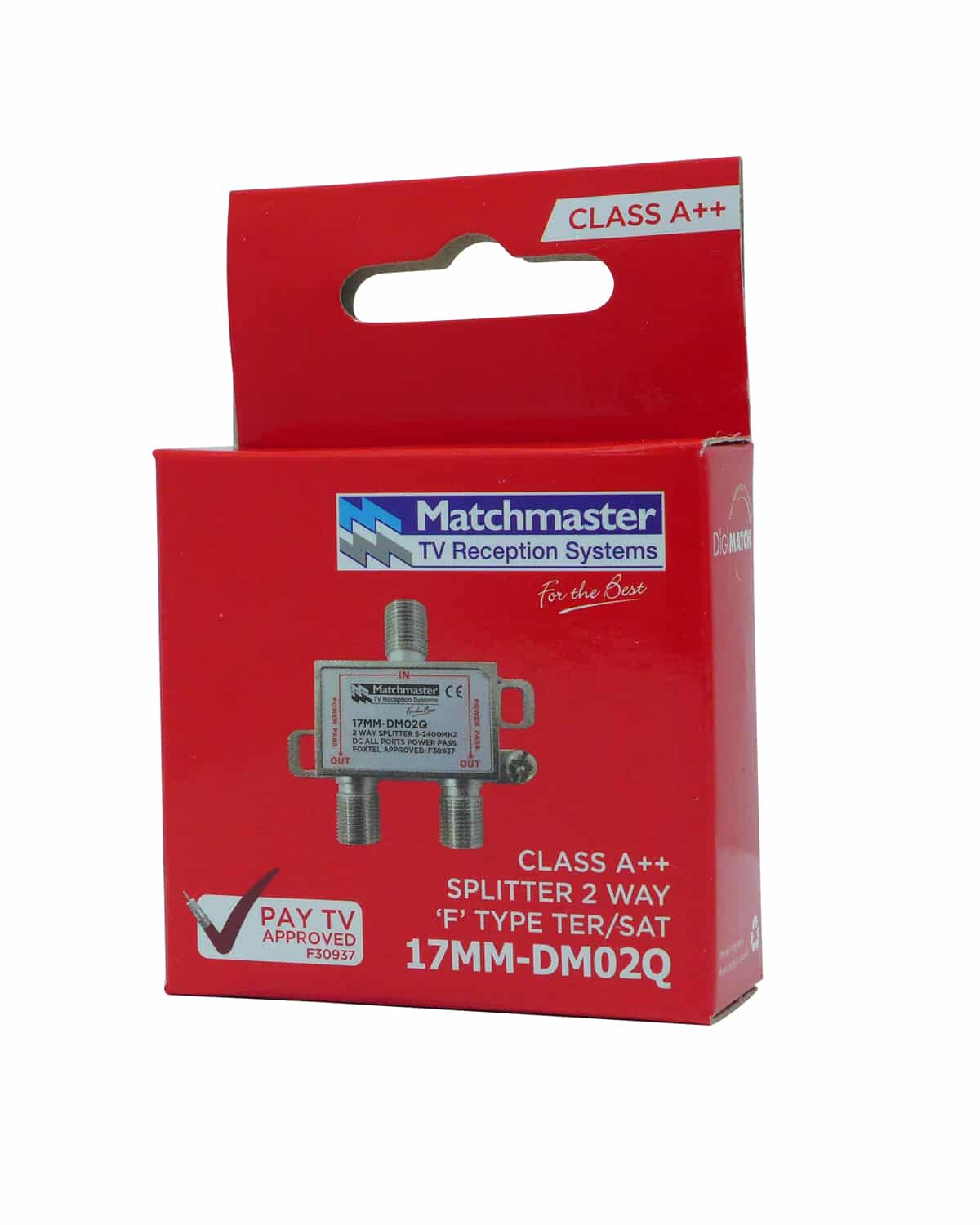

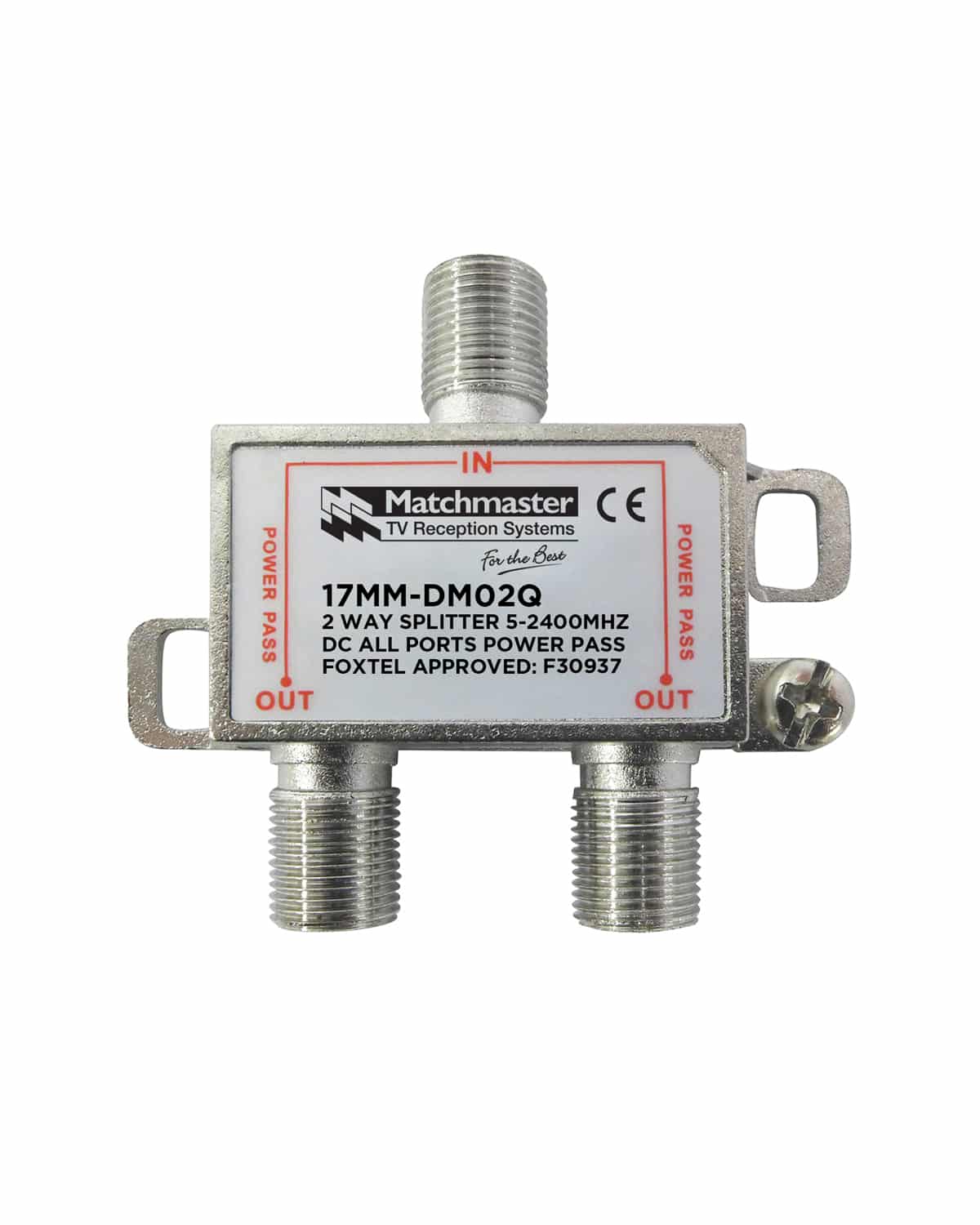

MATCHMASTER SPLITTER 2 WAY FOR TDT SYSTEMS – BULK PACK 50 Pack : 17MM-DM02QB
$649.00 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Splitters and Taps
Matchmaster has a premium range of RF Splitters & Taps ranging from 1 Way through to 8 Way. We cater for both Terrestrial and Satellite frequencies with both Single Port AC/DC and All Port DC Power Pass products available.
Features and Benefits
Foxtel approved (30937)
Suitable for both satellite/TDT & FTA
DC power pass all ports
10dB extra screening with soldered back
Frequency range 5-2400MHz
Specifications
Insertion Loss
Frequency : 5-40MHz ; 4.5 to 4.0dB
Frequency : 40-470MHz ; 4.0dB
Frequency : 470-1000MHz ; 4.0 to 4.5dB
Frequency : 1000-1750MHz ; 4.5 to 5.0dB
Frequency : 1750-2150MHz ; 5.0 to 5.5dB
Frequency : 2150-2400MHz ; 5.5 to 6.0dB
Return Loss
Frequency : 5-40MHz ; ≥10dB
Frequency : 40-470MHz ; ≥10dB
Frequency : 470-1000MHz ; ≥10dB
Frequency : 1000-1750MHz ; ≥10dB
Frequency : 1750-2150MHz ; ≥10dB
Frequency : 2150-2400MHz ; ≥10dB
Isolation
Frequency : 5-40MHz ; ≥21dB
Frequency : 40-1000MHz ; ≥23dB
Frequency : 1000-1750MHz ; ≥23dB
Frequency : 1750-2400MHz ; ≥23dB
DC Power Passing
Frequency : from all output to input ; Max. 500mA
Additional information
| Barcode | 9322190026976 |
|---|
