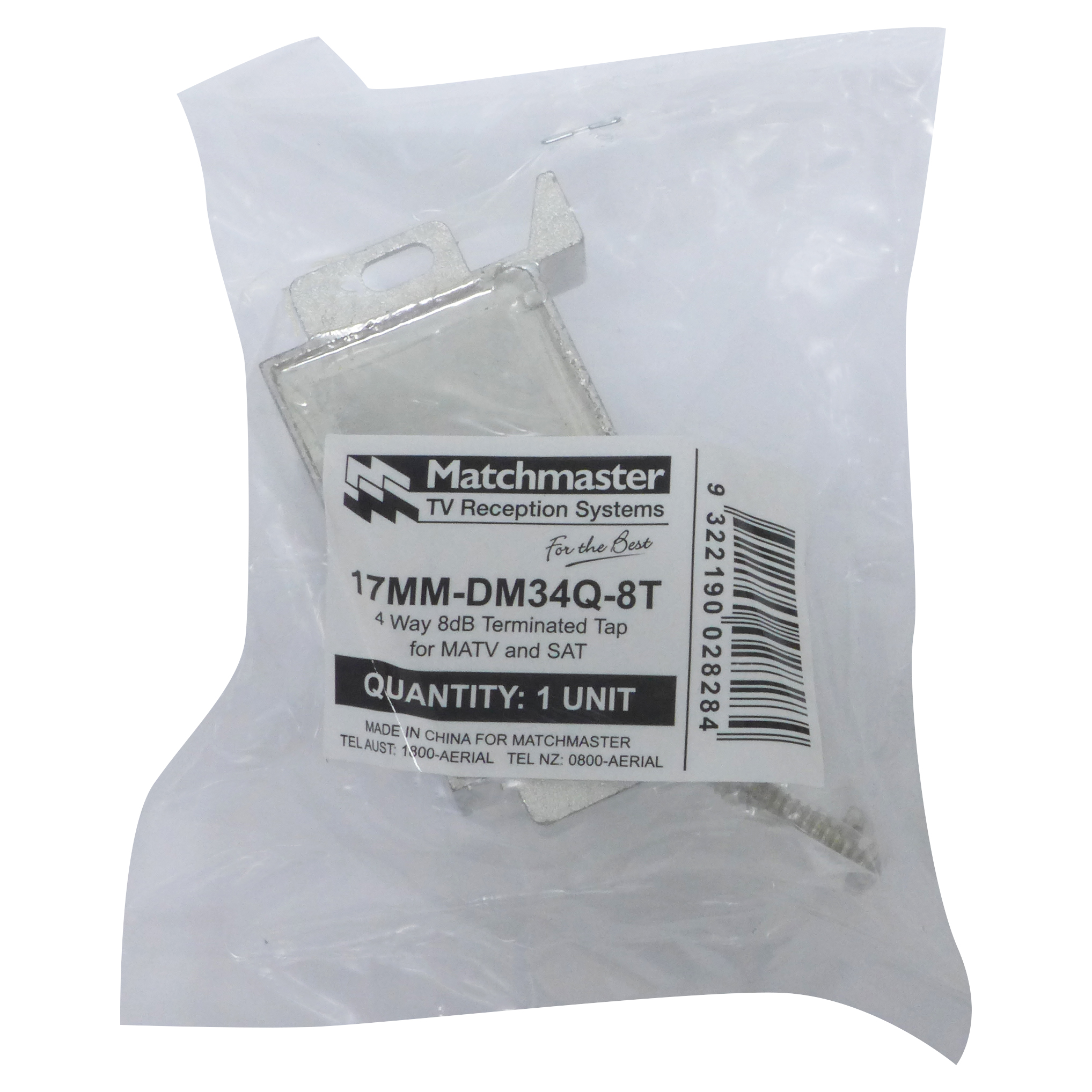

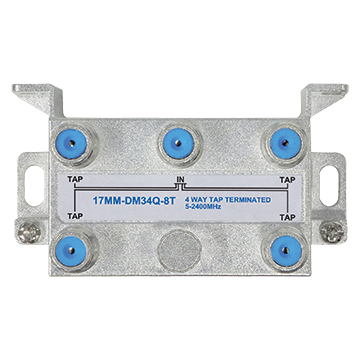

MATCHMASTER 4 WAY 8DB TERMINATED HIGH ISOLATION TAP FOR MATV AND SAT : 17MM-DM34Q-8T
$24.67 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Splitters and Taps
Matchmaster has a premium range of RF Splitters & Taps ranging from 1 Way through to 8 Way. We cater for both Terrestrial and Satellite frequencies with both Single Port AC/DC and All Port DC Power Pass products available.
Features and Benefits
Pay TV approved F30960
Return loss ?10dB
Tap loss 12dB
Frequency range 5-2400MHz
Power pass input to output
Can be mounted vertical or horizontal for ease of installation
Pack Quantity
Inner: 1 bag of 1 piece
Outer: 1 carton of 10 bags (10 pieces)
Specifications
Insertion Loss (In-Out)
Frequency (MHz): 5-40 ; Typical Value (dB): ?3.5
Frequency (MHz): 40-692 ; Typical Value (dB): ?3.5
Frequency (MHz): 692-1000 ; Typical Value (dB): ?3.5
Frequency (MHz): 1000-1500 ; Typical Value (dB): ?4.0
Frequency (MHz): 1500-1860 ; Typical Value (dB): ?4.5
Frequency (MHz): 1860-2400 ; Typical Value (dB): ?5.0
Tap Loss (In-Tap)
Frequency (MHz): 5-40 ; Typical Value (dB): 12.5?2.0
Frequency (MHz): 40-692 ; Typical Value (dB): 12?2.0
Frequency (MHz): 692-1000 ; Typical Value (dB): 12?2.0
Frequency (MHz): 1000-1500 ; Typical Value (dB): 12?2.0
Frequency (MHz): 1500-1860 ; Typical Value (dB): 12?2.0
Frequency (MHz): 1860-2400 ; Typical Value (dB): 12?2.5
Reverse Isolation (Out-Tap)
Frequency (MHz): 5-40 ; Typical Value (dB): ?25
Frequency (MHz): 40-692 ; Typical Value (dB): ?30
Frequency (MHz): 692-1000 ; Typical Value (dB): ?28
Frequency (MHz): 1000-1500 ; Typical Value (dB): ?25
Frequency (MHz): 1500-1860 ; Typical Value (dB): ?25
Frequency (MHz): 1860-2400 ; Typical Value (dB): ?25
Mutual Isolation (Tap-Tap)
Frequency (MHz): 5-40 ; Typical Value (dB): ?25
Frequency (MHz): 40-692 ; Typical Value (dB): ?30
Frequency (MHz): 692-1000 ; Typical Value (dB): ?30
Frequency (MHz): 1000-1500 ; Typical Value (dB): ?25
Frequency (MHz): 1500-1860 ; Typical Value (dB): ?25
Frequency (MHz): 1860-2400 ; Typical Value (dB): ?25
Return Loss (In/Out/Tap)
Frequency (MHz): 5-40 ; Typical Value (dB): ?10
Frequency (MHz): 40-692 ; Typical Value (dB): ?10
Frequency (MHz): 692-1000 ; Typical Value (dB): ?10
Frequency (MHz): 1000-1500 ; Typical Value (dB): ?10
Frequency (MHz): 1500-1860 ; Typical Value (dB): ?10
Frequency (MHz): 1860-2400 ; Typical Value (dB): ?10
