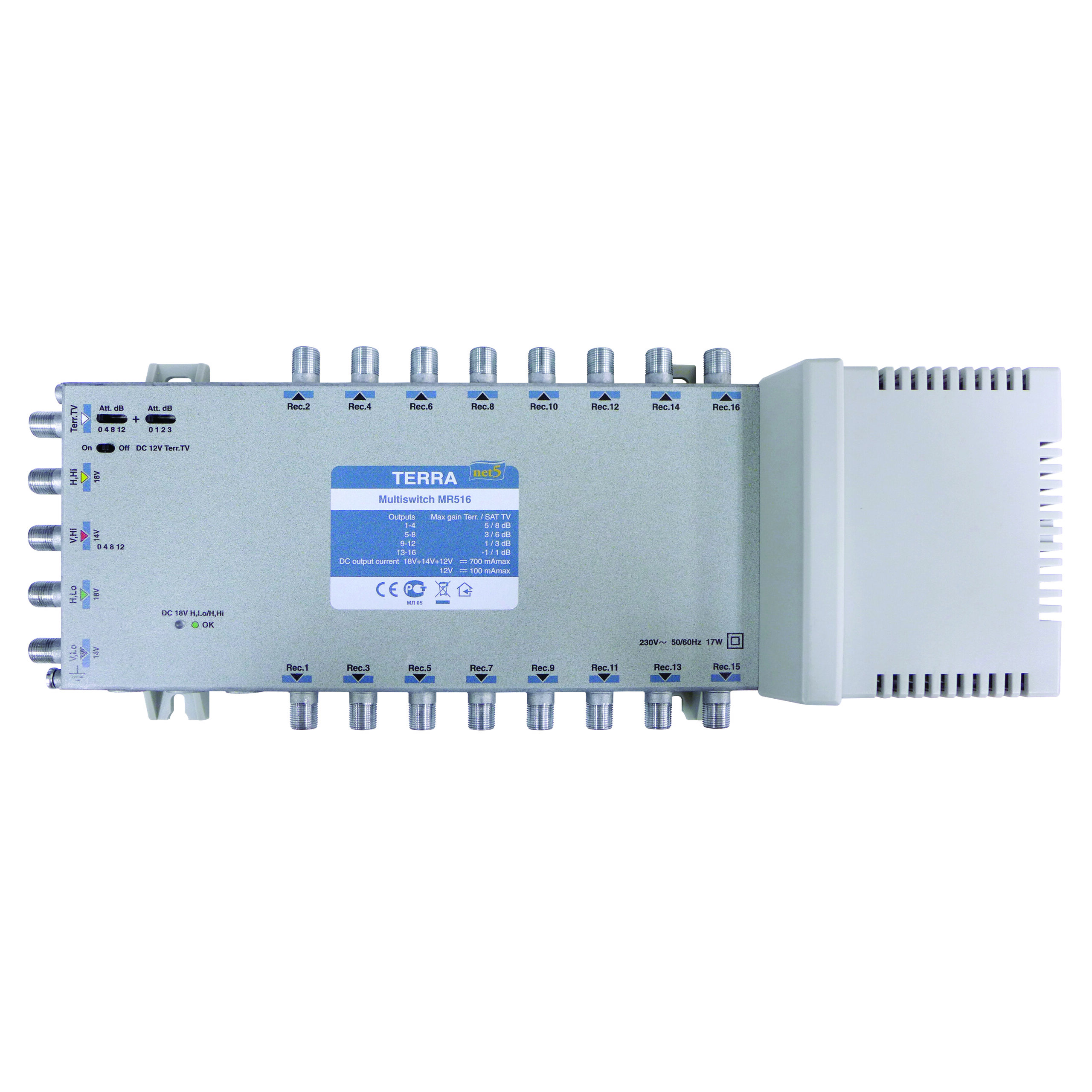

MATCHMASTER M/SWITCH 5 IN 16 OUT MAIN PWRD : 21MM-MR516

Description

Reliable Multiswitch Solution for Pay TV and Satellite Distribution

The MATCHMASTER M/SWITCH 5 IN 16 OUT MAIN PWRD : 21MM-MR516 is a premium 5 Wire multiswitch designed for professional Pay TV, satellite, and terrestrial signal distribution applications. Built for reliability and consistent performance, this unit allows installers to distribute four satellite IF polarities together with terrestrial TV signals to multiple user points.

Designed with Terra 5 Wire technology, the Matchmaster multiswitch range delivers high-quality signal performance through advanced European engineering. It is an ideal choice for residential developments, commercial buildings, and projects requiring stable multi-outlet TV distribution.

Professional Signal Distribution Performance

The 21MM-MR516 provides 16 output positions, making it suitable for larger star distribution systems where multiple users require independent access to satellite and terrestrial services. Its built-in power supply supports remote DC feeding, helping simplify installation and improve system reliability.

The unit also includes a 16-position discrete gain regulator for terrestrial TV, allowing installers to optimise signal levels based on project requirements. It can also supply power to a pre-amplifier through the terrestrial TV input when additional signal enhancement is required.

Built for Trade Installations

Approved for Foxtel installations (F30819), the MATCHMASTER M/SWITCH 5 IN 16 OUT MAIN PWRD is designed specifically for use with compatible 5 Wire products. It provides electricians and TV system installers with a dependable solution for modern signal distribution networks.

Whether used in apartments, commercial buildings, or multi-room residential projects, this multiswitch helps deliver consistent signal performance with efficient installation and long-term reliability.

Key Specs

• Brand: Matchmaster
• Model: 21MM-MR516
• Type: 5 Wire Multiswitch
• Inputs: 5 inputs (4 satellite IF + terrestrial TV)
• Outputs: 16 user outputs
• Foxtel approved: F30819
• Built-in power supply for remote DC feeding
• 16-position terrestrial TV gain adjustment
• Supports pre-amplifier feeding through terrestrial input
• Designed for star distribution systems
• Compatible with 5 Wire products only
• Pack quantity: 1 piece

Ideal For

• Licensed electricians
• TV antenna installers
• Pay TV installation projects
• Residential multi-room TV systems
• Apartment and townhouse developments
• Commercial signal distribution systems
• Maintenance and electrical contractors
• Satellite and terrestrial TV upgrades
