Description

ISP Install Kit includes SM25 Gen 3 V4 ISP Dish Base Adaptor with SM06S 600mm Metal Roof Tripod Mount 59MM-SM23

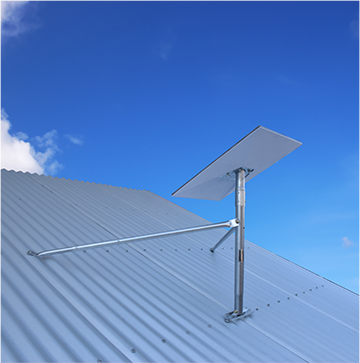

The SM23 is a 600mm high professional installer kit for ISP Gen 3 V4 dishes to metal roofs. The SM23 kit includes our SM25 dish adaptor and SM06S heavy-duty metal roof tripod mount. The kit is suitable for use on pitched or flat metal roofs or concrete pads. Designed to allow Gen 3 V4 internet reception antennas to simply sleeve over, rotate to align dish, and lock into place. The mount is supplied with telescoping support arms to allow for easy levelling on pitched surfaces. Designed and manufactured in Australia from heavy-duty galvanised steel for quality and durability.

Features and Benefits

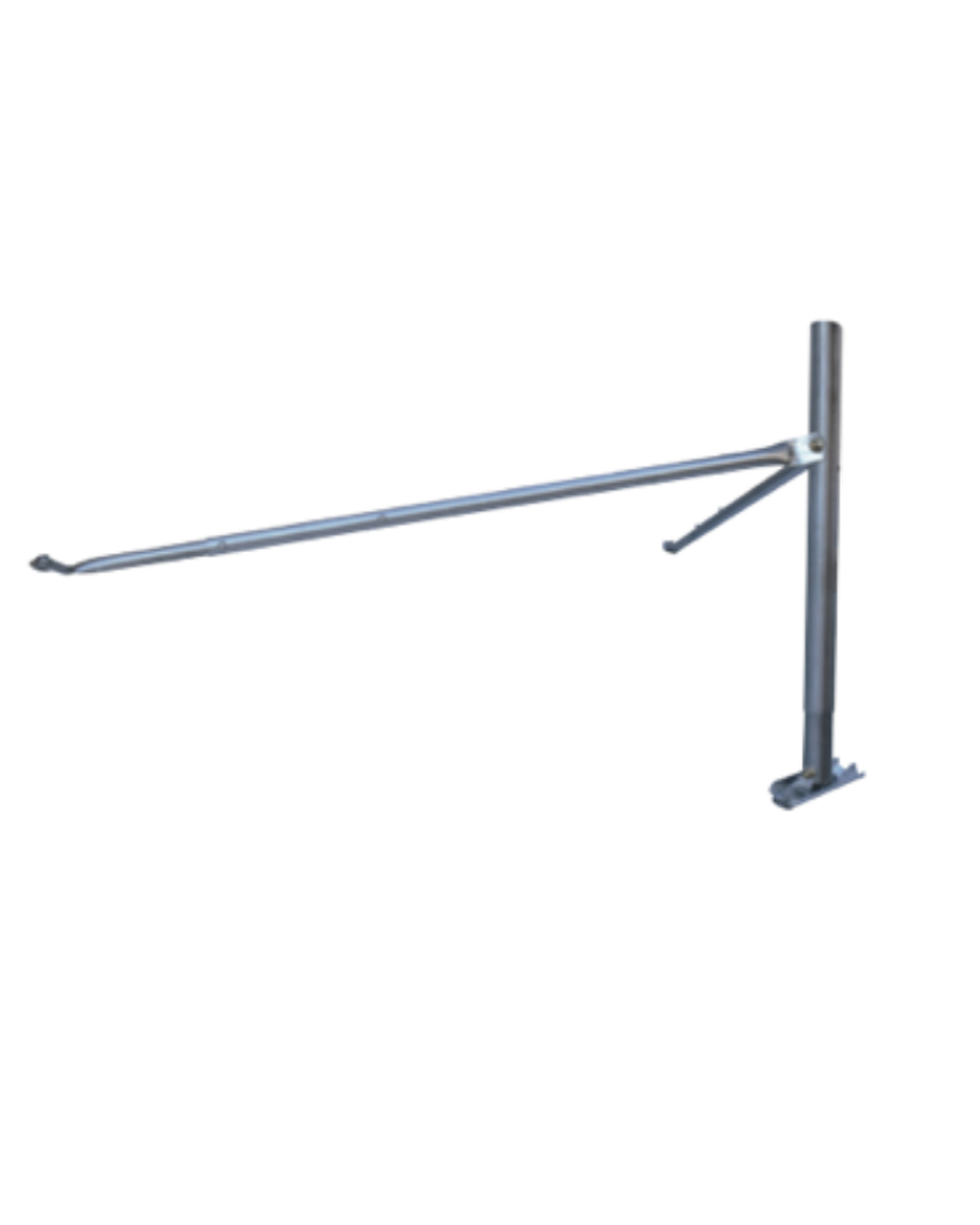

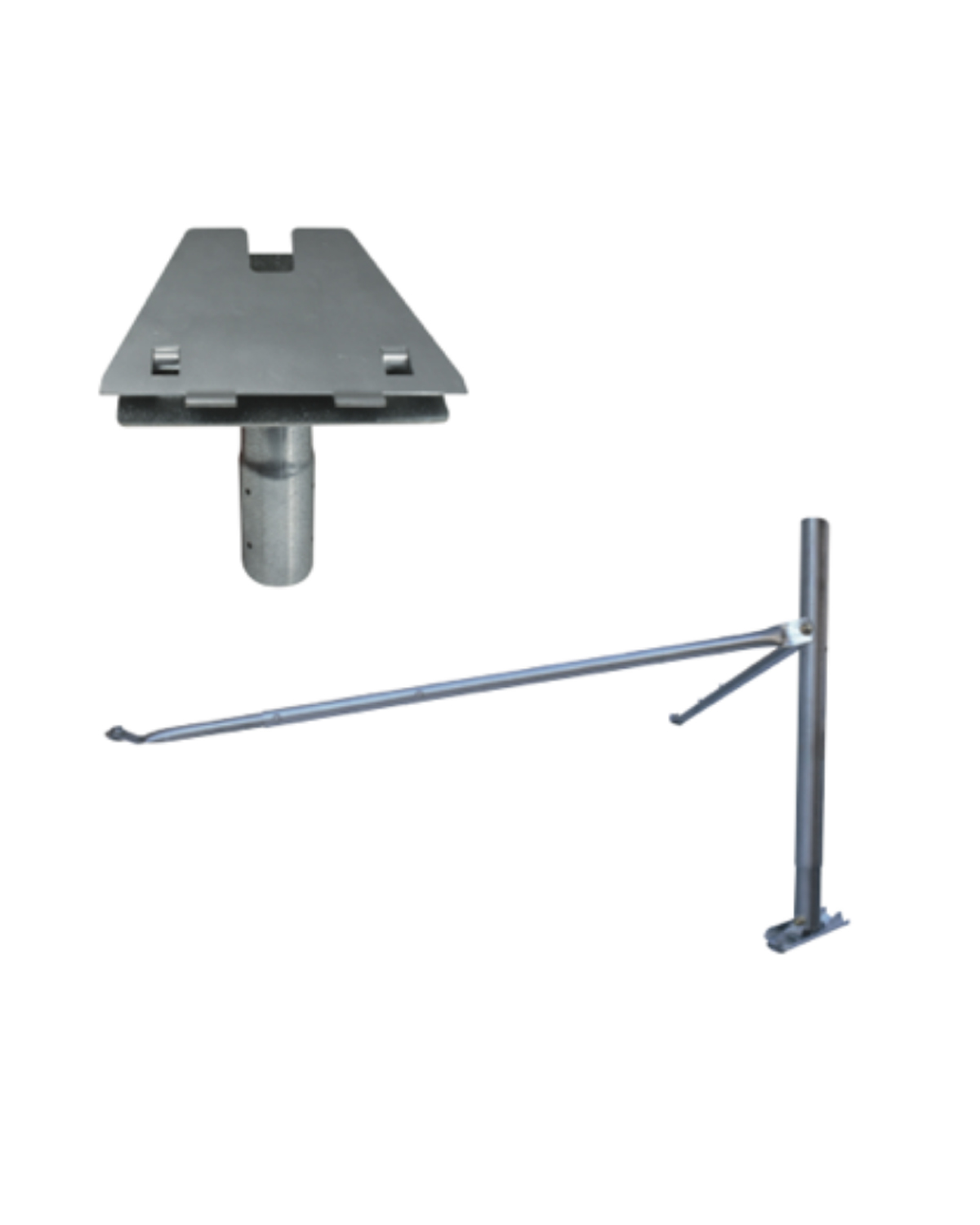

Kit includes 1 x SM25 heavy-duty Gen 3 ISP antenna pole mounting adaptor and 1 x SM06S 600mm high heavy-duty metal roof tripod mount.
Optional mounting accessories include 13MM-DUOCLEAT and 13MM-BK01 for use in medium- to high-wind areas. (sold separately)
4 x adjustable locking bolts on the dish adaptor for a stable and secure connection to the dish base.
Made from high-quality galvabond steel with inside or outside mast cable routeing options.
No modification is required to the ISP dish; SM25 is built to a fixed angle for a simple yet secure installation.
Proudly made in Australia.
