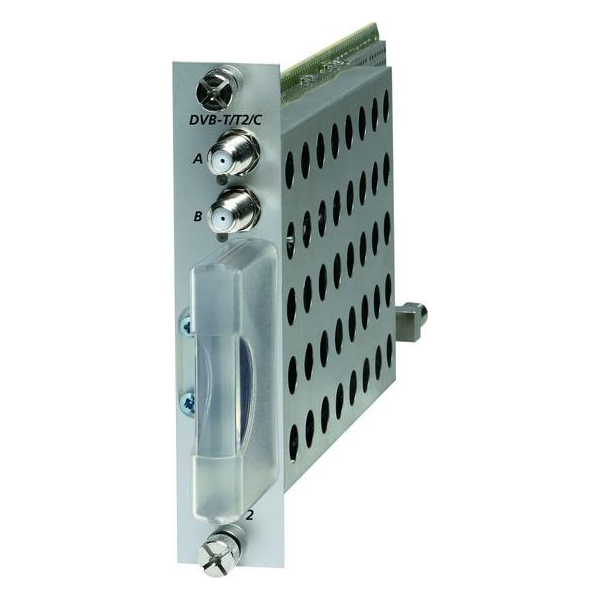

MATCHMASTER TRANSMODULATOR TWIN DVBT/C TO COFDM : 14MM-OH89

Description

Product Summary

Powerful technology, compact dimensions, modular and flexibly expandable; the WISI COMPACT HEADEND System OH combines all the advantages of an innovative and affordable headend. WISI Compact Headend OH is easy to configure. With up to 14 module slots it offers channel processing for 14 analogue or 28 digital channels in a 3 HU 19? rack chassis. WISI Compact Headend OH operates on a high efficiency power supply, with low consumption modules in order to make a minimum ecological impact and a low operational cost. The USB connection and the RJ45 interface can be used to execute software updates for the basic unit as well as for the modules. Furthermore, all functions can be furnished from a distance per web browser.

Features and Benefits

Transmodulation from DVB-T/T2/C to DVB-T, with the inclusion of CI interfaces for descrambling, the unit can deliver services transparently or through PID filtering selected digital services

Regeneration of the DVB-T services to a DVB-T- COFDM signal, transparent or select services with PID filtering

Integrated conditional access interface for both channels

Internal NIT generation available

PID filtering available

Input range 110-878MHz DVB-C/T/T2

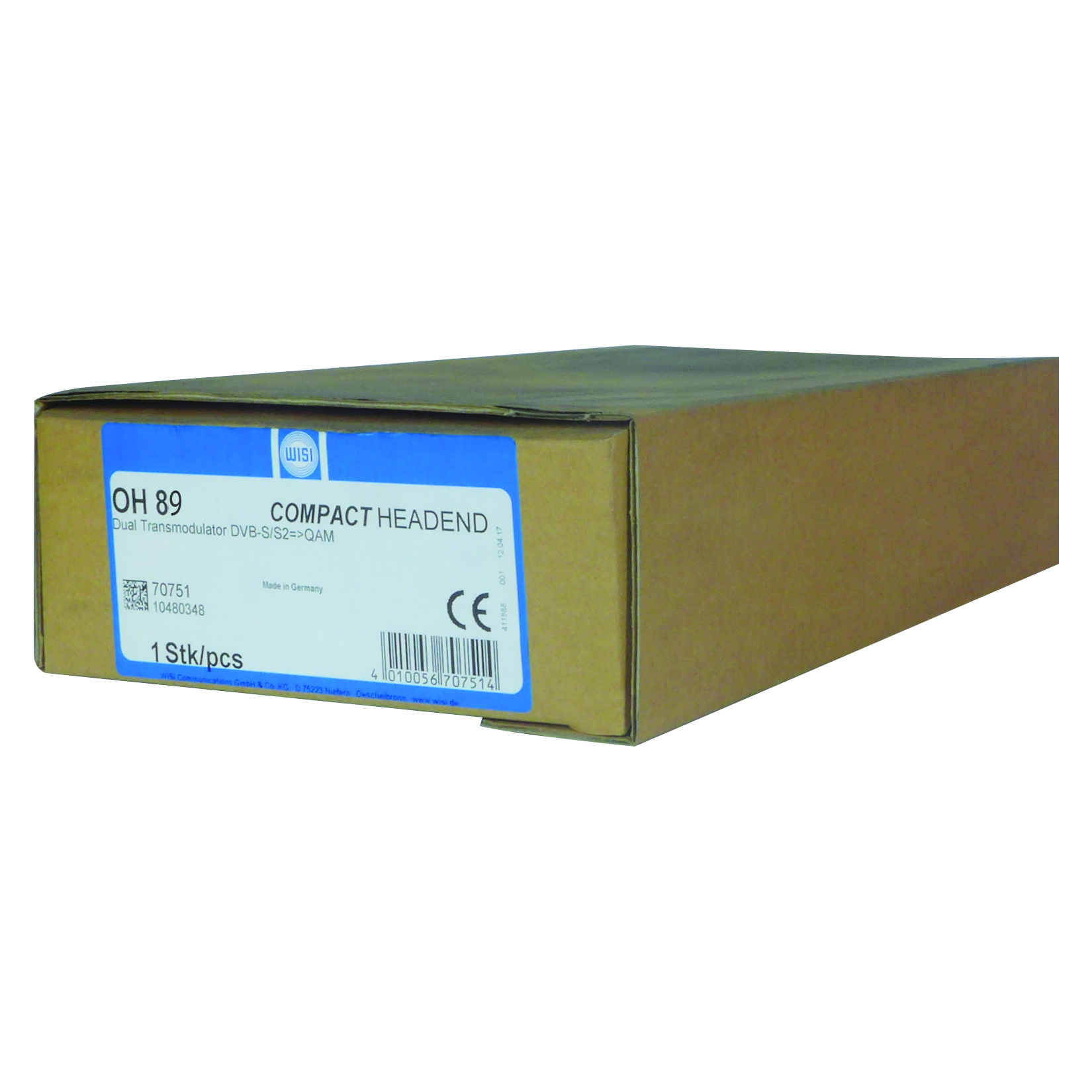

Pack Quantity

Inner: 1 box of 1 piece
