MATCHMASTER WISI OPTOPUS 4 WAY OPTICAL SPLITTER : 20MM-LD91S0104
$2,520.00 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

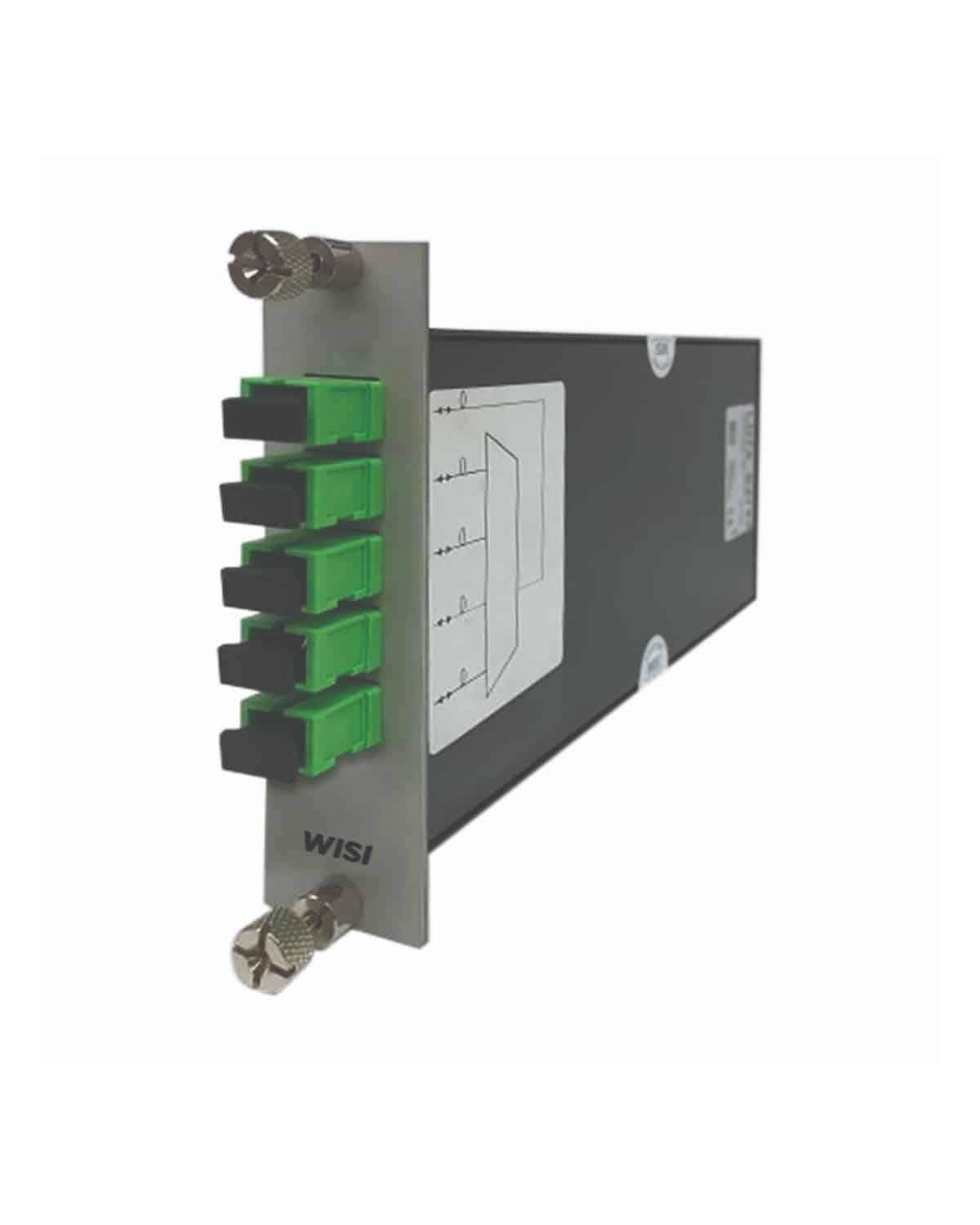

The WISI Optopus series PLC splitters are high-quality German-made fibre optic splitters available in 4, 8, 16 and 32 way splits. The 8, 16, and 32-way splitters are in a 19″ 1U rackmount form with the four-way (20MM-LD91S0104) version in a cassette form which uses a rack mount kit (20MM-LP40) or 20MM-LX50-230 base unit. All splitters come with SC/APC connections.
Features and Benefits
Optical PLC splitter with one input to 4 outputs (SC/APC) to fit with 20MM-LP40 19″ mounting frame or 20MM-LX50-230 base unit.
Wavelengths 1260-1650nm
≤25dBm maximum optical input power
Insertion loss ≤7.2 dB
Operating temperature range -25…+55 °C (ETSI EN 300 019-3-1 Class 3.3)
Uniformity ≤0.6 dB
Additional information
| Barcode | 9322190026587 |
|---|---|
| Brand | |
| Type | |
| MPN |
