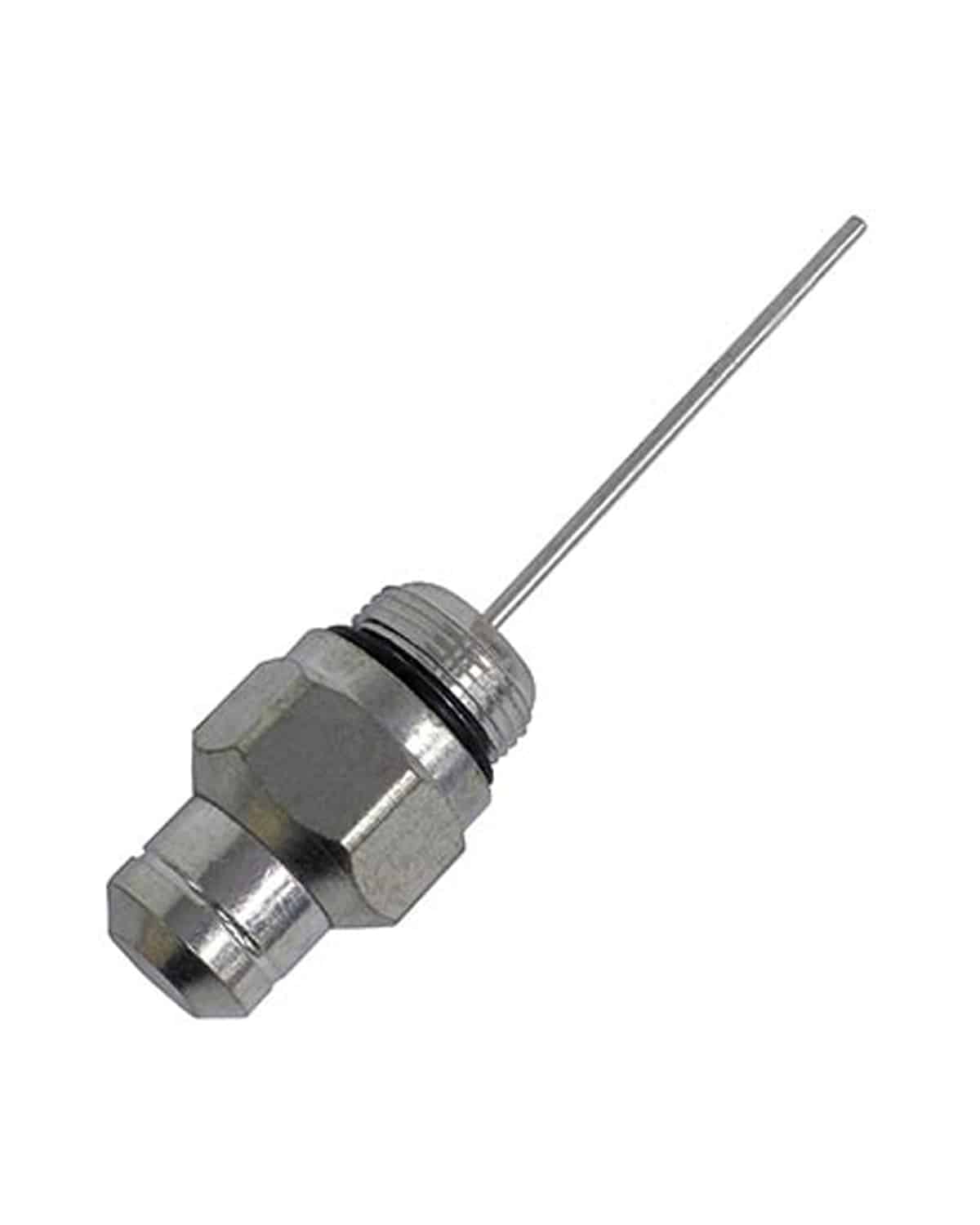

MATCHMASTER Terminator KS Port : 18MM-T2

Description

Product Summary

The 18MM-T2 is a 75 Ohm capacitive terminator for use in networks with AC voltage in the terminated line. Commonly used CATV network systems to terminate unused RF output and throughput ports. Terminators are necessary on the end of line connections to prevent the signal from returning up the line causing additional noise and interference. The stinger can be trimmed to suit tap or splitter insertion requirements.

Features and Benefits

75 Ohm male housing terminator for use on CATV hard-line taps and splitters where ports may have voltage present

1.0 KV universal male terminator for 5/8-24 entry ports

Blocks 60 cycle AC and terminates RF signals

Integrated O-ring for waterproof connections

Suitable for 5MHz to 1300MHz frequency range

Operating Voltage Rating 90 Volts (@ 60 Hz continuous AC)

Pack Quantity

Inner: 1 bag of 25 pieces
