MATCHMASTER CONNECTOR RG11 COMPRESSION UNIVERSAL QUICK MOUNT (25 Pack) : 08MM-QM11
$480.00 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

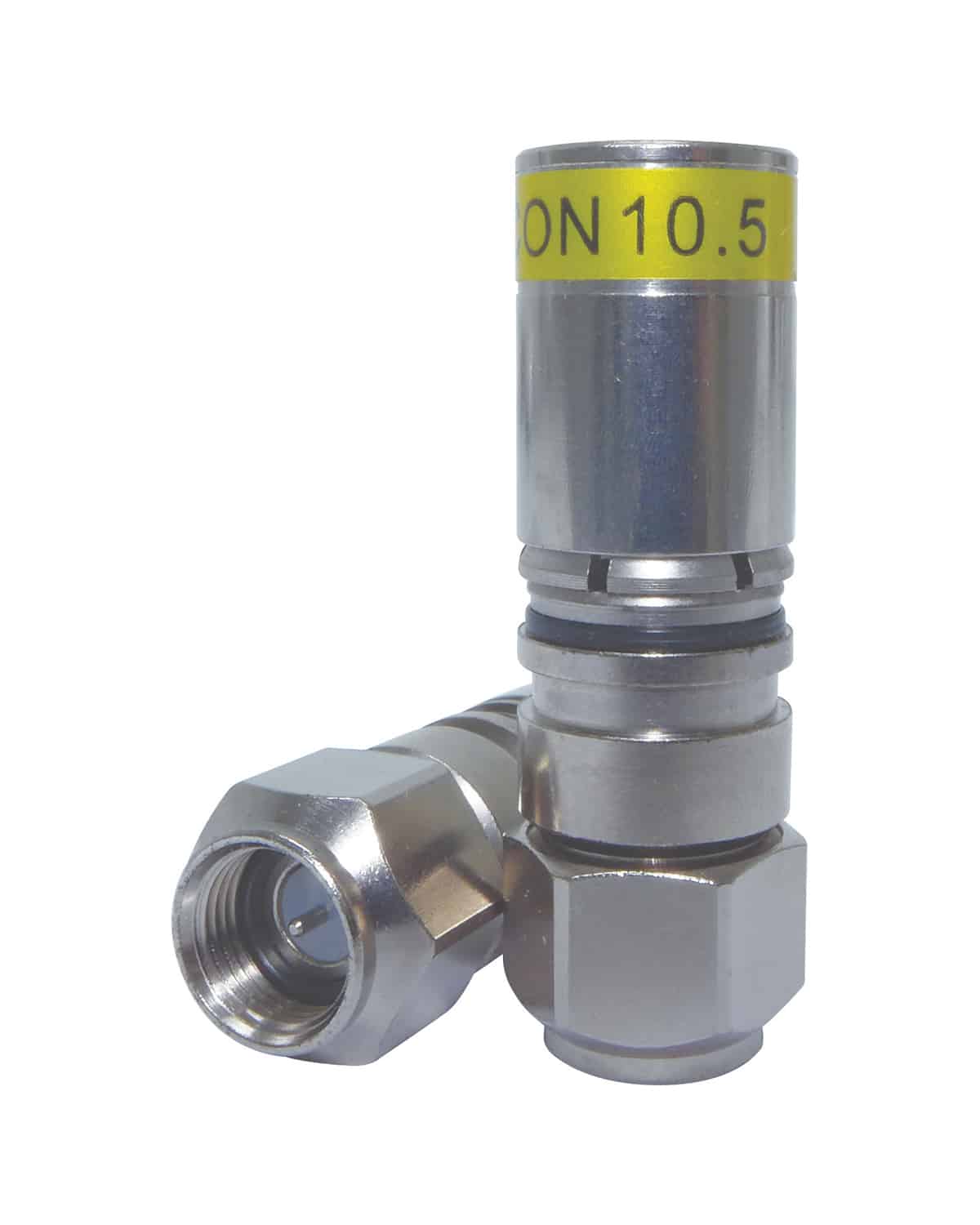

The 08MM-QM11 is a professional grade Cabelcon RG11 Quick Mount connector designed to fit quadshield RG11 cables, suited ideally to Matchmasters 06MM-E11Q series. The Quick Mount technology allows for quick terminations saving you time and eliminating the need for removing or peeling back layers of braid and foil. The QM11 is designed for use in CATV and satellite networks thanks to its ability to pass high frequency to 3000MHz. In addition, the QM11 features an integrated spring finger centre pin for ease of installation.
Features and Benefits
Wideband operating frequency range 0.3 – 3000 MHz
No need to pull back the braid or remove the foil sheath-like traditional connector
Just strip the cable, place it on the connector and compress
Used with Matchmaster compression tools (08MM-CT01S & 08MM-CT07)
Integrated O-ring to create a watertight seal to prevent any unwanted ingress
Perfect for use in all CATV and satellite networks
Pack Quantity
Inner: 1 box of 25 pieces
Outer: 1 carton of 25 boxes (625 pieces)
Additional information
| Barcode | 9322190019893 |
|---|
