MATCHMASTER CONNECTOR COMPRESSION RG11 QUAD (25 Pack) : 18MM-CX311Q
$339.99 inc GST
19 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

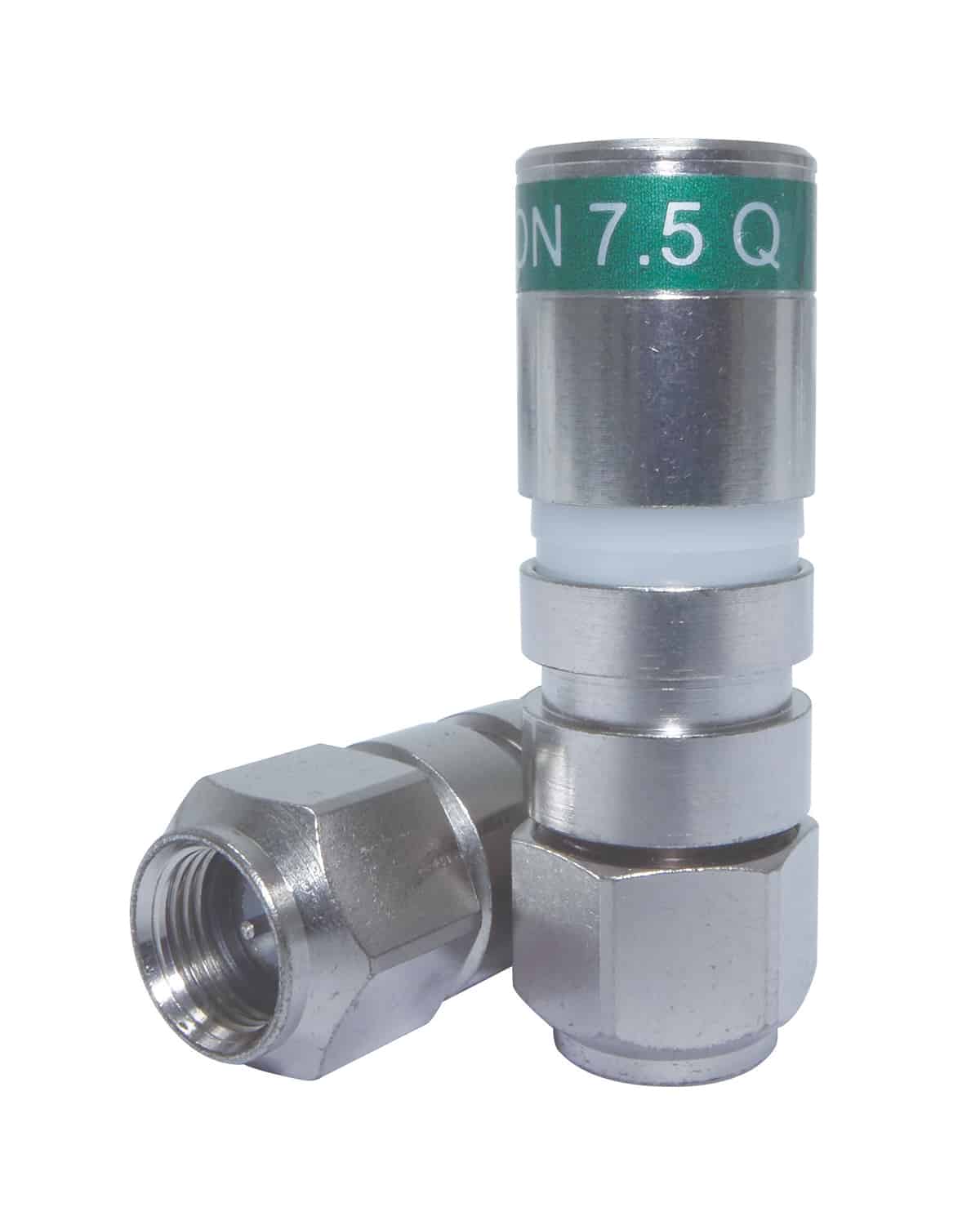

The 18MM-CX311Q is a professional grade Cabelcon RG11 compression connector designed to fit quadshield RG11 cables, suited ideally to Matchmasters 06MM-E11Q series. The CX311Q is designed for use in CATV and satellite networks thanks to its ability to pass high frequency to 3000MHz. In addition, the CX311Q features an integrated spring finger centre pin for ease of installation.
Features and Benefits
Wideband operating frequency range 0.3 – 3000 MHz
The CX311Q one-piece connectors come with a free-spinning nut – hex 14mm (9/16 compatible) – for easy and reliable installation.
Features an integrated spring finger sliding centre pin
Used with Matchmaster compression tools (08MM-CT01S & 08MM-CT07)
Integrated O-ring to create a watertight seal to prevent any unwanted ingress
Perfect for use in all CATV and satellite networks
Pack Quantity
Inner: 1 box of 25 pieces
Outer: 1 carton of 25 boxes (625 pieces)
Additional information
| Barcode | 9322190015482 |
|---|
