MATCHMASTER ADAPTOR KS Splice Coupler : 18MM-KSKSC

Description

Product Summary

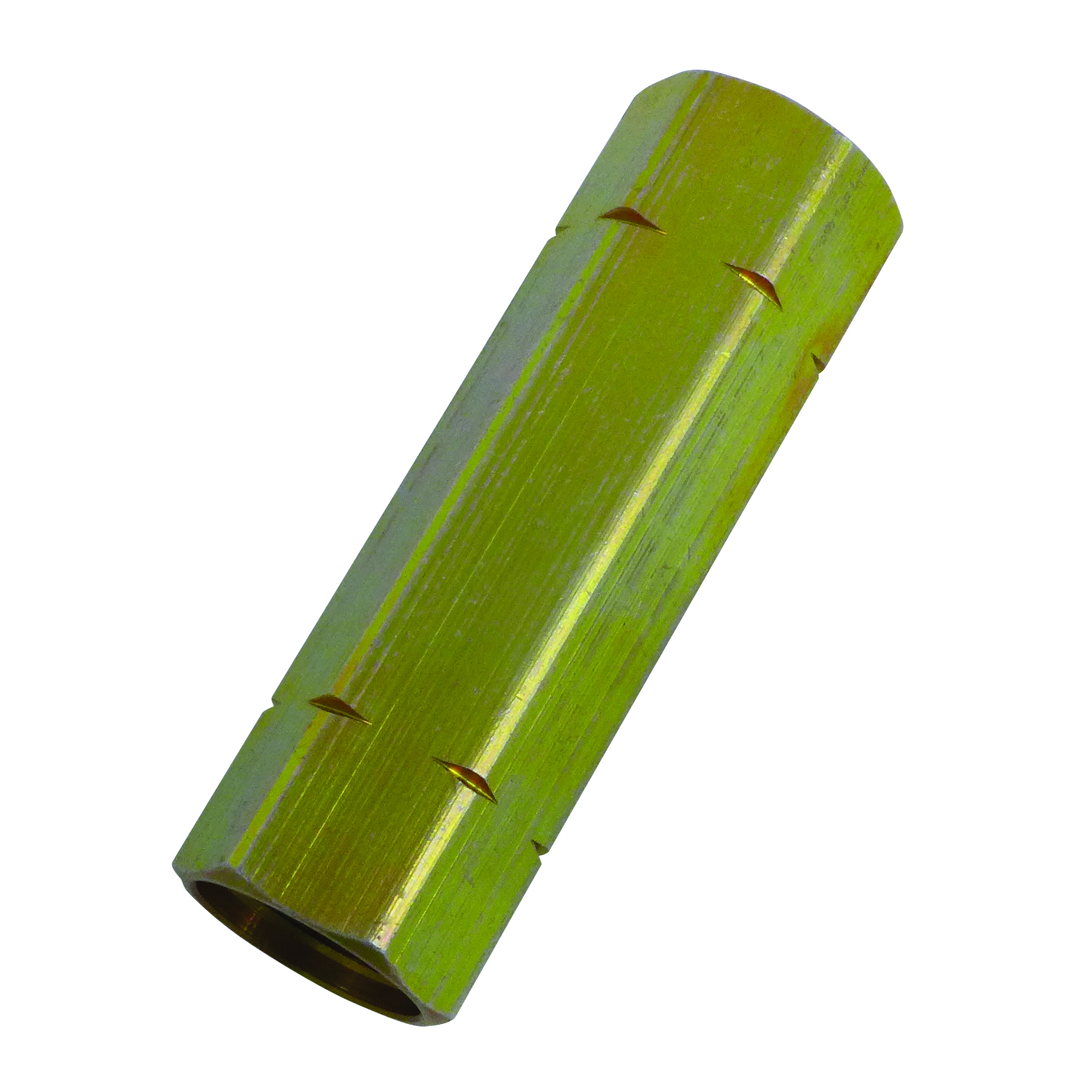

The 18MM-KSKSC is a KS 5/8″ 75 Ohm splice coupler used in CATV networks for joining like or different sized cables. The KSKSC is made from one piece 6262 aluminium for long life and durability. The connector also features an O-ring to make for a watertight connection. The perfect accessory to have on hand when a buried cable is accidentally cut during excavations!

Features and Benefits

Designed to splice hard-line cable for joining cable networks using like or different sized cables

Greater than 25dB return loss at 1GHz

Operating frequency range DC-3GHz

Made from 6262 aluminium

Foxtel (F30162) and Telstra (739/102) approved

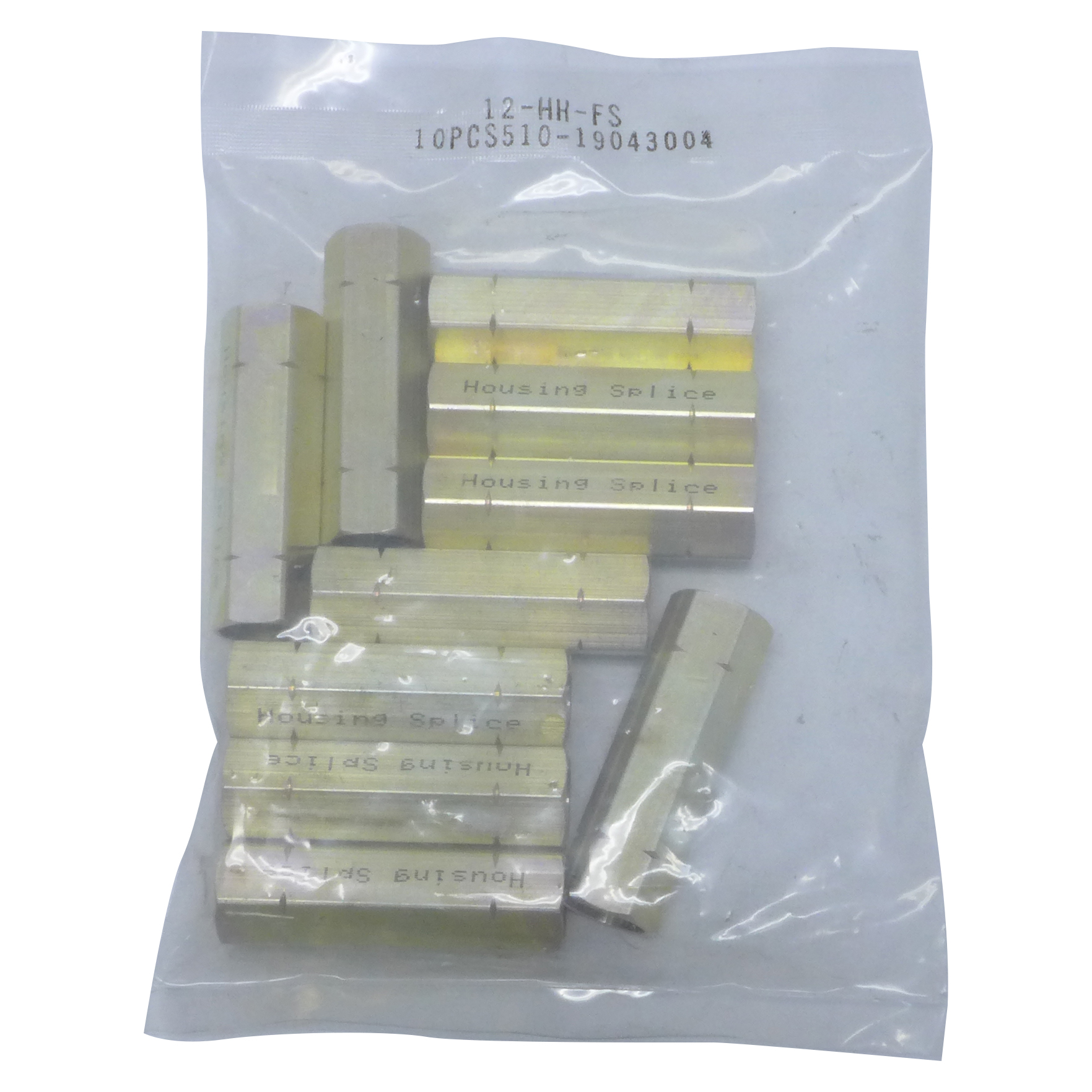

Pack Quantity

Inner: 1 bag of 10 pieces

Specifications

Bandwidth: DC~3GHz

Return loss: >25dB @ 1GHz

Temperature range: -40? to +60?C

Inpedance: 75 Ohms

Interface: Meet SCTE IPS SP 501

Insertion loss: <0.2dB @1GHz
