MATCHMASTER ADAPTOR ‘F’ Female to KS Port : 18MM-KSFA
$18.16 inc GST
100 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

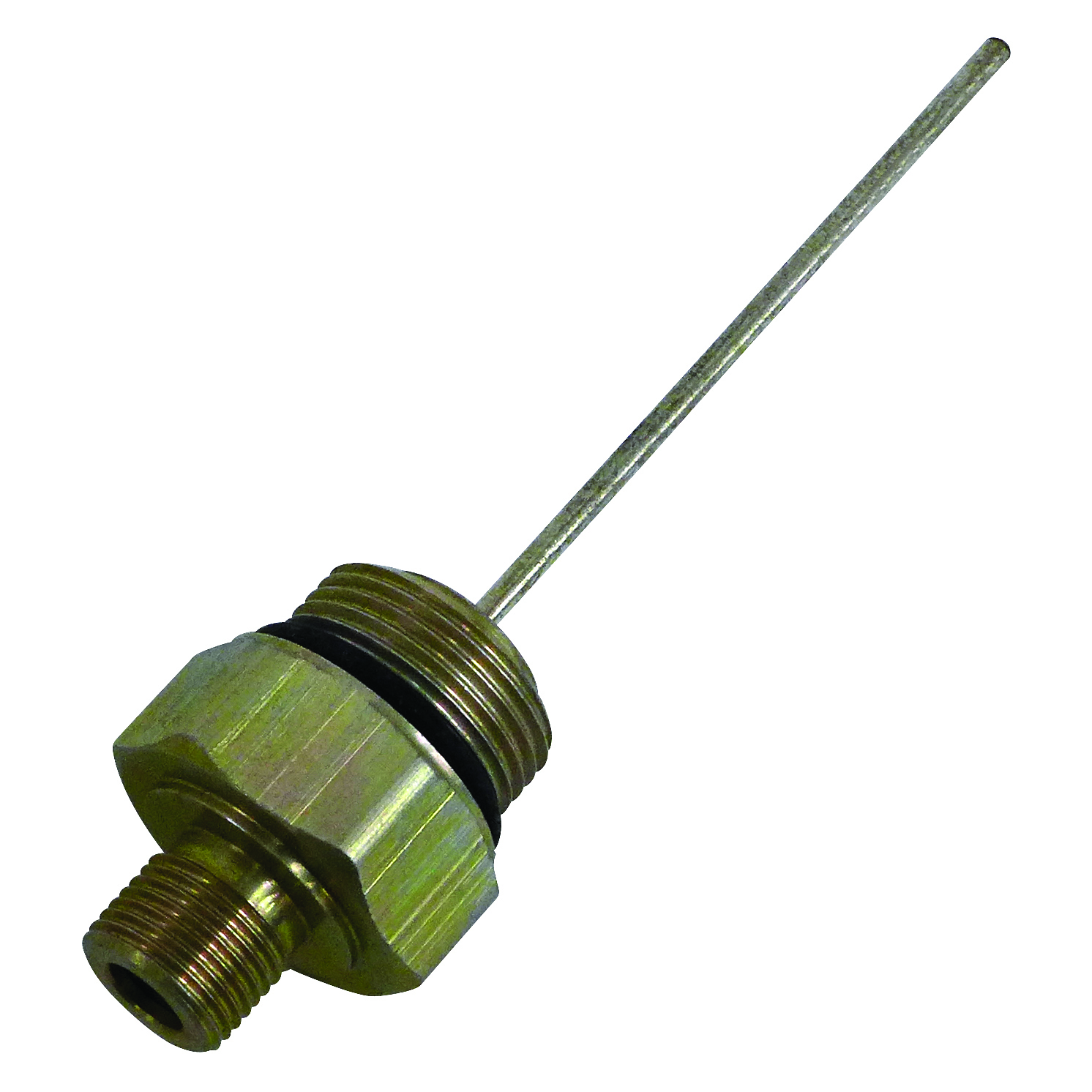

The 18MM-KSFA is an ‘F’ type to KS 5/8″ 75 Ohm adaptor used in CATV amplifier and tap/splitter housings to convert 5/8″ KS ports to an ‘F’ type fitting. The KSFA is made from 6262 aluminium and features a long stinger that can be trimmed to length at the point of installation. The connector also features an O-ring to make for a watertight connection.
Features and Benefits
5/8″ KS interface to ‘F’ type series female adaptor made from 6262 aluminium
Greater than 16dB return loss at 1GHz
Operating frequency range DC-1GHz
Used to adapt amplifier and CATV outdoor taps and splitters to ‘F’ type connections
75 Ohm impedance
Foxtel (F30163), Telstra (739/112) approved
Pack Quantity

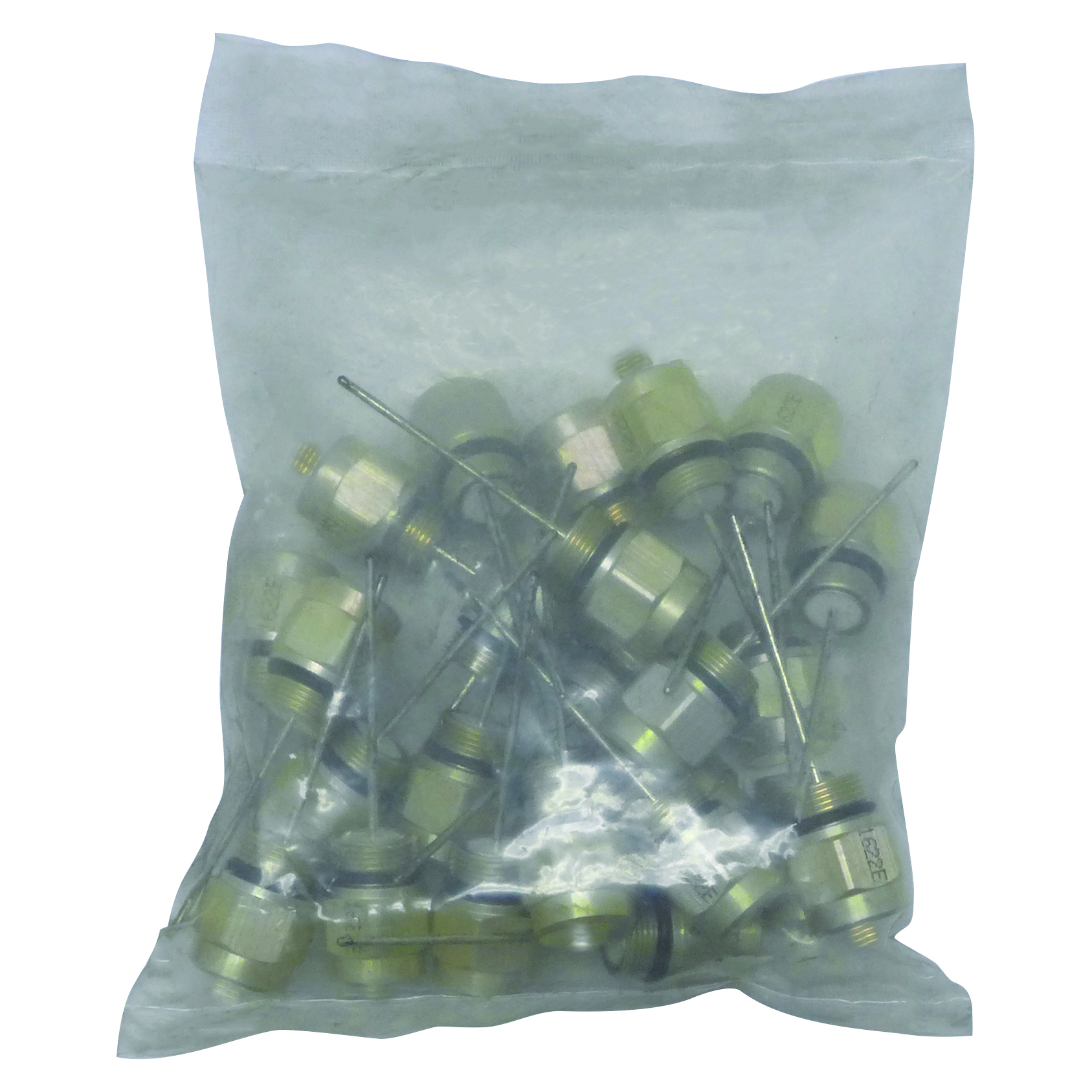

Inner: 1 bag of 25 pieces
Outer: 1 carton of 8 bags (200 pieces)
