MATCHMASTER TERRA AMP 41dB FWD GAIN 47-862MHz – NO RP : 14MM-BA214
$706.16 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

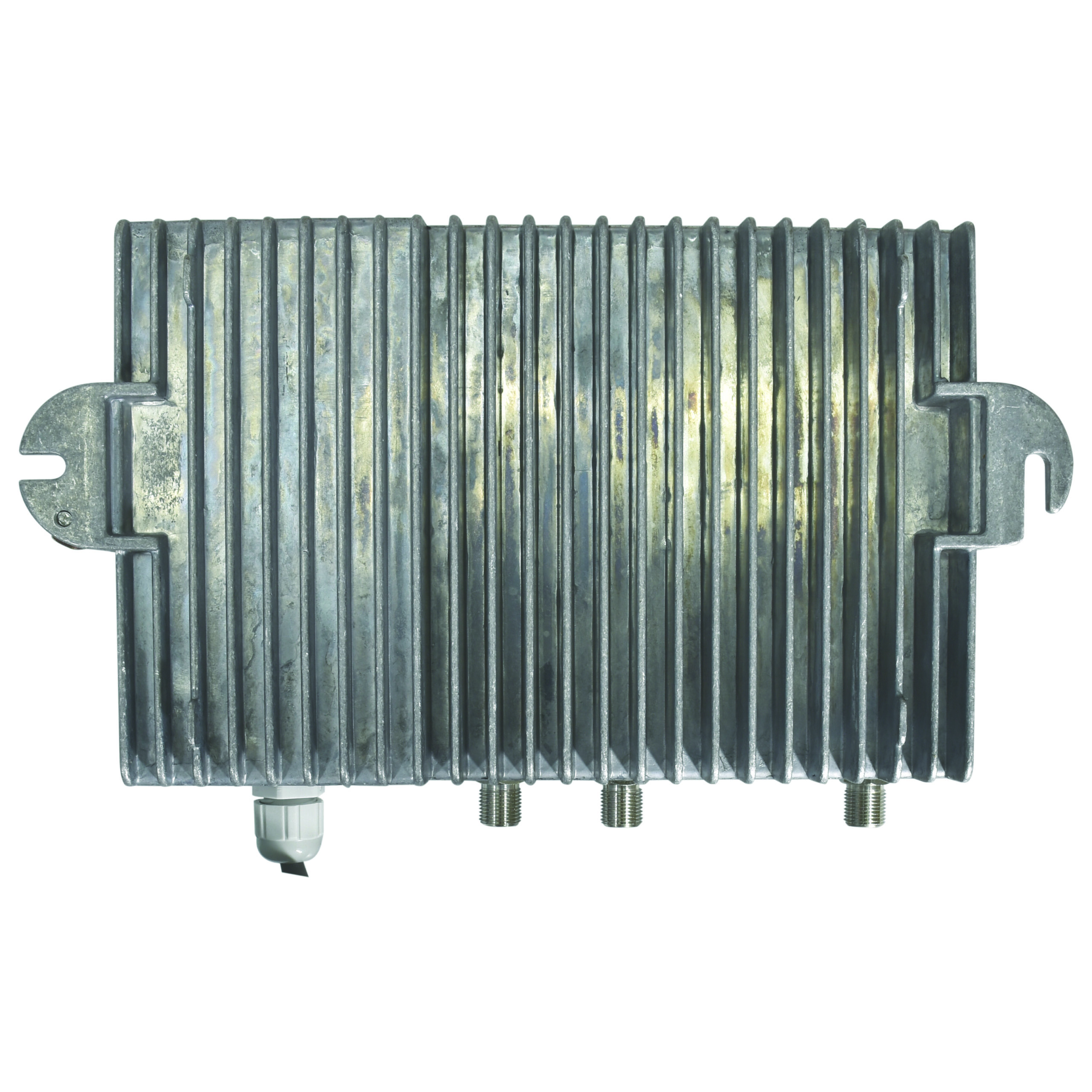

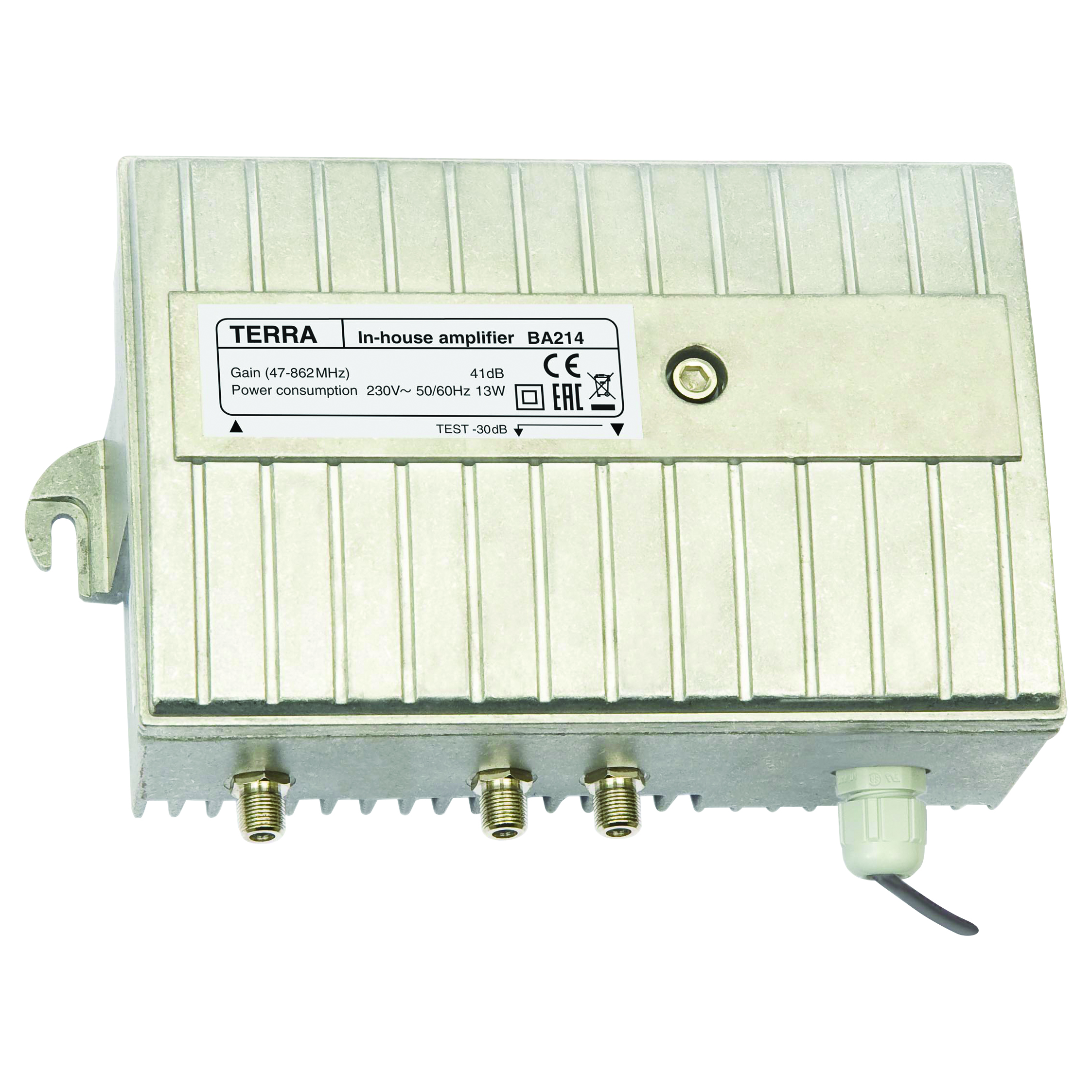

The BA214 is a 41dB gain locally powered distribution amplifier with a waterproof and RF-screened die-cast housing. The BA214 is perfect for use in harsh environments such as pedestals and other types of outdoor enclosures.
Features and Benefits
Downstream frequency range 47 to 862MHz with 41dB gain
GaAs push-pull output stage
Interstage attenuator, slope pre-correction and adjustable gain & slope regulators
Output level CTB, CSO (EN60728-3)* 115 dB?V (42 ch.)
18dB adjustment for both gain and slope
Operating temperature range 20 ? +50 degrees C
* measured with 6dB interstage equalizer
Additional information
| Type | |
|---|---|
| Brand |
