MATCHMASTER Z BRKT FOR VEHICLE BONNET/BOOT – MEDIUM WEIGHT : 56MM-LBV-MW

Description

Product Summary

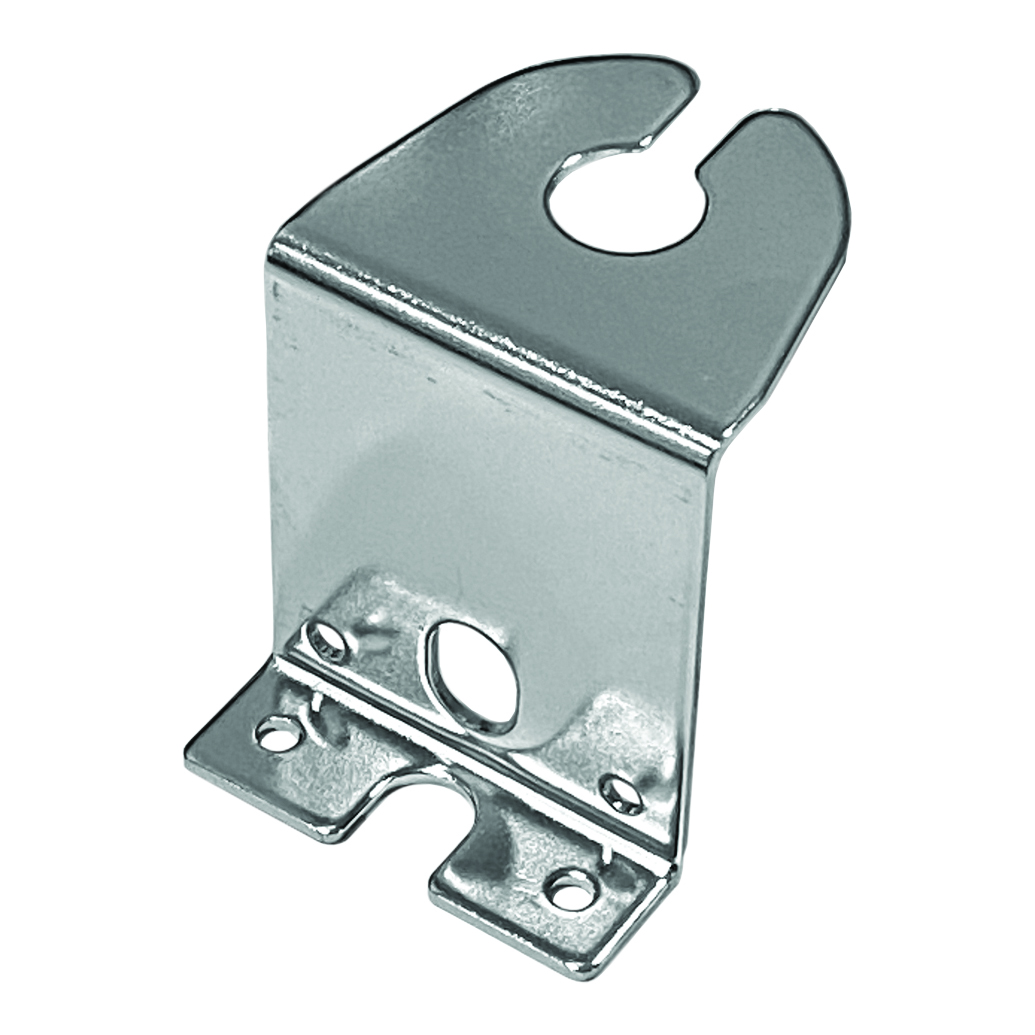

The 56MM-LBV-MW is a compact “Z” bracket for mounting UHF, VHF and cellular antennas to a vehicle’s bonnet or boot. Designed with marine grade polished stainless steel for corrosion resistance and medium weight antennas.

Features and Benefits

Stainless steel low profile mount for medium weight antennas to mount to either a vehicles bonnet or boot

2mm thick stainless steel to fit into the tightest gaps

16mm mounting hole with cable channel, five screw mounting points, and one slot point

Suitable for use with 56MM-4G01-M

Cost-effective mounting solution

Specifications

Mounting Holes: 4 x 4.6 ? 38mm C/C, 1 x 11 x 15mm slot vertical and 1 x 11 x 12mm slot horizontal

Antenna Mounting: 16mm

Material: Nom 2mm Polished Stainless Steel

Back Plate: 52mm (W) x 57mm (H)

Antenna Centre to Back: 26.5 mm

Cable Entry: 5.5mm Slot
