MATCHMASTER UHF PLUG – PL259 CLAMP RG213 : 56MM-U213
$19.00 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

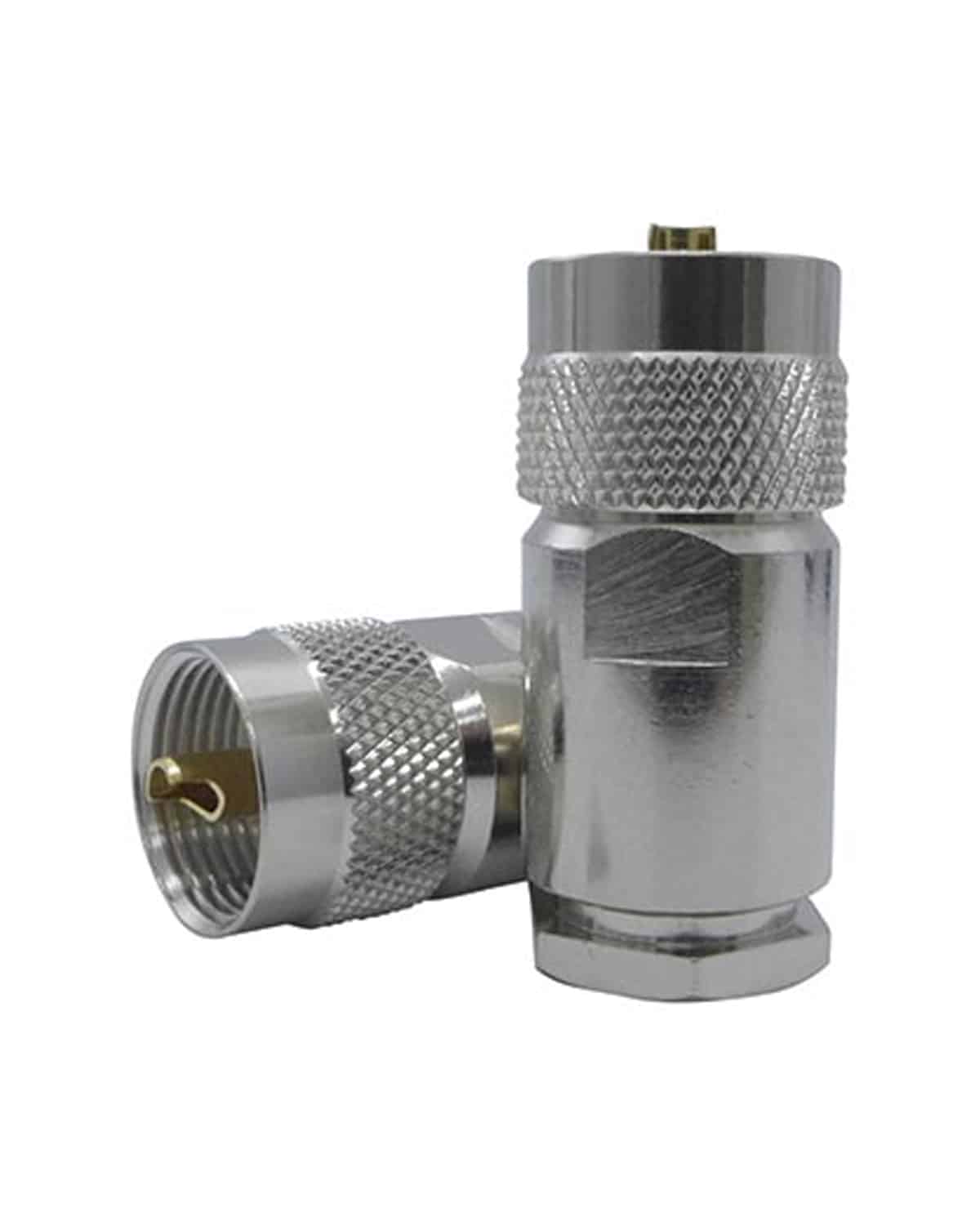

The U213 UHF PL-259 plug is a combination solder & clamp solder style. It is a quality Nickel plated product with Gold finish on the centre pin contact & also the soldering surface (inside of centre pin). Unlike silver-plated connectors, it has a high resistance to tarnishing.
Features and Benefits
For use with 10mm coaxial cables including RG213, LL-LMR400 and RG11A/U 75 Ohm
Impedance: 50Ω nominal
The shield screw thread connection conforms to the proper UHF PL-259 standard imperial thread
Nickel-plated brass body with gold plated brass centre pin
Suitable up to 520MHz
Teflon dielectric with silicon gasket
Pack Quantity
Inner: 1 bag of 1 piece
Helpful Tip: Bulk cartons prevent potential transit damage.
