MATCHMASTER SPINNER UHF LIGHTNING ARRESTOR 380-512MHZ : 56MM-SRG-SPN
$235.00 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

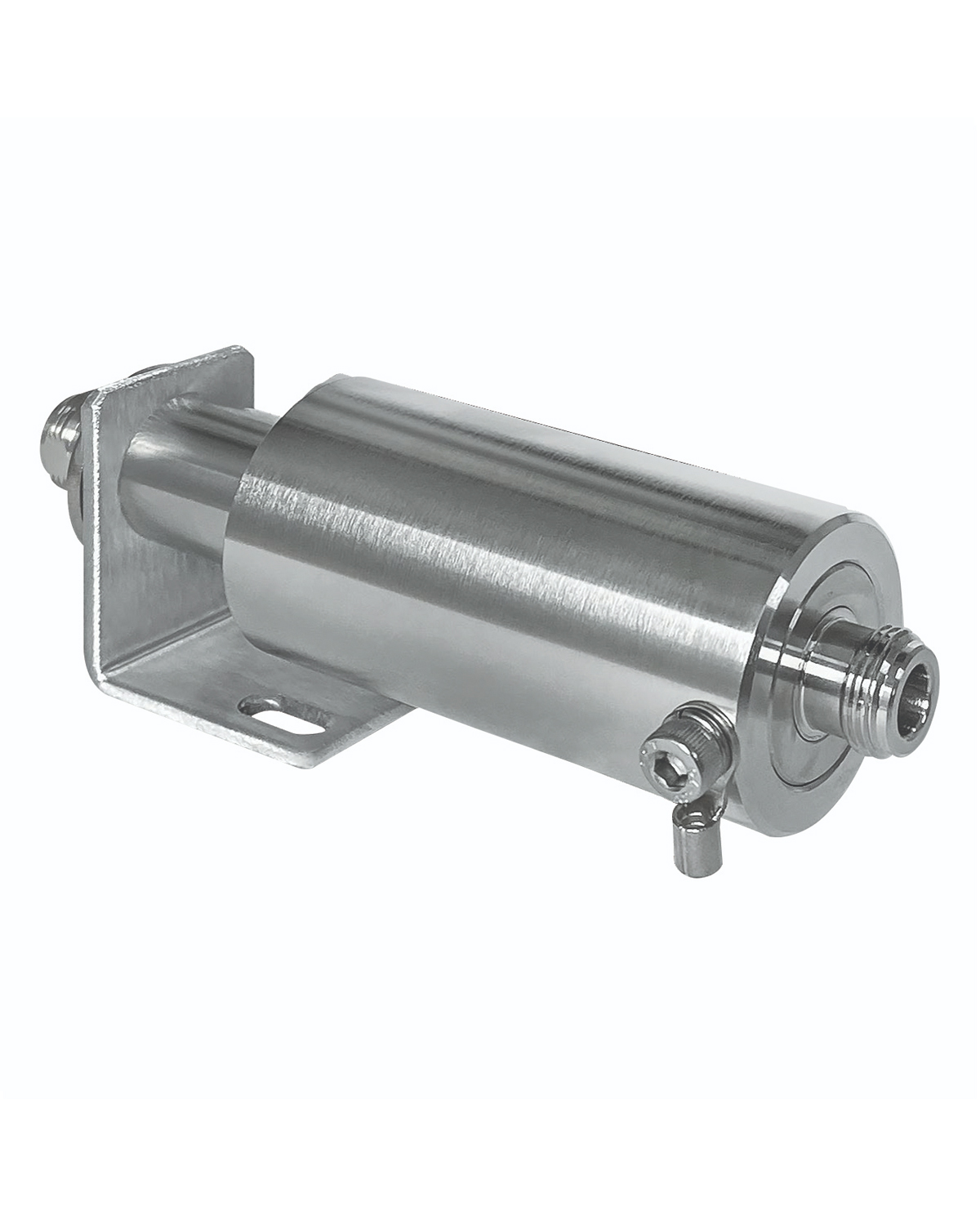

The SRG-SPN is a UHF N socket surge protector 380 – 512MHz with a quarter wavelength stub. Designed to help protect your valuable radio equipment from lightning strikes and surges.
Features and Benefits
Frequency range 380-512Mhz
800-watt maximum average power capacity
Insertion loss 0.1dB
Residual pulse energy 20 μj (test pulse 4 kV 1.2/50 μs and 2 kA 8/20 μs)
IP67 per EN 60529 (in mated condition)
Fixed adaptor, N-Female – N-Female
Specifications
Interface Type: N Socket (50 Ω) per IEC 61169-16
VSWR, Max.: 1.20 @ 380 to 430 MHz ; 1.22 @ 380 to 512 MHz
Frequency Range: 380 to 512 MHz
Insertion Loss, Max.: 0.1 dB
Average Power Capacity, Max.: 800 W
Allowed Surge Current: 50 kA multiple (test pulse 8/20 μs)
Residual Pulse Energy: 20 μj (test pulse 4 kV 1.2/50 μs and 2 kA 8/20 μs)
Inner Conductor Material / Surface Finish: Copper alloy / silver plated
Outer Conductor Material / Surface Finish: Copper alloy / silver plated
Other Metal Parts / Surface Finish: Copper alloy / bright nickel plated
Insulation: PTFE
Sealing: Silicone rubber
IP Protection Level: IP67 per EN 60529 (in mated condition)
Weight Approx: 400g
Operating Temperature Range: -45 ℃ to +75 ℃
