MATCHMASTER SMA PLUG LL400 SPRING FINGER : 56MM-SMA400SF
$33.00 inc GST
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
20 in stock
Description
Product Summary

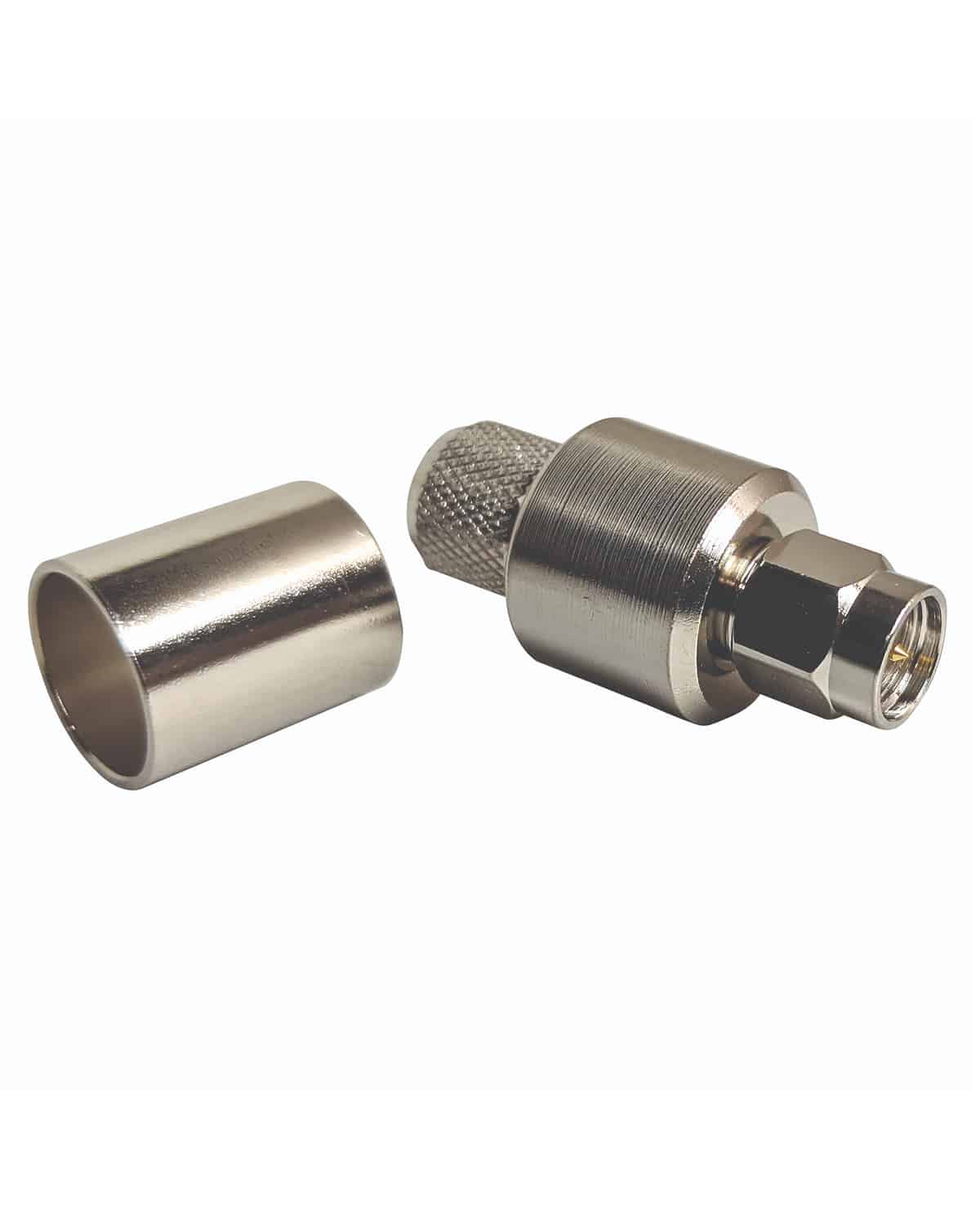

The SMA400SF SMA spring finger plug is a sub-miniature version A coaxial connector, crimp style 50Ω. It is a quality brass connector with Nickel plated finish, and Gold plated Beryllium Copper centre pin. It uses a PTFE dielectric.
Features and Benefits
For use with 10mm OD 50ohm LL-LMR400 coaxial cables
Impedance: 50Ω nominal
Nickel plated brass body with nickel plated crimp and gold plated spring finger beryllium copper centre pin, no solder
Suitable up to 12GHz
Designed for crimping using hex 10.7
Pack Quantity
Inner: 1 bag of 1 piece
Helpful Tip: Bulk cartons prevent potential transit damage.
