MATCHMASTER SMA PLUG CRIMP RG58 : 56MM-SMA58
$16.00 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Summary

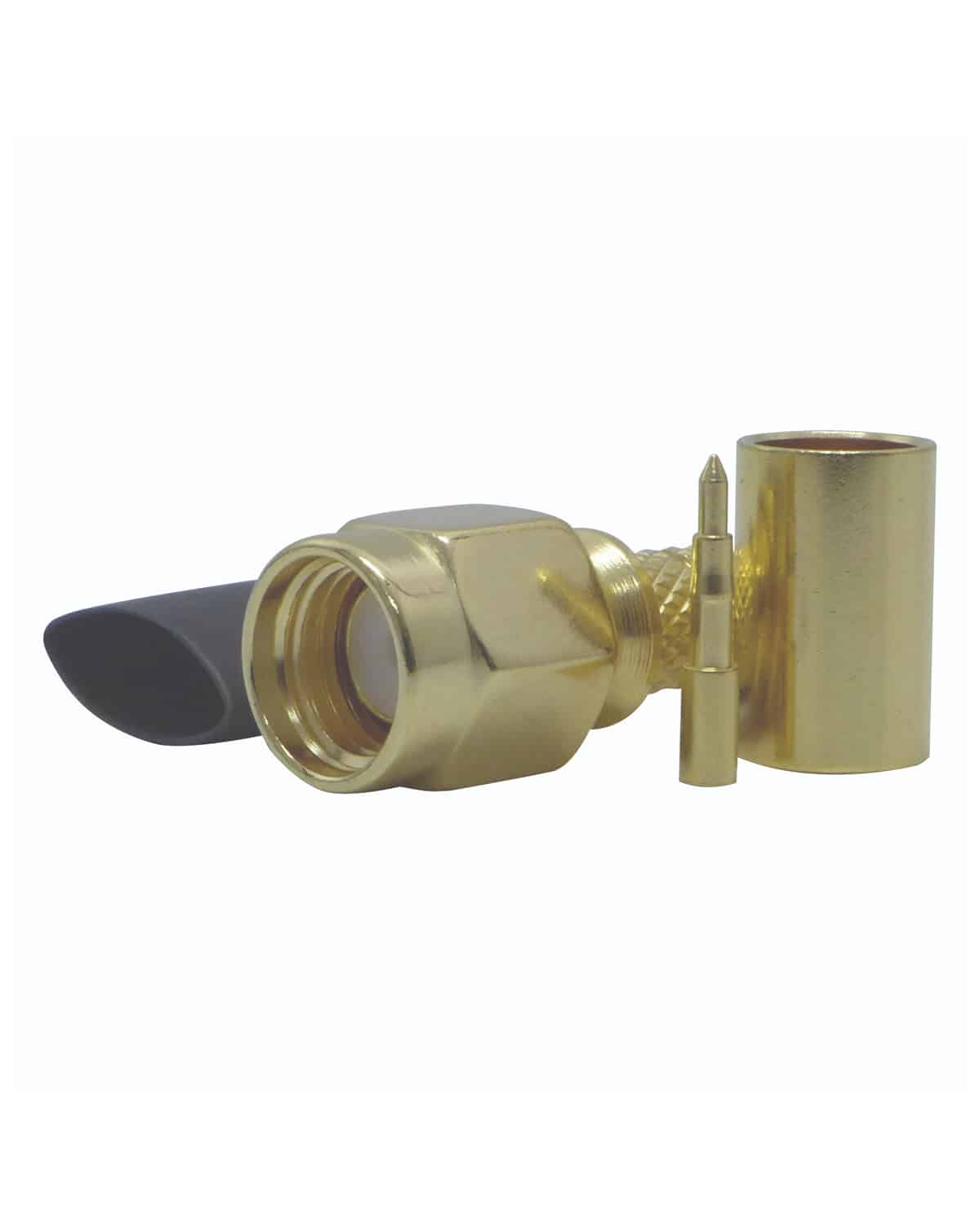

The SMA58 SMA plug is a sub-miniature version A coaxial connector, crimp style 50Ω. Quality Gold-plated brass body, Gold-plated Beryllium Copper centre pin, Nickel-plated crimp using a PTFE dielectric.
Features and Benefits
For use with 5mm OD 50ohm coaxial cables including RG58 and LL-LMR195
Impedance: 50Ω nominal
The shield screw thread connection conforms to the proper UHF PL-259 standard imperial thread
Gold plated brass body with nickel plated crimp and gold plated beryllium copper centre pin, solder
Suitable up to 12GHz
Designed for crimping using hex5.4
Pack Quantity
Inner: 1 bag of 1 piece
Helpful Tip: Bulk cartons prevent potential transit damage.
