MATCHMASTER SMA CRIMP SOCKET FOR RG58 AND LMR/LL195 CABLE : 56MM-SMA58F
$15.40 inc GST
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
20 in stock
Description
Product Summary

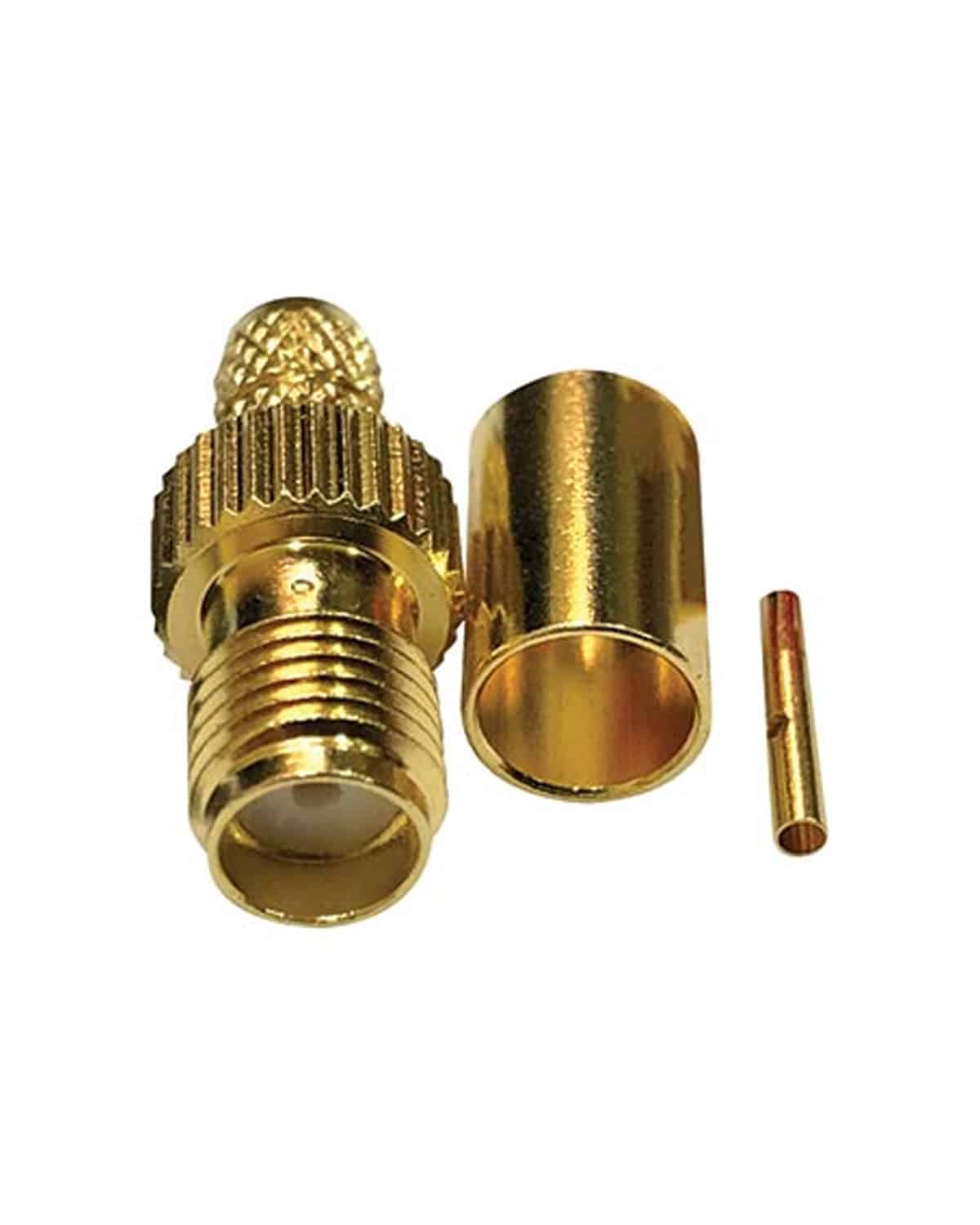

The SMA58F is a sub-miniature version A crimp style 50Ω SMA socket coaxial connector. This quality brass connector has a Gold plated finish, Gold plated centre pin and has a PTFE dielectric.
Features and Benefits
For use with 5mm OD 50ohm coaxial cables including RG58 and LL-LMR195
Impedance: 50Ω nominal
Reliable and robust screw-on SMA socket for linking cables
Gold plated brass connector with gold plated beryllium copper centre pin, solder style
Suitable up to 12GHz
Designed for crimping using hex5.4
Pack Quantity
Inner: 1 bag of 1 piece
Helpful Tip: Bulk cartons prevent potential transit damage.
