MATCHMASTER N-TYPE MALE TO SMA FEMALE ADAPTOR : 56MM-NM-SMAF
$22.77 inc GST
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
20 in stock
Description
Product Summary

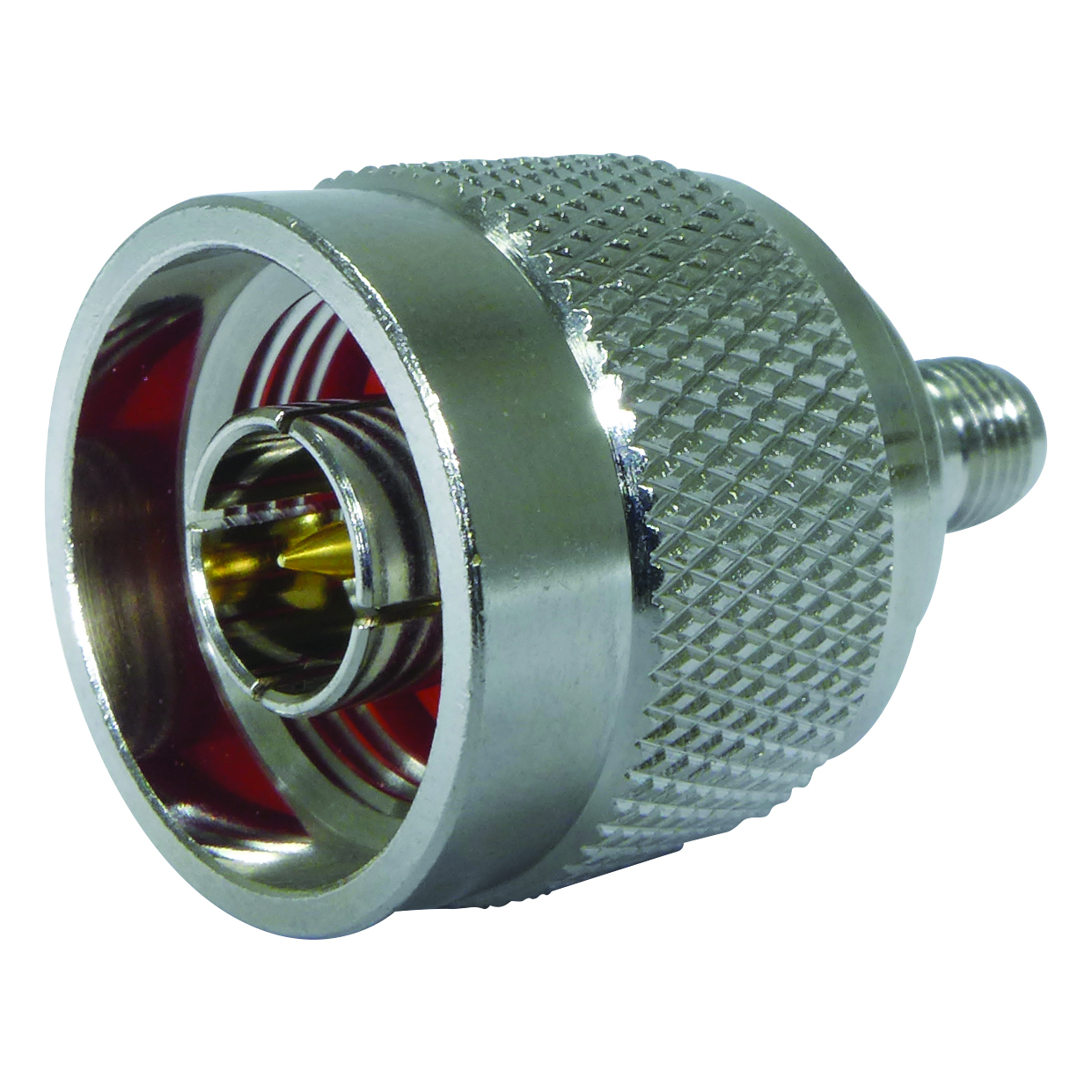

The NM-SMAF is an N-type male (Plug) to SMA Female (Socket) adaptor used to adapt between SMA and N-type equipment.
Features and Benefits
Used to join two cables together when adapting between SMA and N-type fittings
Centre pin gold plated
Standard 5/8-24 UNEF-2A thread
Frequency range to 4GHz (maximum)
Brass body with nickel plating
? 500 cycle durability
Specifications
Frequency Range: 4 GHz (Maximum)
Impedance: 50 ?
Dielectric Withstanding Voltage: 1500V (RMS)
Temperature Range: -40?C to +85?C
Insulation Resistance: ? 5000M?
Mating: 5/8-24UNEF-2A
Durability: ? 500 cycle
